Single Gang Surface Mount Box with 2x Ethernet Bulkhead Knockouts Waterproof IP68 Rated - White
Single Gang Surface Mount Box with 2x Ethernet Bulkhead Knockouts Waterproof IP68 Rated - White
Single Gang Surface Mount Box with 2x Ethernet Bulkhead Knockouts Waterproof IP68 Rated - White
Single Gang Surface Mount Box with 2x Ethernet Bulkhead Knockouts Waterproof IP68 Rated - White

Single Gang Surface Mount Box with 2x Ethernet Bulkhead Knockouts - Waterproof IP68 Rated - White

Outdoor IP68 Rated AccessoriesSKU: SB-EBH2-WH
Price:
$11.33 USD
Stock:
In stock

Description

Overview

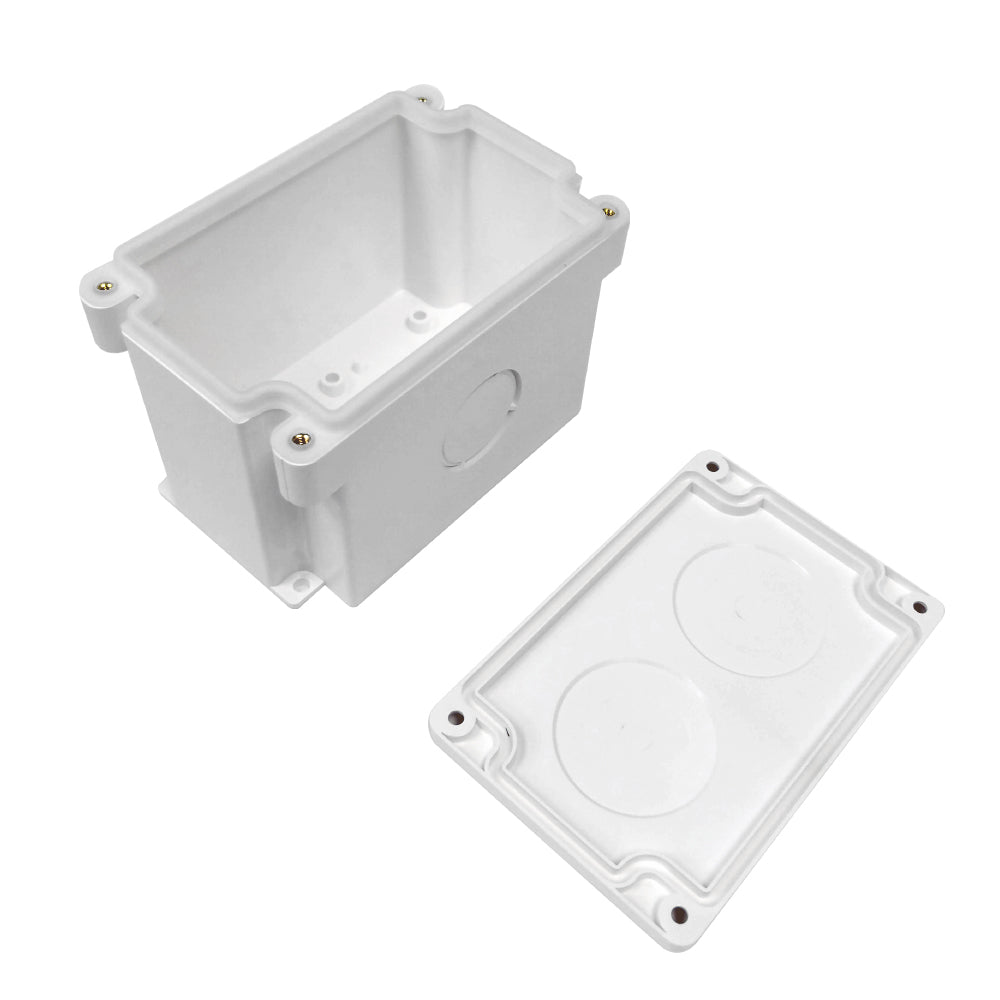

This waterproof single gang surface mounting box can accept up to two RJ45 bulkhead couplers. It is typically used to house bulkhead jacks and couplers and can be mounted on a wall where dust, water and protection from the elements is required. It is IP68 rated and is suitable for outdoor or industrial applications.

Physical Characteristics
Color White
Size Single Gang
Housing Material Polycarbonate Resin High-Impact UL94V-0 Thermoplastic
Gasket Rubber
Knockout Holes
 2x Ethernet Bulkhead
1x M32 Conduit Gland
2x M16 Cable Gland
Operating Temperature -10℃ to 60℃
Storage Temperature -40℃ to 68℃
Humidity 10% ~ 90% RH
Connectors
Ethernet Bulkhead Hole 2
Compatible Items
CN-C5E-FFS-IP68 Cat5e RJ45 Female to RJ45 Female Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black
CN-C6-FFS-IP68 Cat6 RJ45 Female to RJ45 Female Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black
CN-C6A-FFS-IP68 Cat6A RJ45 Female to RJ45 Female Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black
JK-C5P-SBK-IP68 Cat5e RJ45 Female to 110 Punch Down Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black
JK-C6P-SBK-IP68 Cat6 RJ45 Female to 110 Punch Down Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black
Environmental
IP Rating IP68Rated
RoHS Yes
Packaging Information
Product Weight 0.41 lbs [0.18 kg]
Included in Package

1 - Surface Box
8 - Screws
4 - Screw Caps
SKU Weight
SB-EBH2-WH 0.41 lb
