Description
Overview

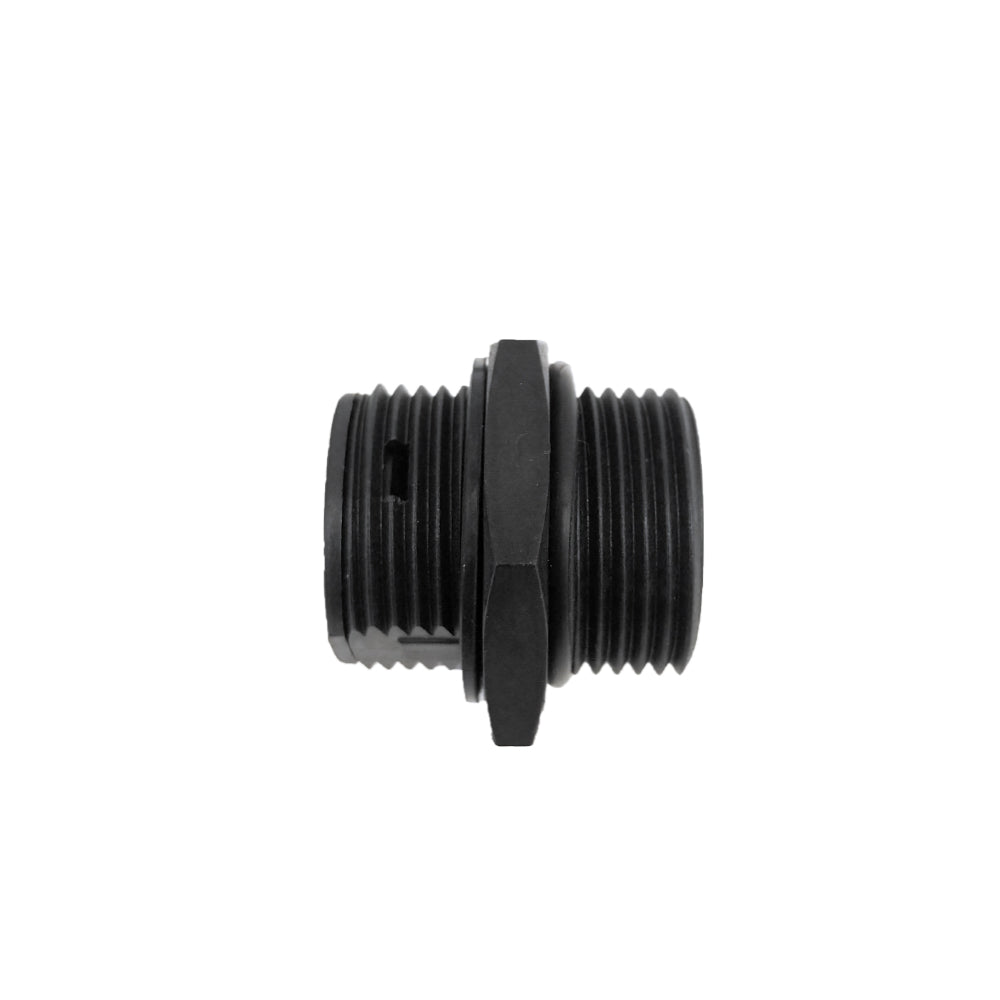

This Cat5e shielded bulkhead coupler consists of a RJ45 female on both ends. It is typically used to connect two RJ45 male outdoor network cables where dust, water and protection from the elements is required. Creates a IP68 rating when used in conjunction with our matting RJ45male shroud. It is suitable for outdoor or industrial applications.
|
Waterproof RJ45 Bulkhead Coupler for Outdoor CableThis Cat5e
coupler is IP68 compliant to help protect your outdoor network cabling against
water, moisture, dirt and insects for uninterrupted and quality
connections. Waterproof when immersed in water at a depth of 4 meter.
Use as Part of a Complete KitThis
coupler can be used as part of a complete kit to create an end-to-end IP rated
channel.
|
Specifications
| Physical Characteristics | ||
|---|---|---|
| Color | Black | |
| Body Material | PBT+GF,UL94V-0 | |
| Coupler Housing | ABS,UL94V-0 | |
| Connector Plating | Gold Plated | |
| Shielded Case | Brass, Nickel Plated | |
| Thread Pattern |
3/4"ļæ½-14 |
|
| Operating Temperature | -10ā to 60ā | |
| Storage Temperature | -40ā to 68ā | |
| Humidity | 10% ~ 90% RH | |
| Connector(s) | ||
| RJ45 - 8P8C | Female to Female | |
| Performance | ||
| Insertion Life | 750 Mating Cycles | |
| Contact Force | 100 Grams | |
| Plug Retention Force | 11 LBF MIN | |
| Electrical Features | ||
| Insulation Resistance | 500 M? | |
| Dielectric Withstanding Voltage | 1000 V AC | |
| DC Current Rating | 1.5 Amps | |
| DC Resistance | 0.1? | |
| Contact Resistance | 20m? | |
| Compatible Items | ||
| SB-EBH2-WH | Single Gang Surface Mount Box with 2x Ethernet Bulkhead Knockouts - Waterproof IP68 Rated - White | |
| WP-EBH1-SS | Single Gang Wall Plate - 1x Ethernet Bulkhead Hole - IP44 Rated - Stainless Steel | |
| WP-EBH2-SS | Single Gang Wall Plate - 2x Ethernet Bulkhead Hole - IP44 Rated - Stainless Steel | |
| WP-EBH4-SS | Double Gang Wall Plate - 4x Ethernet Bulkhead Hole - IP44 Rated - Stainless Steel | |
| CN-BT-IP68-BK | RJ45 IP68 Waterproof Shroud for RJ45 Male Cable - Fits Cable OD of 5mm to 10mm - Black | |
| Environmental | ||
| IP Rating | IP68Rated When Used in Conjunction with RJ45 shroud | |
| RoHS | Yes | |
| Packaging Information | ||
| Product Weight | 0.07 lbs [0.03 kg] | |
Product Weights
| SKU | Weight | |
| CN-C5E-FFS-IP68 | 0.07 lb |
