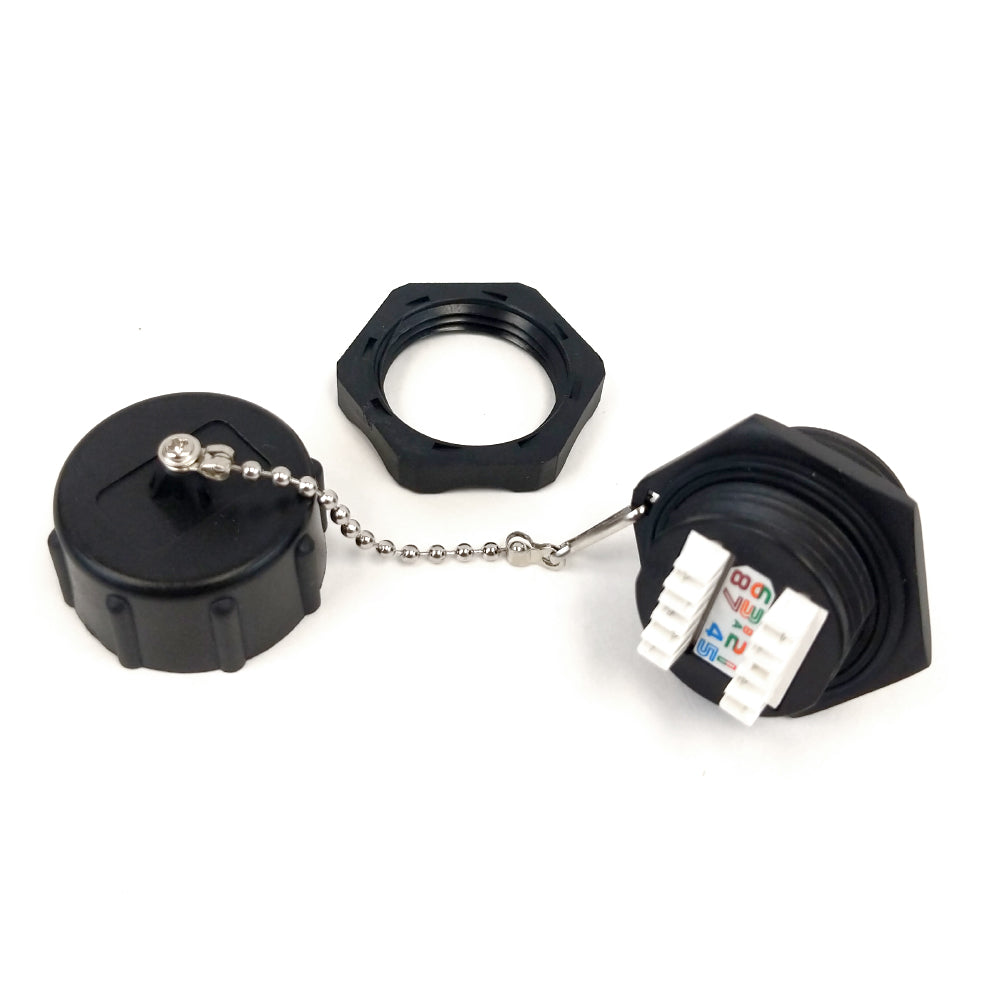

Cat5e RJ45 Female to 110 Punch Down Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black

Outdoor IP68 Rated AccessoriesSKU: JK-C5P-SBK-IP68
Price:
$14.81 USD
Stock:
In stock

Description

Overview

This Cat5e shielded bulkhead coupler consists of a RJ45 female on one end and a standard 110 punch down on the other end. It is typically used to connect a RJ45 male outdoor network cable where dust, water and protection from the elements is required. Creates a IP68 rating when used in conjunction with our matting RJ45 male shroud. It is suitable for outdoor or industrial applications.
Physical Characteristics
Color Black
Body Material PBT+GF,UL94V-0
Jack Housing PC,UL94V-0
Connector Plating Gold Plated
Shielded Case Brass, Nickel Plated
Thread Pattern
 ¾"-14
Operating Temperature -10℃ to 60℃
Storage Temperature -40℃ to 68℃
Humidity 10% ~ 90% RH
Connector(s)
RJ45 Cat5e Female
Standard 110 Terminate
Performance
Insertion Life 750 Mating Cycles
Contact Force 100 Grams
Plug Retention Force 11 LBF MIN
Durability 200 Termination Cycles
Contact Compatibility Accommodates 22 to 24 AWG Solid
Electrical Features
Insulation Resistance 500 M٦
Dielectric Withstanding Voltage 1000 V AC
DC Current Rating 1.5 Amps
DC Resistance 0.1Ω¦
Contact Resistance 20m٦
Compatible Items
SB-EBH2-WH Single Gang Surface Mount Box with 2x Ethernet Bulkhead Knockouts - Waterproof IP68 Rated - White
WP-EBH1-SS Single Gang Wall Plate - 1x Ethernet Bulkhead Hole - IP44 Rated - Stainless Steel
WP-EBH2-SS Single Gang Wall Plate - 2x Ethernet Bulkhead Hole - IP44 Rated - Stainless Steel
WP-EBH4-SS Double Gang Wall Plate - 4x Ethernet Bulkhead Hole - IP44 Rated - Stainless Steel
CN-BT-IP68-BK RJ45 IP68 Waterproof Shroud for RJ45 Male Cable - Fits Cable OD of 5mm to 10mm - Black
Environmental
IP Rating IP68Rated When Used in Conjunction with RJ45 shroud
RoHS Yes
Packaging Information
Product Weight 0.07 lbs [0.03 kg]
SKU Weight
JK-C5P-SBK-IP68 0.07 lb
