Description

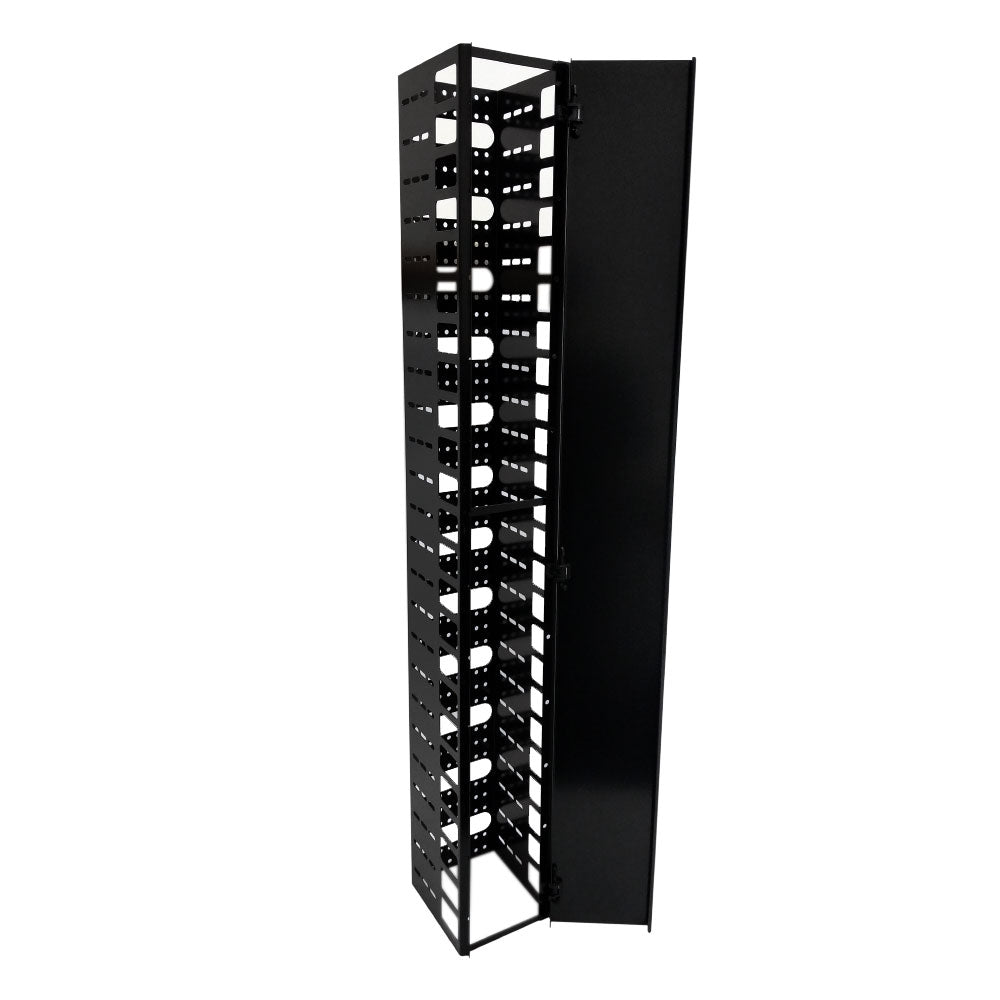

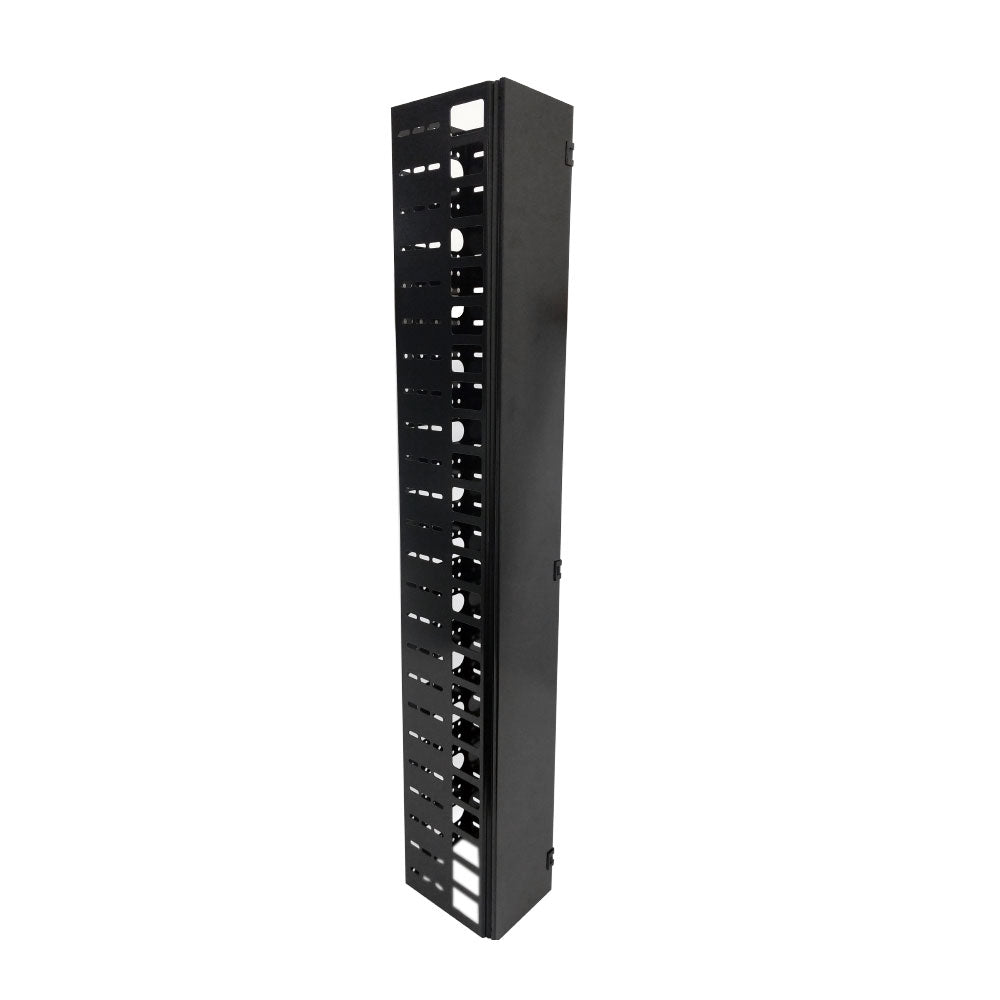

This vertical cable manager is 42.55 inches in height and intended for use with 26U relay racks. It is used to organize cables on a relay rack which helps maintain proper airflow. Forward facing and equipped with a hinged front cover, it makes cable access quick and easy. The manager can also be used as a link for joining multiple relay racks together.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Cable Management Type | Duct |
| Finish | Powder Coated |
| Material | 1.5 mm Thick Steel |
| Height in Units | 26U |
| Height | 42.55 inches [1080mm] |
| Width | 5.39 inches [137mm] |
| Depth | 6.88 inches [175mm] |
| Mounting Hardware | Included |
| Compatibility | |
| Compatible Racks |
RM-100 - Relay Rack 29U (56 inch) - Knock Down Style RM-110 - 2-Post Relay Rack - 19 inch 29U, 10-32 Tapped Rails RM-130 - Four Post Relay Rack - 19 inch 26U, Square hole, Depth 24-36 inch |
| Approvals | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 11 lbs |
| Box Dimensions in Inches | 44 x 6.6 x 7.8 |
Spec Sheets
Product Weights
| SKU | Weight | |
| RM-455-26U | 11.0 lb |
