Description

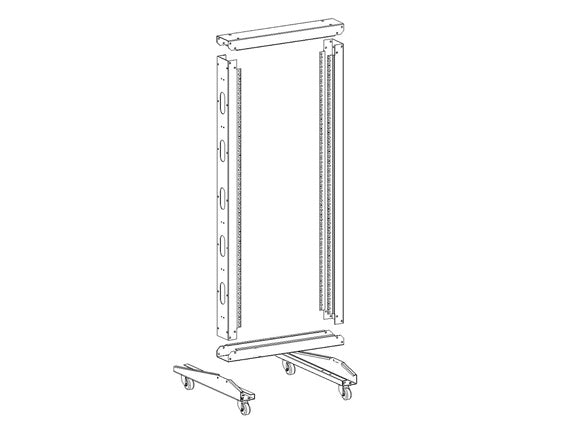

This 2-post relay rack is 19 inches wide, and 29U in height. It is typically used to mount networking and audio/video rack mountable equipment. Shipped knockdown in a flat-pack for easy handling and shipping.
| Physical Characteristics | |
|---|---|
| Color | Black - Powder Coated |
| Material | SPCC Cold Rolled Steel |
| Loading Capacity | Maximum 300kg |
| Mounting Rails | 2 x 19"-Mounting Rail Posts (square hole knockouts on both sides) |
| Mounting Rail Thickness | 1.9mm |
| Product Dimensions |
23"W 23"D 56"H [58W 58D 142H cm] |
| Compatibility | |
| Compatible Vertical Cable Managers |
RM-450-29U - Vertical Cable Manager for Relay Rack - 29U RM-455-26U - 26U Vertical Cable Manager - Front Facing |
| Approvals | |
| ANSI/EIA | Yes |
| RS-310-D | Yes |
| IEC60297-2 | Yes |
| DIN41494 | Yes |
| PART1 | Yes |
| PART7 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 - Relay Rack 29U (56 inch) - Knock Down Style (Unassembled) |
| 4 - Casters (use of casters is optional) | |
| 20 - M6 Screws and Cage Nuts | |
| Assembly Equipment | |
| Product Weight | 37.4 lbs [17.0kg] |
Spec Sheets
Product Weights
| SKU | Weight | |
| RM-100 | 40.0 lb |
