Description

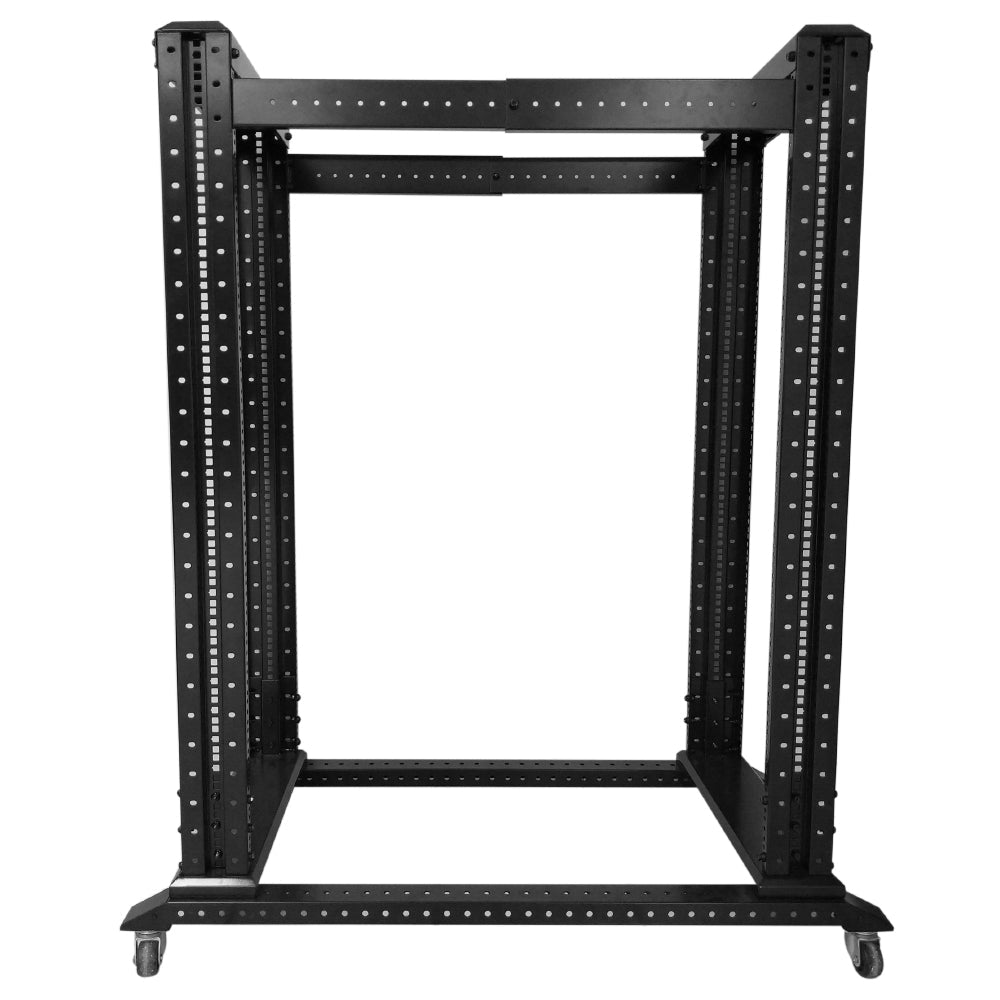

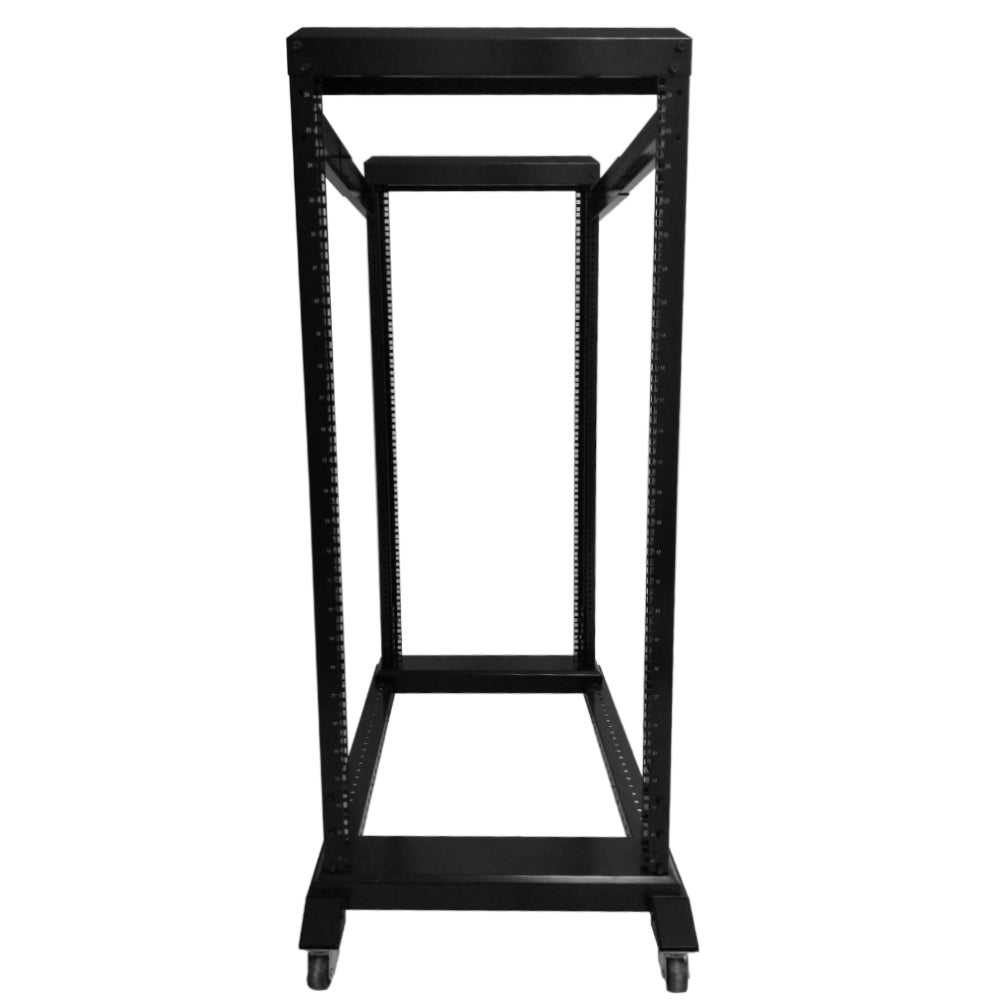

This 4-post relay rack is 19 inches wide, 26U in height and can be adjusted from 23 to 36 inches in depth. It is typically used to mount networking and audio/video rack mountable equipment.
| Physical Characteristics | |
|---|---|
| Color | Black - Powder Coated |
| Material | SPCC Cold Rolled Steel |
| Loading Capacity | Maximum 800kg |

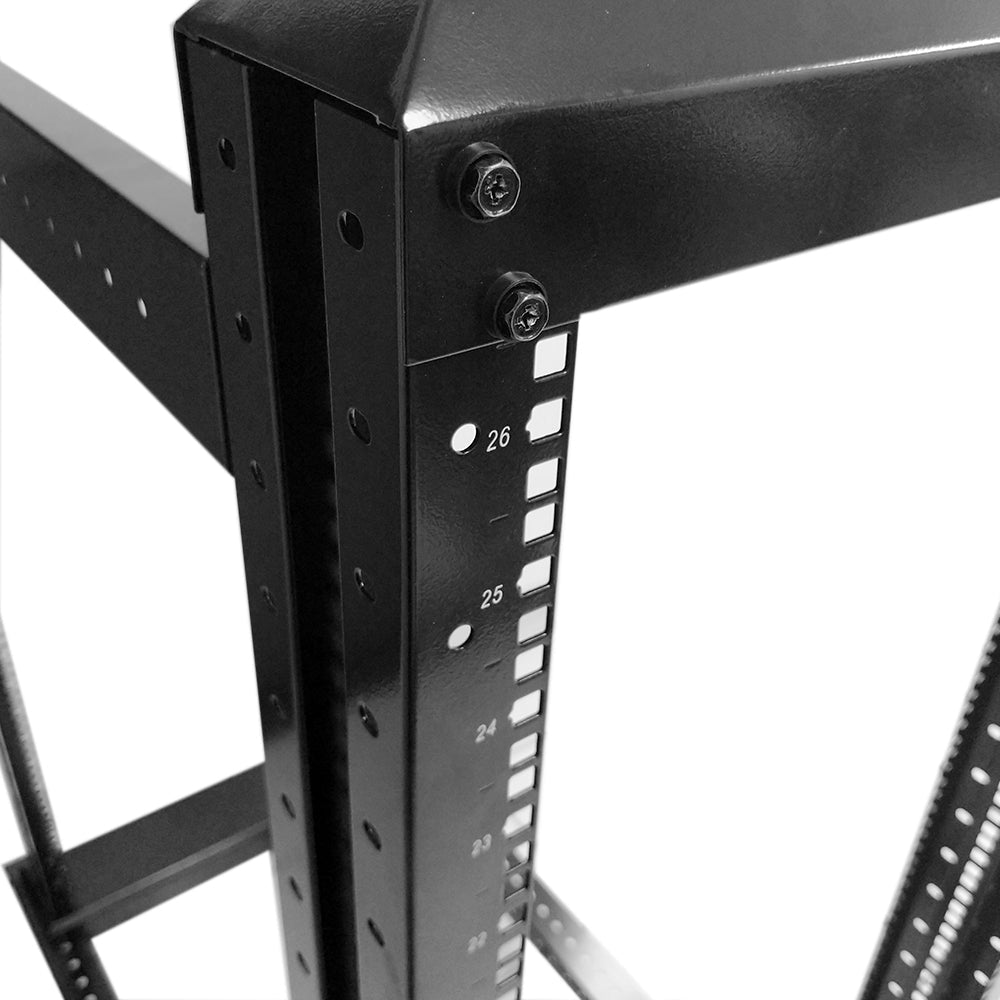

| Mounting Rails | 2 Pairs of Square Hole Rails |
| Mounting Rail Thickness | 1.7mm |

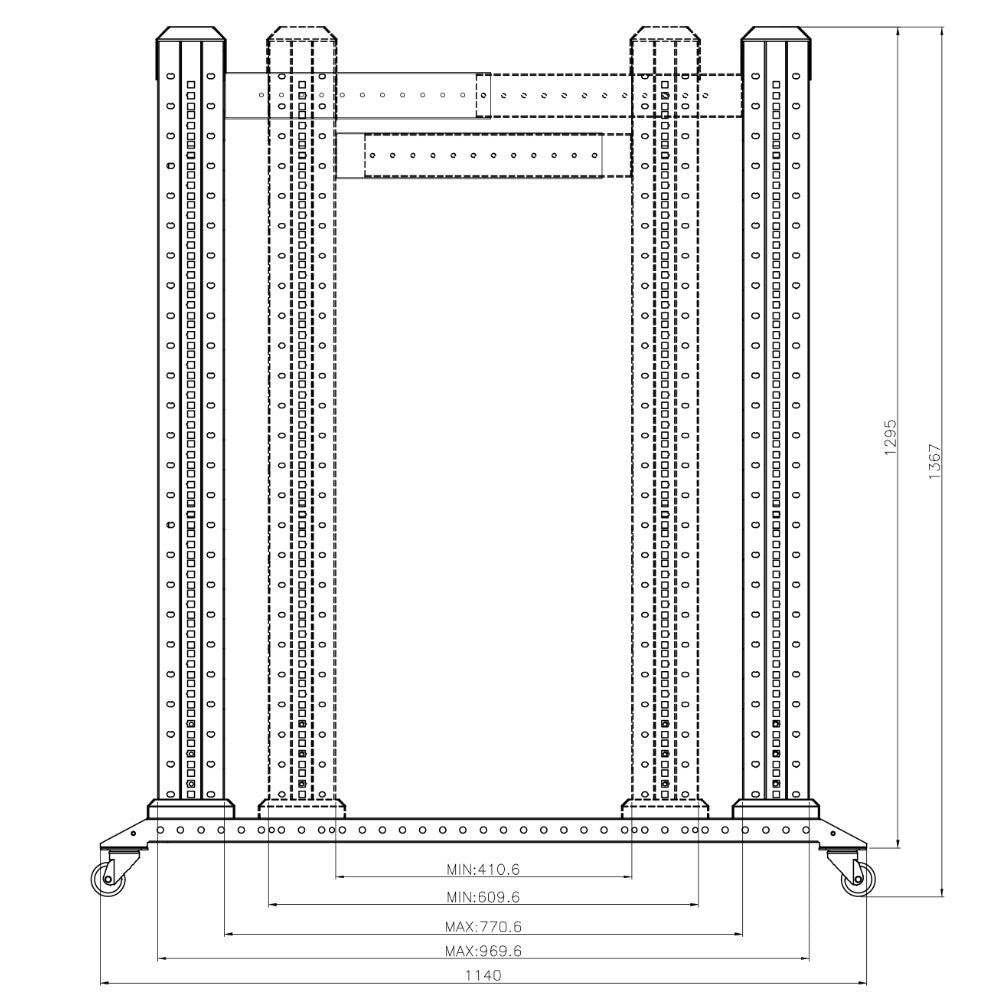

| Product Dimensions |
45.5 H, 23.6 W, Adjustable Depth from 24 to 36 inches [115 H, 60 W, 59 - 90 D cm] |
| Usable Mounting Dimensions |
26UH, 19" Wide, Adjustable Depth from 24 to 36 inches |

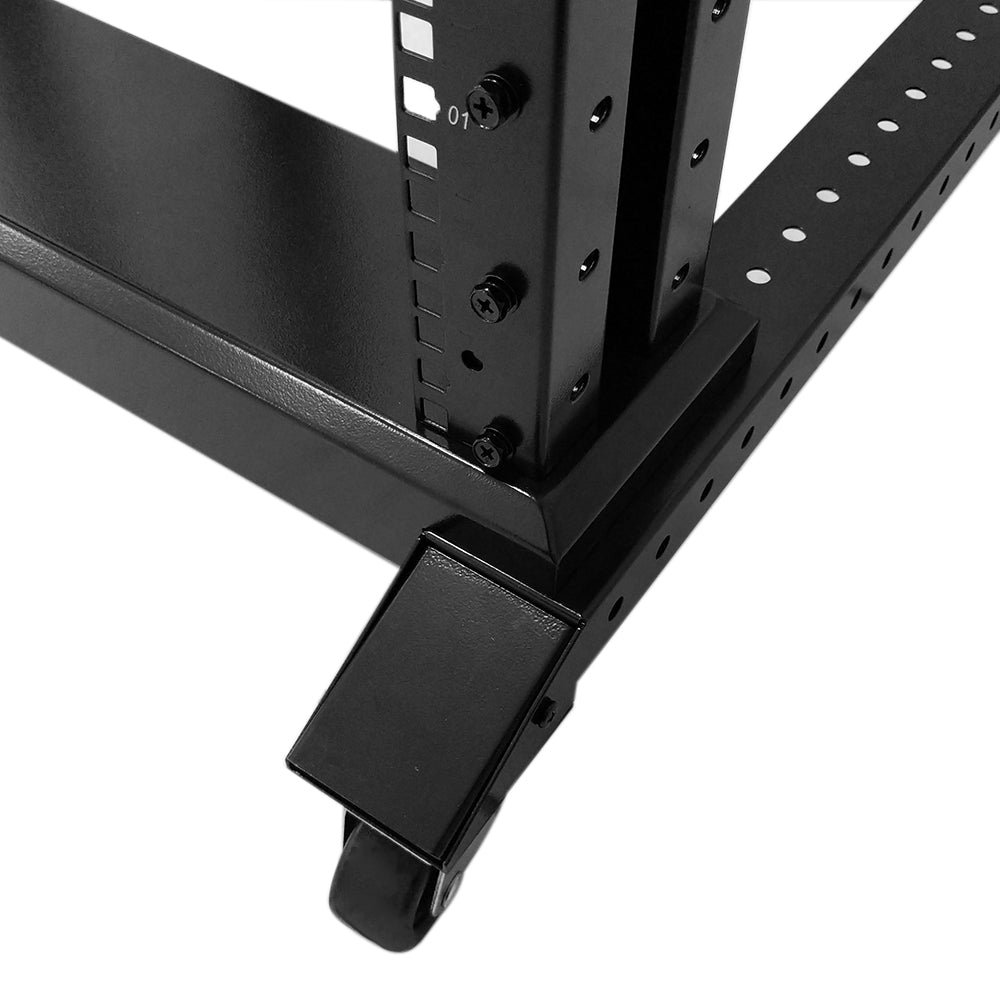

| Casters | Included - Optional Use |
| Compatibility | |
| Compatible Vertical Cable Managers |
RM-450-24U - Vertical Cable Manager for Relay Rack - 24U RM-455-26U - 26U Vertical Cable Manager - Front Facing |
| Approvals | |
| ANSI/EIA | Yes |
| RS-310-D | Yes |
| IEC60297-2 | Yes |
| DIN41494 | Yes |
| PART1 | Yes |
| PART7 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 - 4-post Relay Rack - 19in 26U (Unassembled) |
| 20 - M6 Screws and Cage Nuts | |
| Assembly Hardware |
|
| Product Weight | 66 lbs [30 kg] |
Ā
Spec Sheets
Product Weights
| SKU | Weight | |
| RM-130 | 66.0 lb |
