Description
Overview

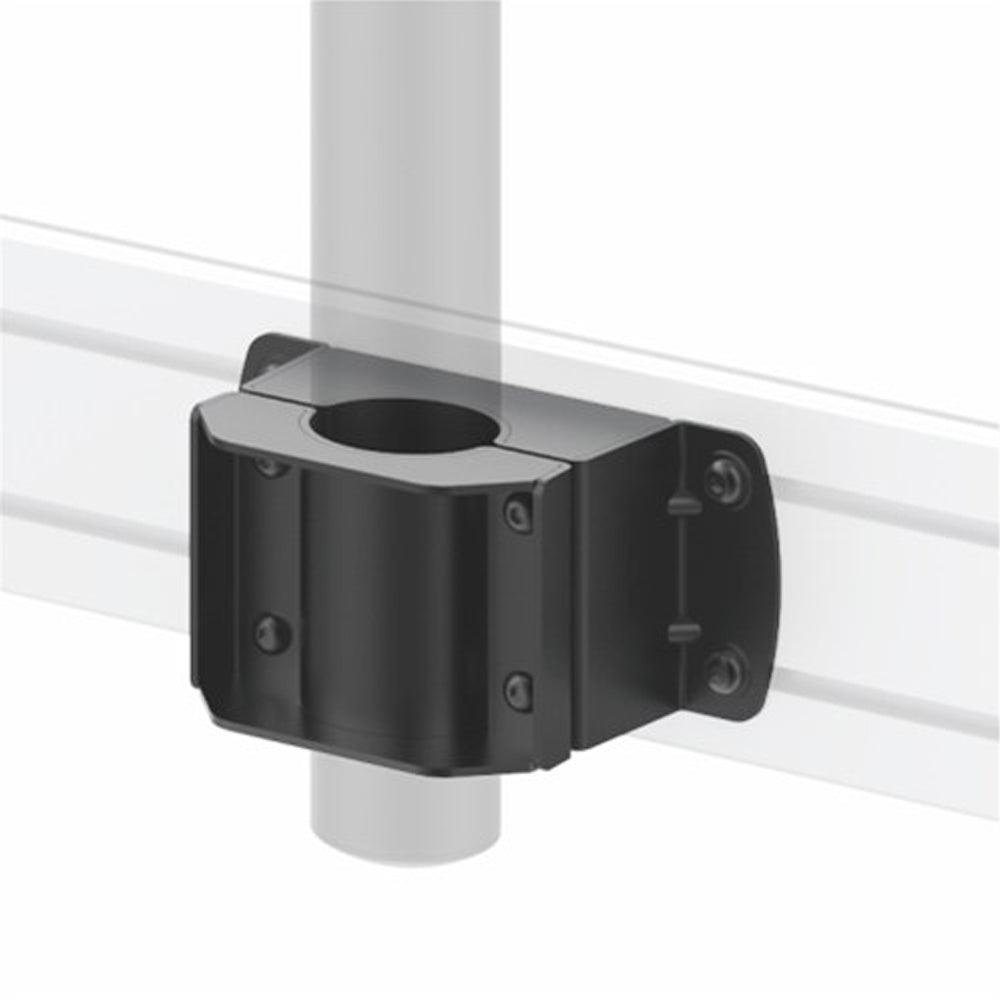

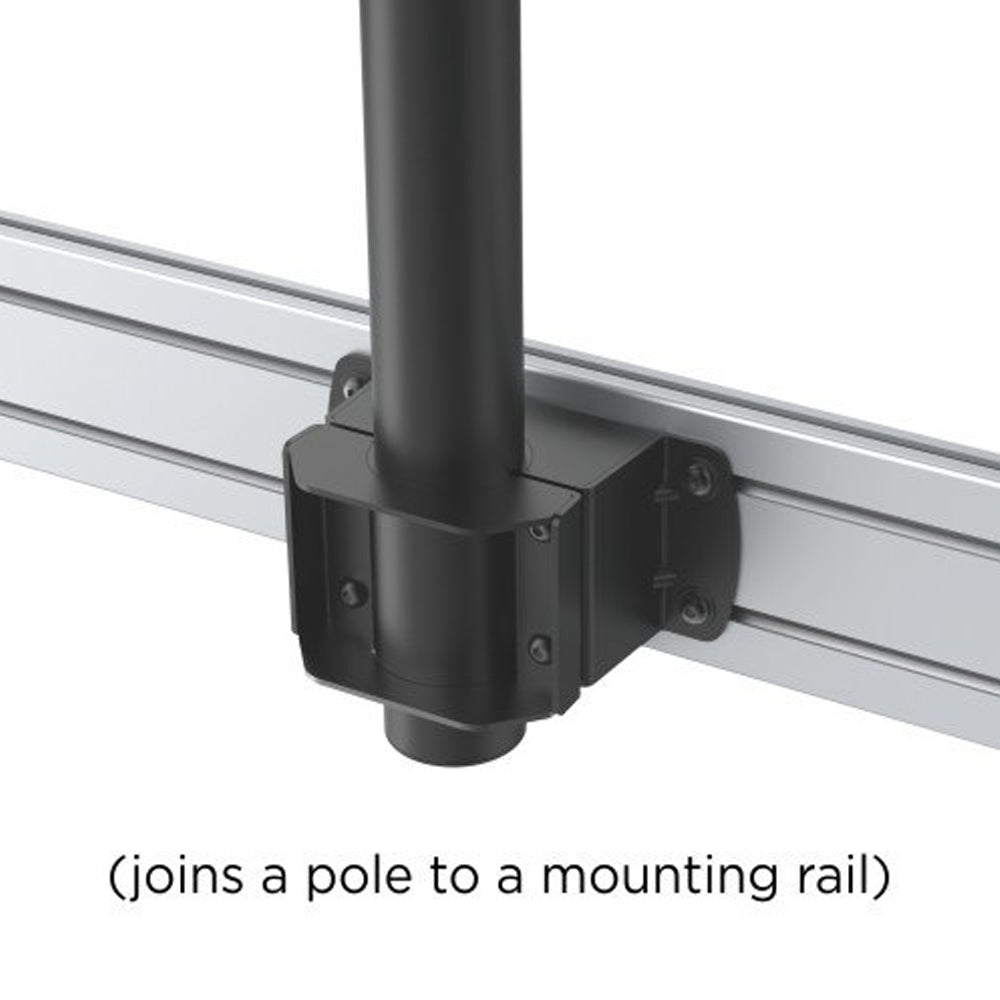

These collars join the connecting poles to the mounting rails.
Features
Installation
Specifications
| Physical Characteristics | |
|---|---|
| Color | Durable Powder-Coated Black Finish |
| Material | Steel |

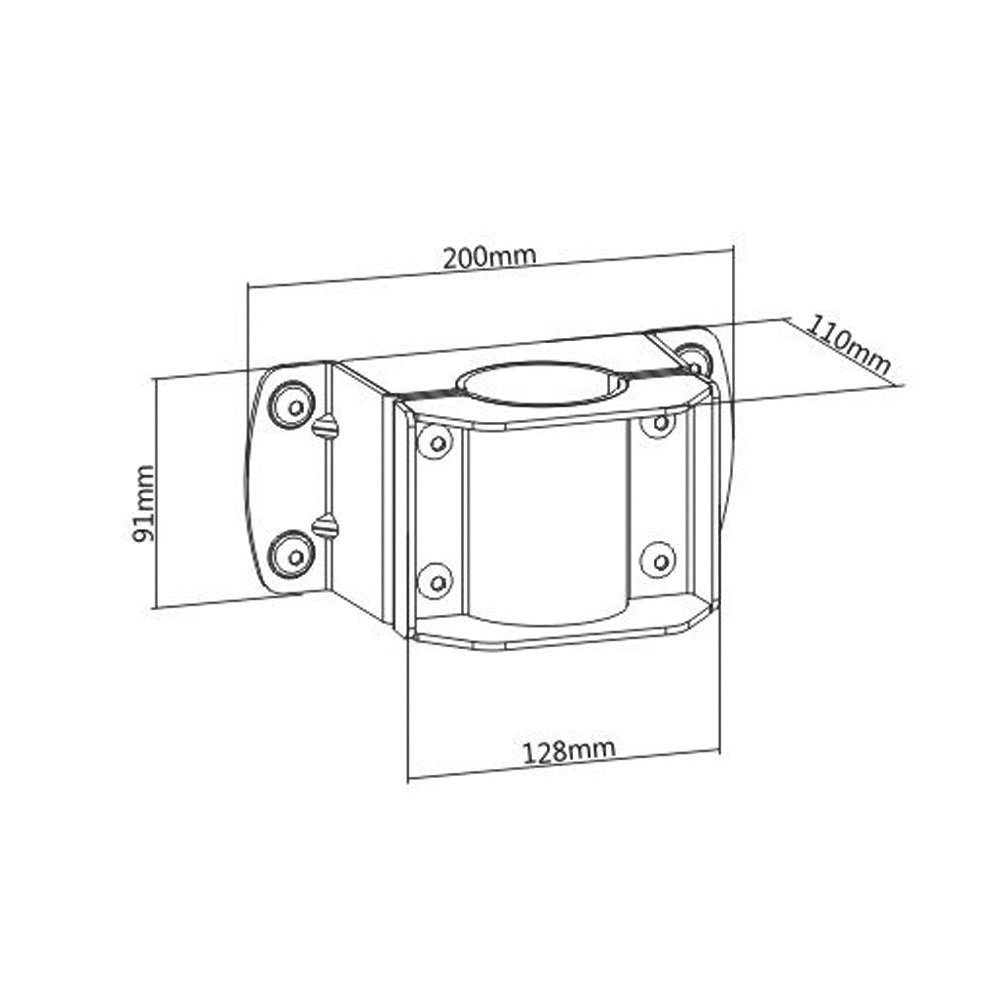

| Dimensions | 200 x 110 x 91 mm [7.9 x 4.3 x 3.6 inches] |
| Compatibility | |
| MT-1600-CP | Video Wall Ceiling Mount - Ceiling Plate |
| MT-1600-P1750 | Video Wall Ceiling Mount - Connecting Pole 1750mm |
| MT-1600-P2250 | Video Wall Ceiling Mount - Connecting Pole 2250mm |
| MT-1600-R700 | Video Wall Ceiling Mount/Stand - Mounting Rail 700mm |
| MT-1600-R1500 | Video Wall Ceiling Mount/Stand - Mounting Rail 1500mm |
| MT-1600-R2000 |
Video Wall Ceiling Mount/Stand - Mounting Rail 2000mm |
| MT-1600-B | Video Wall Ceiling Mount/Stand - Pair of Brackets |
| Approvals | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 4 - M8x12 Screws 4 - Washers |
| Product Weight | 4.03 lbs [1.8 kg] |
