Overview
These micro-adjustment brackets are ideal for video wall and other multi-screen installations.
 |
Ideal for Video Wall ApplicationsThese pairs of brackets are ideal for video wall and other multi-screen installations. Multi-Dimensional Micro AdjustmentThis allows precision alignment of the video wall configuration including depth, height and tilt.
|
Features
Installation
Specifications
| Physical Characteristics | |
|---|---|
| Color | Durable Powder-Coated Black Finish |
| Material | Steel |
| Screen Size | 40 - 70 inches [101.6 - 177.8cm] |

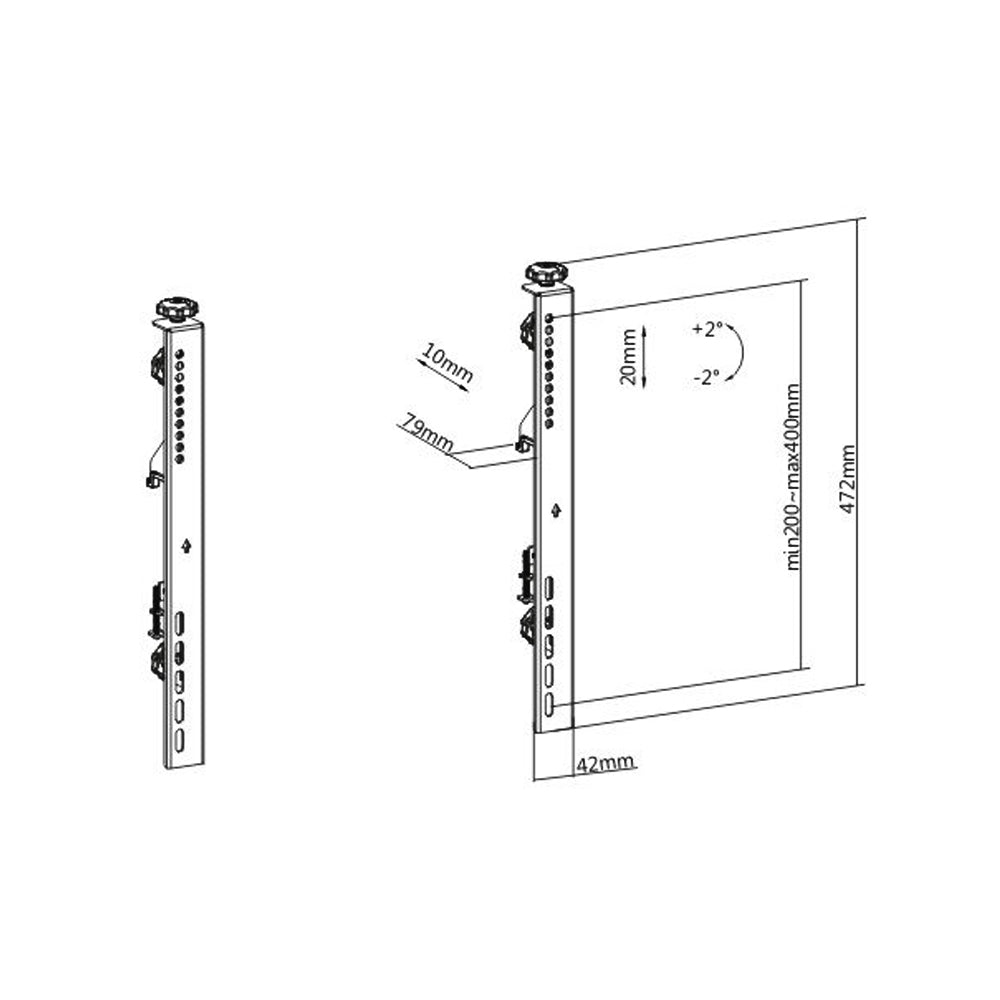

| Dimensions | 42 x 472 x 79 mm [1.7 x 18.6 x 3.1 inches] |
| Fine Adjustment | 10/20mm [0.39/0.79 inches] |
| Tilt |
-2° ~ +2° |
| Direction Indicator | Yes |
| Compatibility | |
| MT-1600-CP | Video Wall Ceiling Mount - Ceiling Plate |
| MT-1600-P1750 | Video Wall Ceiling Mount - Connecting Pole 1750mm |
| MT-1600-P2250 | Video Wall Ceiling Mount - Connecting Pole 2250mm |
| MT-1600-R700 | Video Wall Ceiling Mount/Stand - Mounting Rail 700mm |
| MT-1600-R1500 | Video Wall Ceiling Mount/Stand - Mounting Rail 1500mm |
| MT-1600-R2000 |
Video Wall Ceiling Mount/Stand - Mounting Rail 2000mm |
| MT-1600-J | Video Wall Ceiling Mount - Joining Collar |
| Approvals | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 4 - M5x14 Screws 4 - M6x14 Screws 4 - M6x30 Screws 4 - M8x20 Screws 4 - M8x30 Screws 4 - Rectangular Washers 8 - Small Spacers 4 - Big Spacers 6 - ST6.3x55 Screws 6 - Concrete Anchors 6 - D6 Washers |
| Product Weight | 6.6 lbs [3 kg] |
5-YEAR LIMITED LIFETIME WARRANTY
Infinite Cables Inc. offers a 5-year warranty on all TV mounts to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| MT-1600-B | 6.6 lb |
