Overview

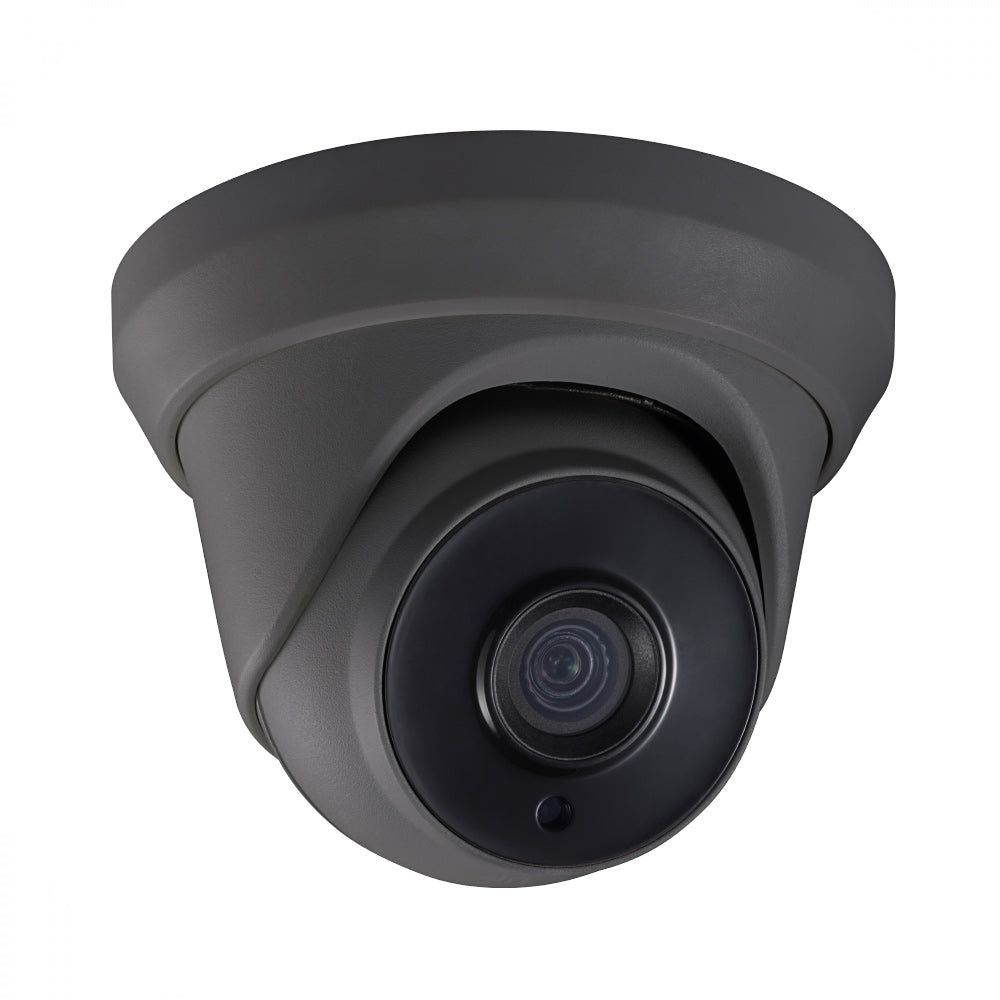

This 2MP outdoor, TVI based turret camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a 2.8mm fixed lens which delivers a 103° horizontal field of view. Its maximum resolution is 1080p at 30 fps NTSC or 1080p at25 fps PAL. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use and has 130 feet of night vision using Ultra-Low Light EXIR technology for high definition analog output.
Features
- 2M Smart FSI CMOS Sensor
- EXIR
- 60m IR
- Outdoor EXIR Turret
- ICR
- 0.003 Lux/F1.2
- 12 VDC
- Smart IR
- 3D DNR
- OSD Menu(Up the Coax)
- 130dB True WDR
- IP67
- 2.8mm Lens
Application
Specifications
| Camera | |
|---|---|
| Image Sensor | 2.0 MP progressive scan CMOS |
| Signal System | PAL/NTSC |
| Frame Rate | PAL: 1080p @ 25 fps; NTSC: 1080p @ 30 fps |
| Resolution | 1920 (H) x 1080 (V) |
| Minimum Illumination | Color: 0.005 lux @ (F1.2, AGC ON), 0 lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Slow Shutter | Maximum 16 times |
| Lens | 2.8 mm fixed focal lens |
| Horizontal Field of View |
103.5° |
| Lens Mount | M12 |
| Day and Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt:0° to 75°, rotate: 0° to 360° |
| Synchronization | Internal synchronization |
| WDR (Wide Dynamic Range) | > 120 dB |
| Menu | |
| AGC | Supported |
| Day and Night Mode | Auto/Color/BW (Black and White) |
| White Balance | ATW/MANUAL |
| Privacy Mask | ON/OFF, 4 programmable privacy masks |
| Motion Detection | 4 programmable motion areas |
| Backlight Compensation | WDR/BLC/HLC/OFF |
| 3D DNR (Digital Noise Reduction) | Level 1 to 10 |
| Language | English |
| Functions | Brightness, sharpness, mirror, Smart IR |
| Interface | |
| Video Output | 1 HD analog output |
| General | |
| Operating Conditions | -40° F to 140° F (-40° C to 60° C), humidity: 90% or less (non-condensation) |
| Power Supply | 12 VDC ± 25% |
| Power Consumption | Maximum 3.6 W |
| Ingress Protection | IP67 |
| Material | Plastic |
| IR Range | Up to 130 ft (40 m) |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |

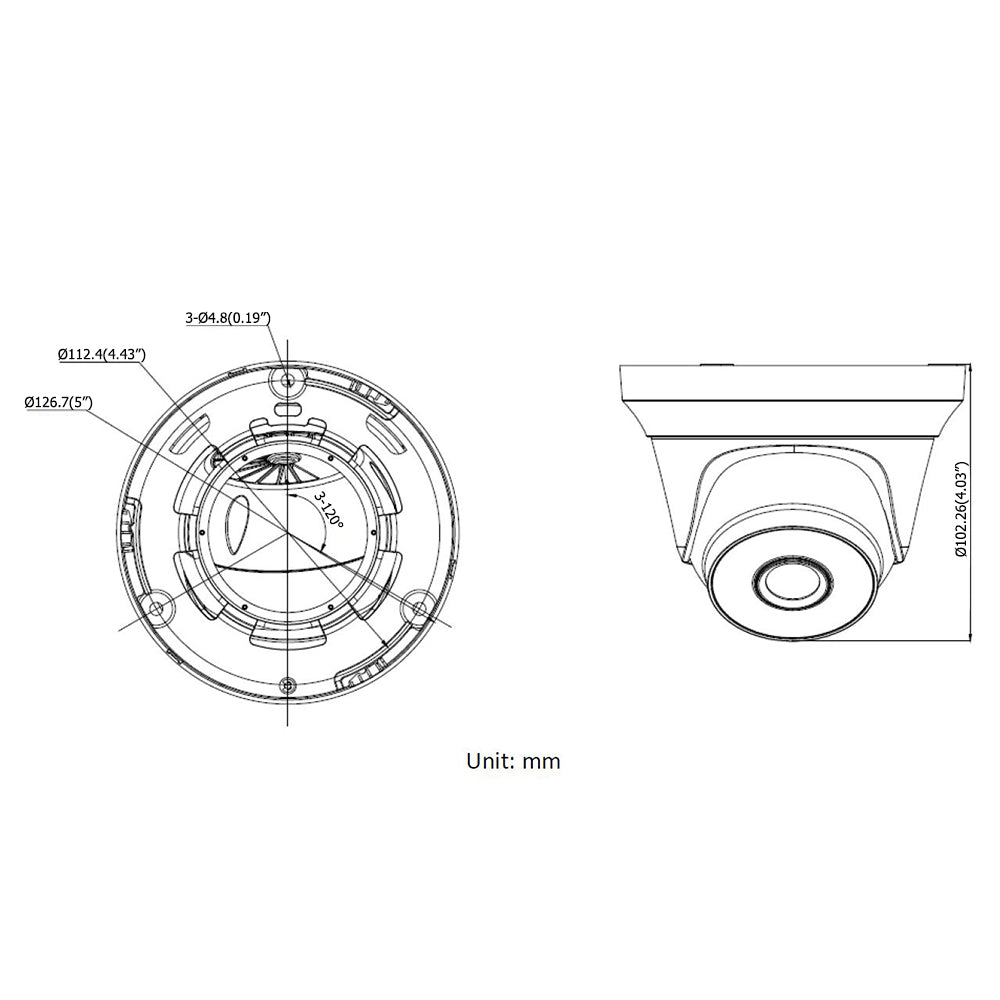

| Dimensions | Œ€ 4.33" x 3.67" (Œ€ 110 mm x 93.2 mm) |
| Weight | Approximately 0.77 lbs (350 g) |
| Approvals | |
| c(UL)us | Yes |
| CE | Yes |
| FCC | Yes |
| ONVIF | Yes |
Compatible Baluns
Compatible DC Power Supplies
Compatible DC Power Connectors
| CN-DCM-S | DC Power Connector Male 2.1mm x 5.5mm Screw Down |
| CN-DCM | DC Power Connector Male 2.1mm x 5.5mm Plastic Shell |
| CN-DCM-8IN | DC Power Connector Male 2.1mm x 5.5mm (8 inch Pigtail, 22AWG) |
Compatible BNC Connectors
| CN-CBNCM-59-10 | BNC Male Compression Connector for RG59 - Pack of 10 |
| CN-CBNCM-59-10PL | BNC Male Compression Connector for RG59 Plenum - Pack of 10 |
| CN-30-734A | BNC Male Crimp Connector for RG59 (734A) |
| CN-30-S | BNC Male Screw Down Connector, 75 Ohm |
| CN-TBNC-59 | BNC Male Twist-On Connector for RG59 |
3-YEAR WARRANTY
Infinite Cables Inc. offers a 3-year warranty on all cameras and hard drives to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| CA-1120F2-WH | 0.77 lb |
