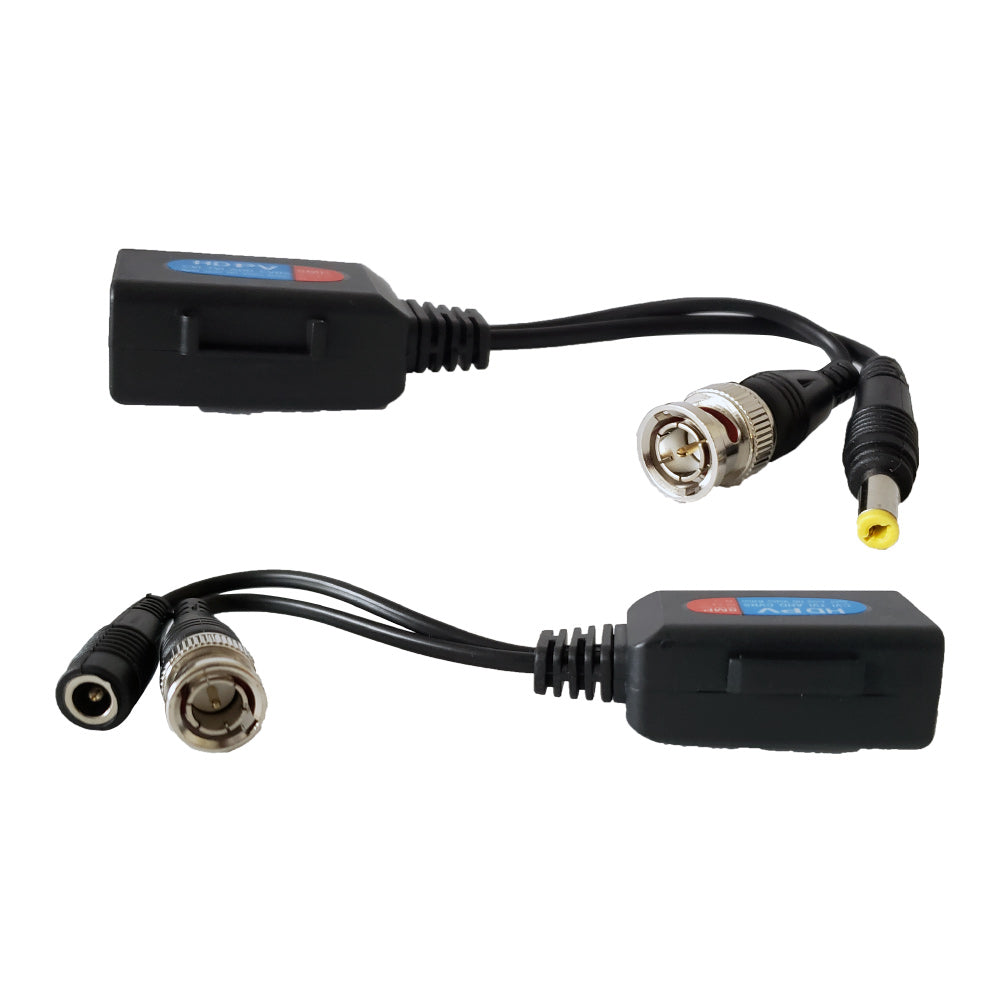

This BNC video extender over twisted pair cable consists of a transmitting and receiving unit. The transmit unit has a BNC male connector, RJ45 female connector and female 2.1mm x 5.5mm power connector, while the receiving unit has a BNC male connector, RJ45 female connector and male 2.1mmx 5.5mm power connector. It is used to extend a BNC composite signal and power over CAT5e/CAT6 cabling.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing Material | ABS+PC |
| Operating Temperature | -10℃ - +70℃ |
| Storage Temperature | -30℃ - +70℃ |
| Humidity | 0 to 95% |
| Connectors | |
| Coaxial Video Connector | 2 - BNC Male |
| Twisted-pair Video Connector | 2 - RJ45 Female |
| Power Connector | 1 - Male Power Connector 1 - Female Power Connector |
| Impedance | 75 Ohms - BNC 100 Ohms - UTP |
| Performance | |
| Transmission Signal | 1 Channel |
| Compatible Format | HD-CVI, HD-TVI, HD-AHD |
| Supported Video Formats | NTSC/PAL/SECAM |
| Resolution | 720p/1080p/3MP/4MP/5MP/8MP |
| Transmission Distance HDCVI | UP to 200m for 1080p/3MP/4MP/5MP/8MP Up to 250m for 720p |
| Transmission Distance HDTVI | UP to 200m for 1080p/3MP/4MP/5MP/8MP Up to 250m for 720p |
| Transmission Distance AHD | Up to 200m for 1080p/3MP/4MP/5MP/8MP AHD Up to 250m for 720p/960p |
| Frequency Response | DC to 60MHz |
| Attenuation | 0.5dB type |
| Common Mode Rejection Ratio | 60dB |
| Surge Protection | 4kV |
| Electrostatic Discharge | 8kV |
| Power | Built-in Power Wire |
| Approvals | |
| CE | Yes |
| FCC | Yes |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.1 lbs [0.1kg] |
2-YEAR WARRANTY
Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| VE-BNC-011 | 0.1 lb |
