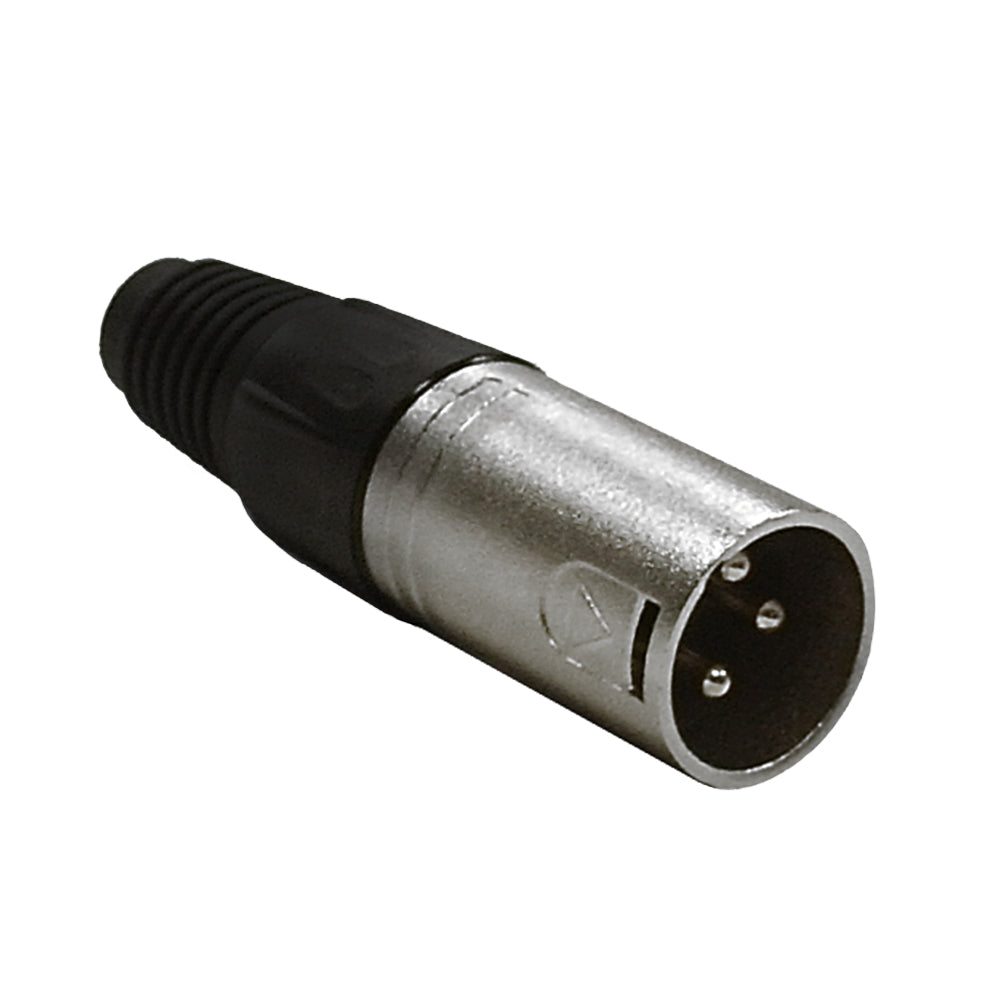

This is a XLR male solder connector. It is meant to be terminated onto audio cable.
Physical Characteristics |
Color |
Nickel/Black |
Pin Plating |
Gold |
Jack
|
Bronze
|
Button spring ground strap
|
Stainless steel
|
Shell |
Zinc Alloy
|
Button |
Zinc Alloy |
Sealing Ring |
Rubber |
Cable |
PA (Polyamide) |
Screw Barrel |
PA (Polyamide)
|
Stopper |
PP (Polypropylene) |
Tail Sleeve |
PVC |
Connection Type
|
Welding |
Cable Sheath Diameter
|
≤Φ7.5
|
Inner Core Structure
|
2.5mm2
|
Locking Structure
|
Play type
Hook type
|
Wire Gauge |
14AWG |
Insertion and Extraction Force
|
≤20N
|
Life Time
|
1000
|
Electrical Characteristics |
Contact resistance |
≤ 5m Ohm |
Dielectric strength |
1.5KV |
Insulation resistance |
>10m Ohm |
Rated current |
10A |
Rated voltage |
50V |
Connector(s) |
Connector |
XLR Male Solder |
Packaging Information |
Package Quantity |
1 |
Product Weight |
0.25 lbs [0.11 kg] |
Contents |
Included in Package |
1 - Connector |
