Description

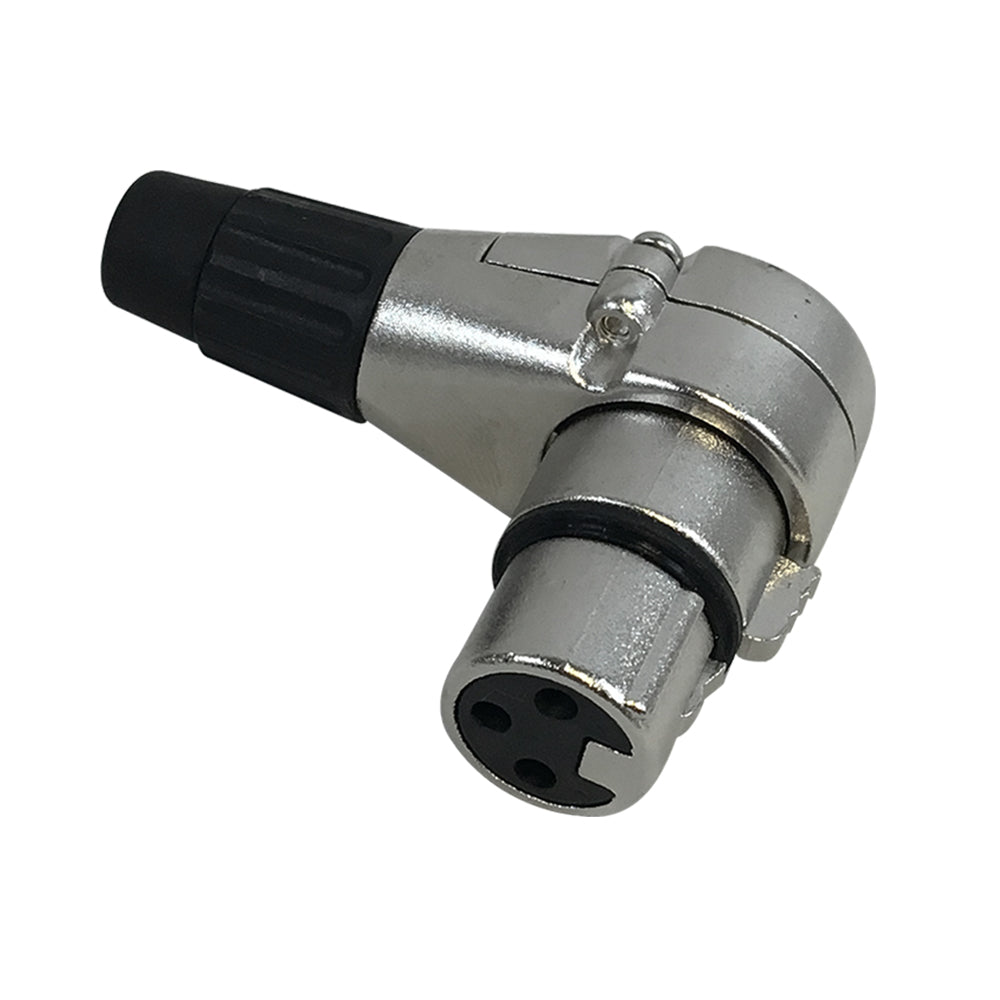

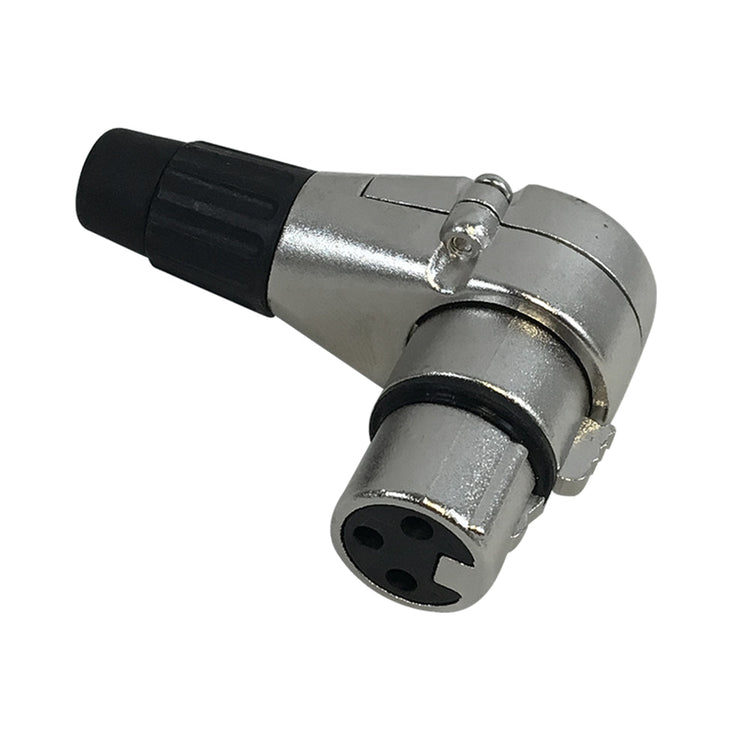

This 90 degree connector consists of a right angle XLR female on one end and a solder connection on the other. It is designed to be connected to an XLR cable.
| Physical Characteristics | |
|---|---|
| Color | Nickel |
| Pin Plating | Gold |
| Electrical Characteristics | |
| Contact resistance | Ā ā¤ 5m Ohm |
| Dielectric strength | 1.5KV |
| Insulation resistance | >10m Ohm |
| Rated current | 10A |
| Rated voltage | 50V |
| Connector(s) | |
| Connector A | XLR Female Right Angle |
| Connector B | Solder |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.12 lbs [0.06 kg] |
| Contents | |
| Included in Package | 1 - XLR 90 Degree Female Connector plus hardware |
Spec Sheets
Product Weights
| SKU | Weight | |
| CN-XLRFRA | 0.12 lb |
