Description

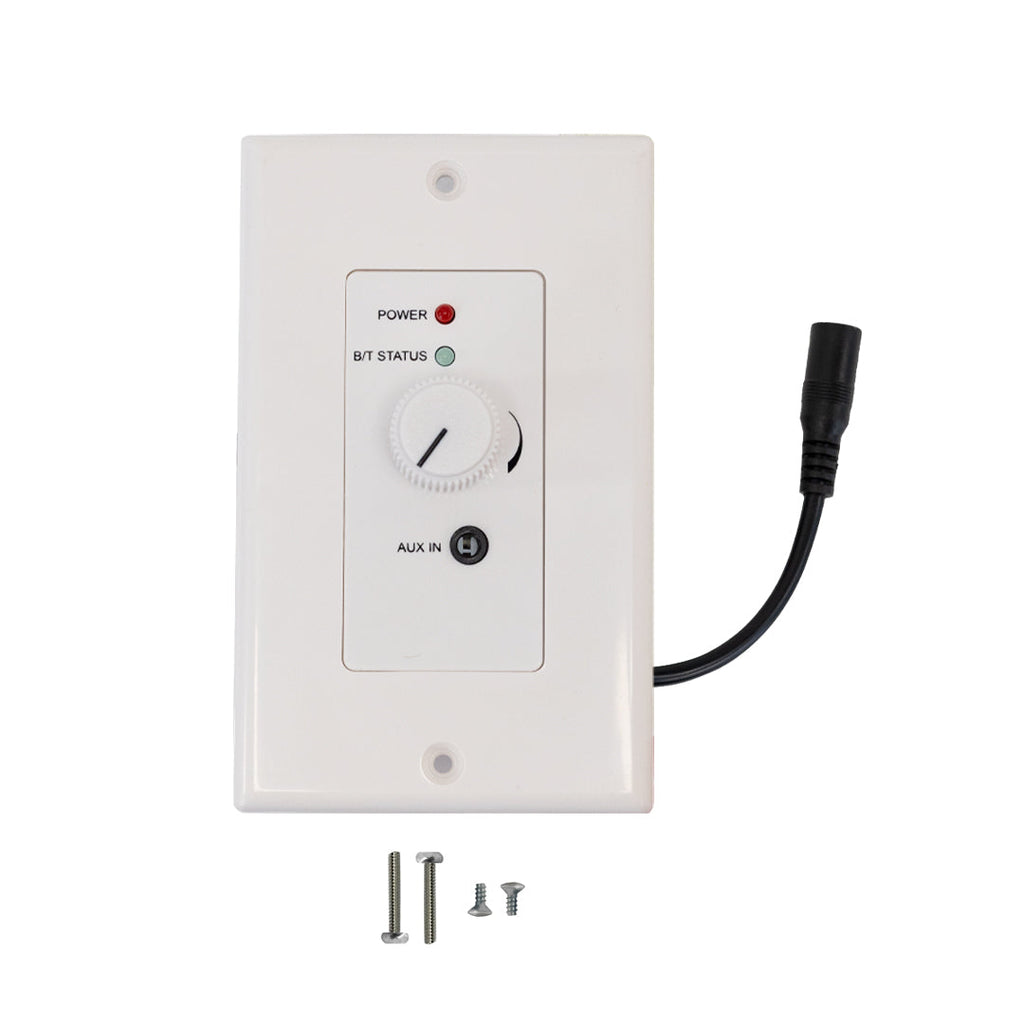

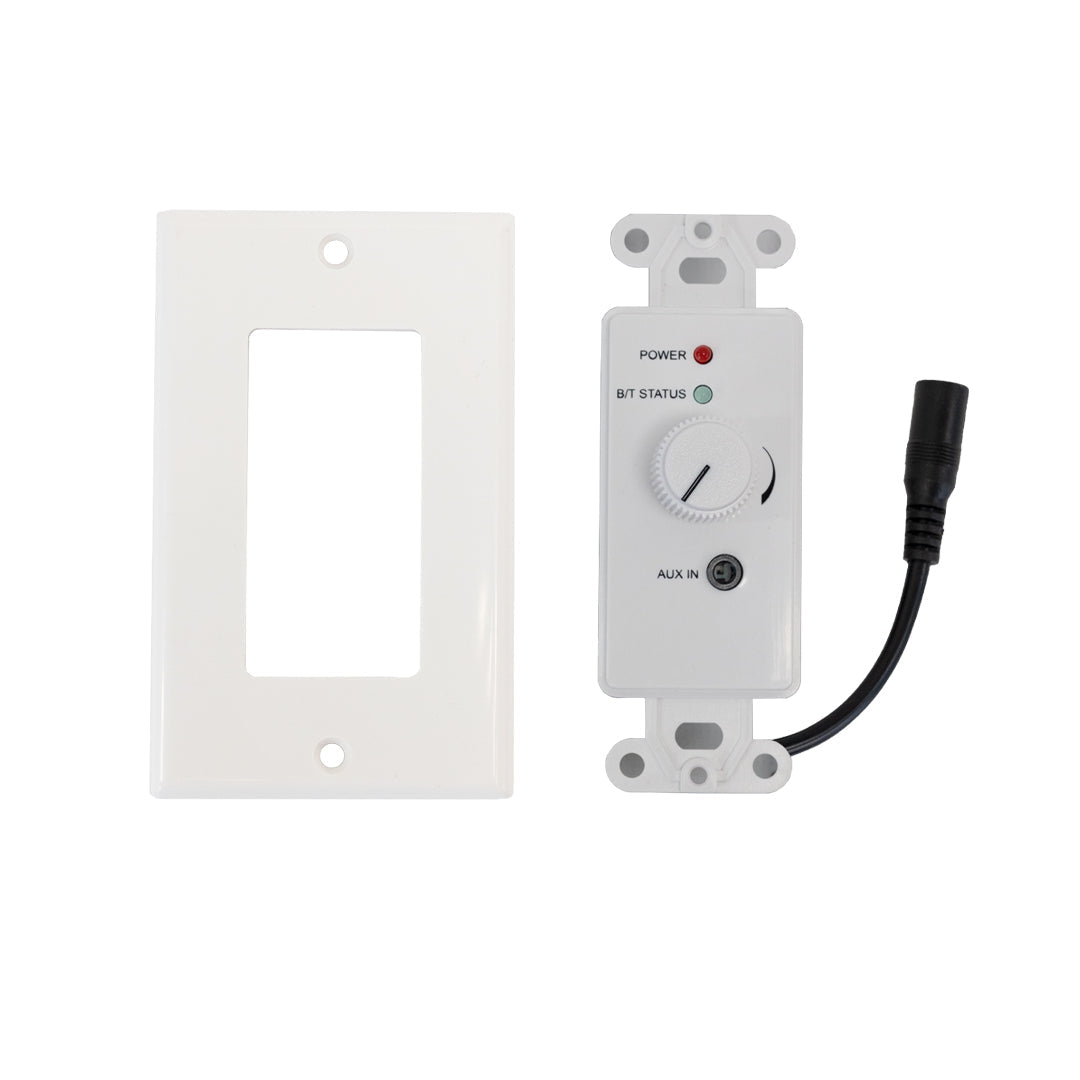

This wall plate kit consists of a Decora wall plate, amplifier and power supply. It is typically used to connect to a pair of in-wall/in-ceiling/wall-mounted speakers and control them via Bluetooth or plugging directly into them using a 3.5mm cable. They are typically used in small spaces such as bedrooms, bathrooms, garages or backyards.
| Physical Characteristics | |
|---|---|
| Color | White |
| Material | ABS |
| Plate Size | Single Gang |
| 3.5mm Cable Length | 6.5 Inches |
| Connector(s) | |
| Audio Inputs | Bluetooth Receiver or Stereo Audio Line Level |
| Performance | |

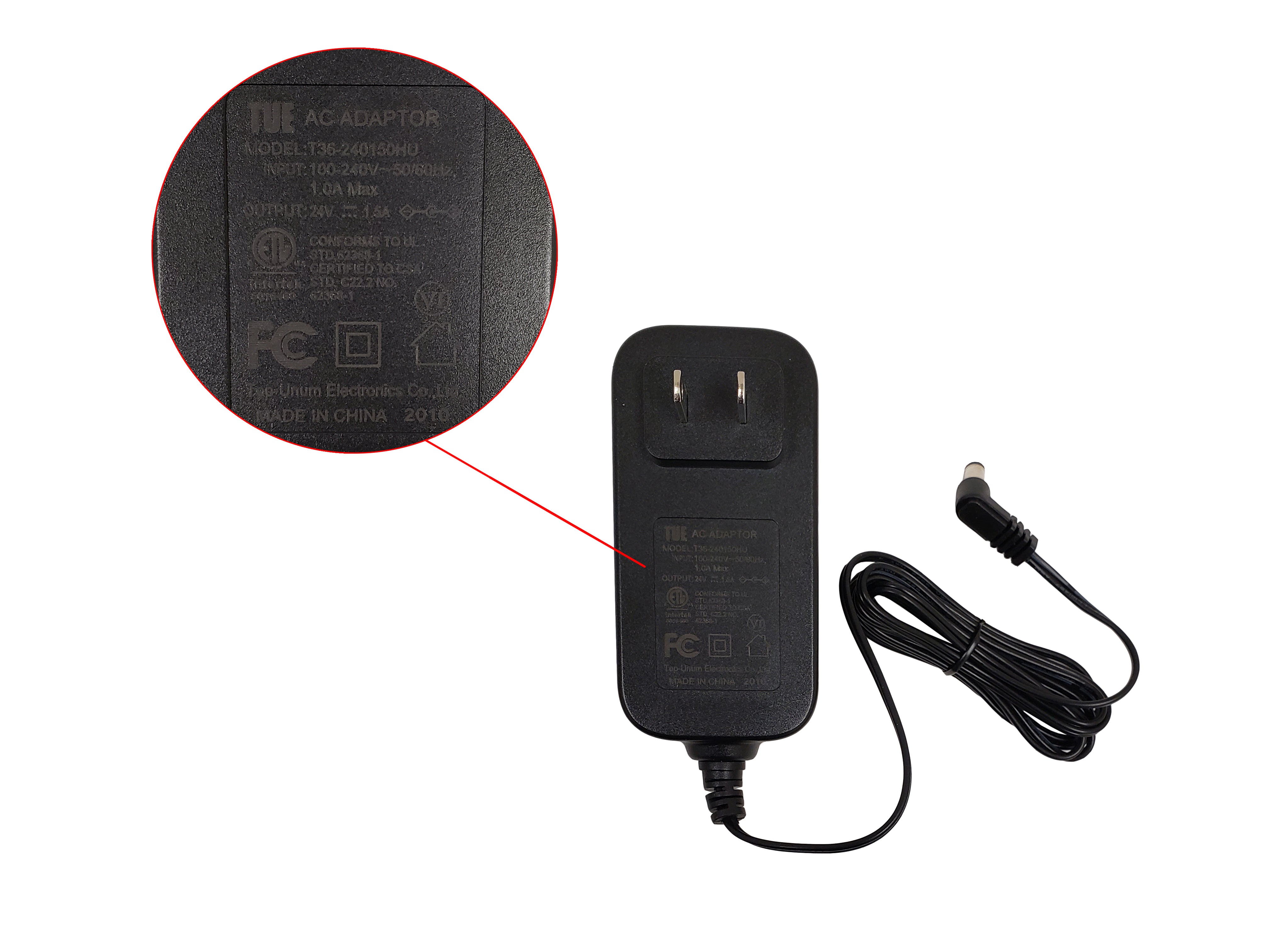

| Power Source | 24 VDC |

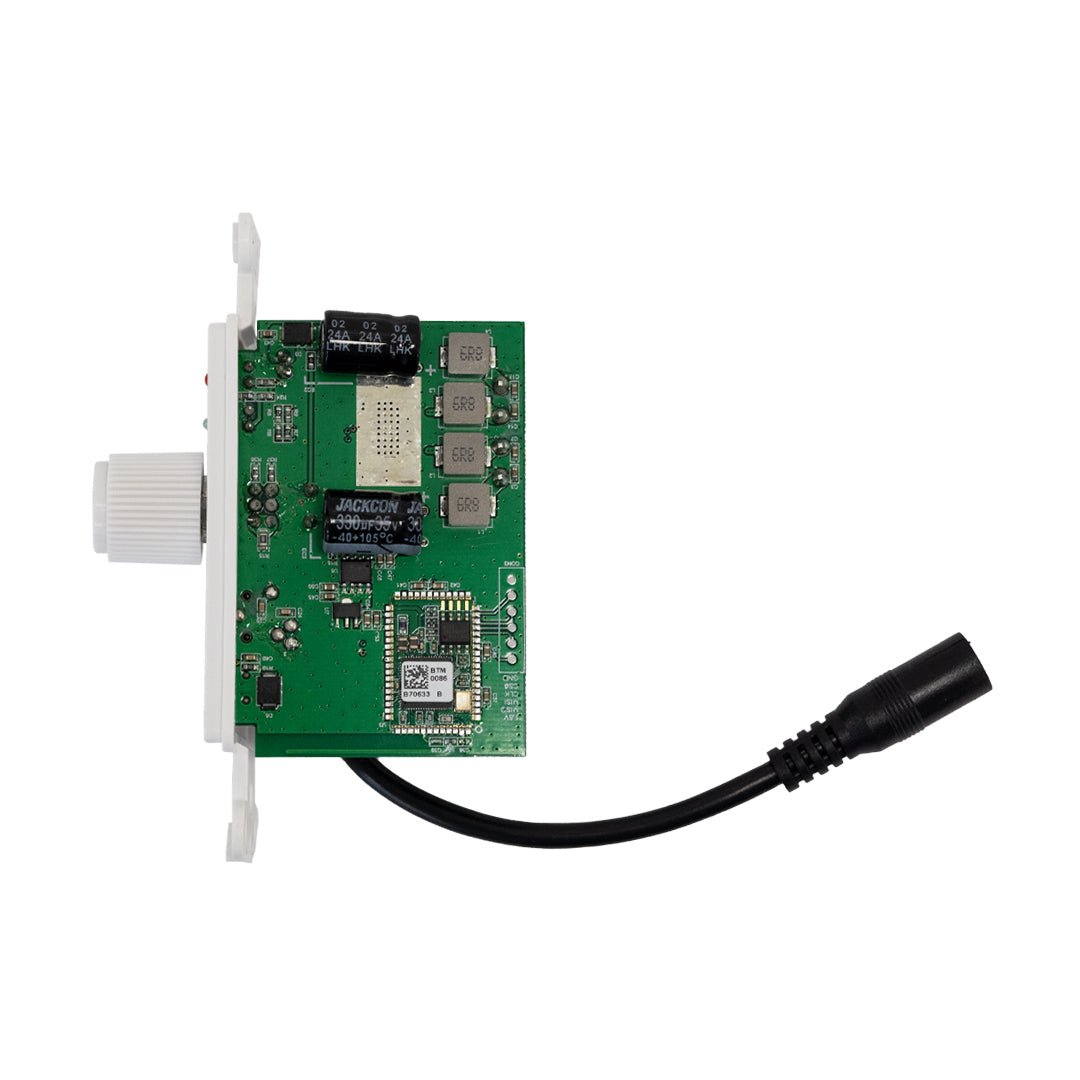

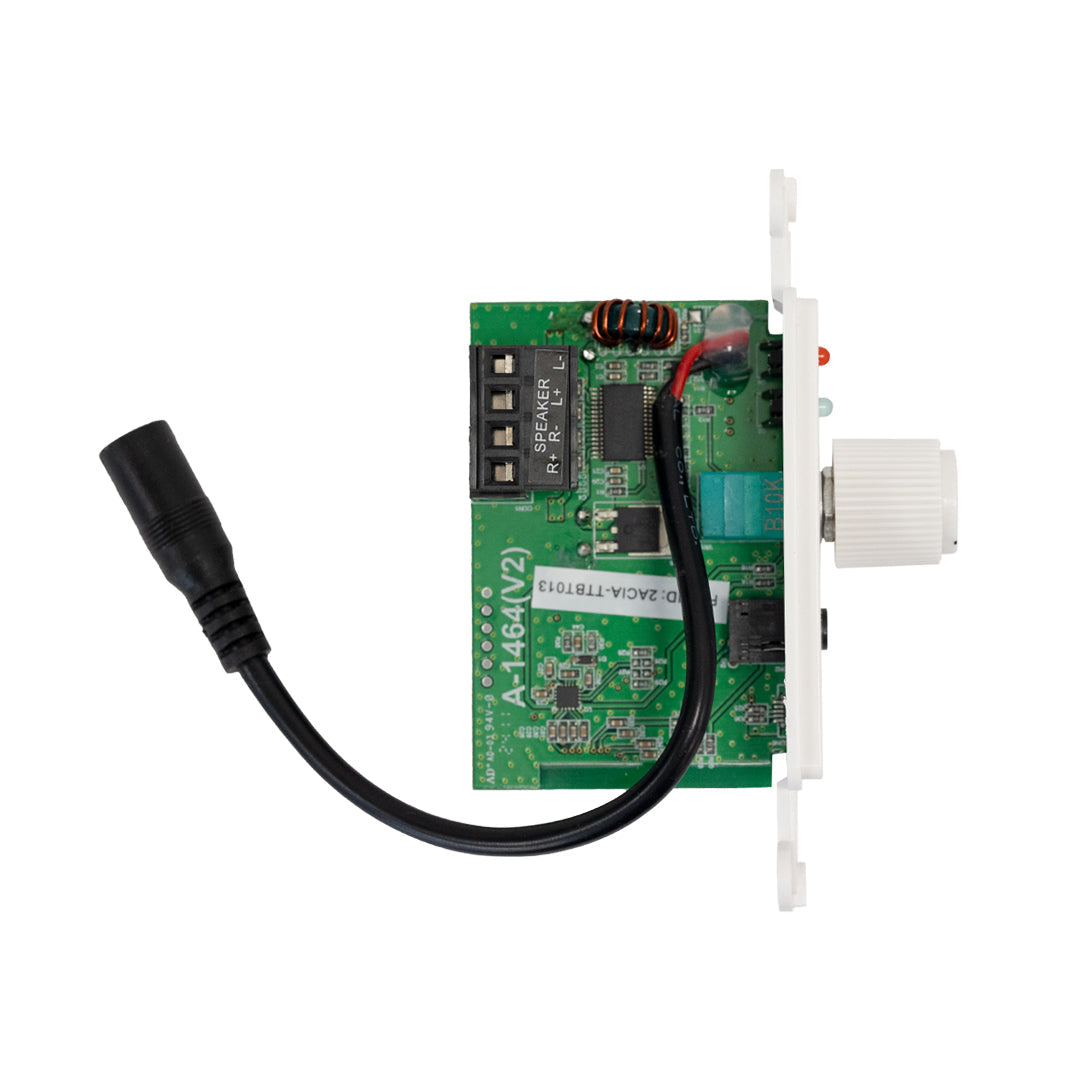

| Power Amplifier Type | Stereo Class-D |
| Output Power | 24W (rms) per channel (@ RL=4 ohm) |
| Total Harmonic Distortion + Noise | THD+N: 0.1% (@ RL=4 ohm, f = 1 kHz) |
| Minimum Load Resistance | 4 ohm |
| Audio Priority | B/T > Aux In |
| Bluetooth Version | B/T v5 compliant with apt-X |
| Bluetooth Receive Distance | 30 meters (open space) |
| Supports | 3 min link-lost time function B/T automatically switches to pairing state if reconnecting fails Speaker protection circuit |
| Bluetooth LED Status | |
|
Blue led on : 1 sec , off : 2 sec , repeat Blue led flash every 2 sec Blue led flash twice every 2 sec Blue led On: 150ms, Off: 150ms repeat |
All profiles are standby but not connected with any Bluetooth device yet. A2DP or HFP is connected. On A2DP streaming state. Enter pairing mode. |
| Product Support | |
| FCC | Compliant |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.70 lbs [0.3 kg] |
| Product Dimensions | 4.5 L, 2.75 W, 1.85 D inches [11.5 L, 7 W, 4.7 D cm] |
| Included in Package | 1x Wall Plate Kit 1x Power Supply 2x Pair of Screws |
| Warranty Information | |
| Warranty | 2 Year |
