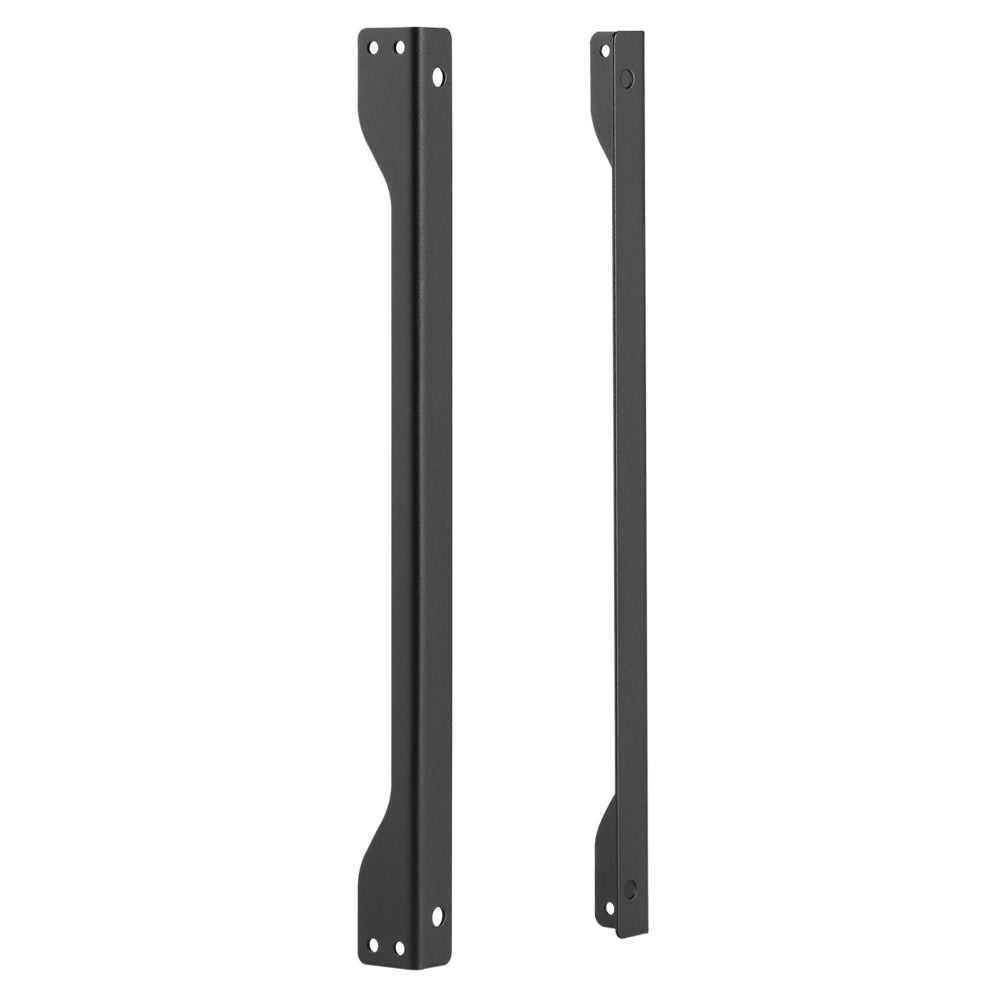

Video Wall TV Mount Arms and Accessories for Custom Installation

Video Wall MountsSKU: MT-1514

Price:
Sale price$129.04 USD
Stock:
In stock

This item does not qualify for free shipping.

Description

Overview

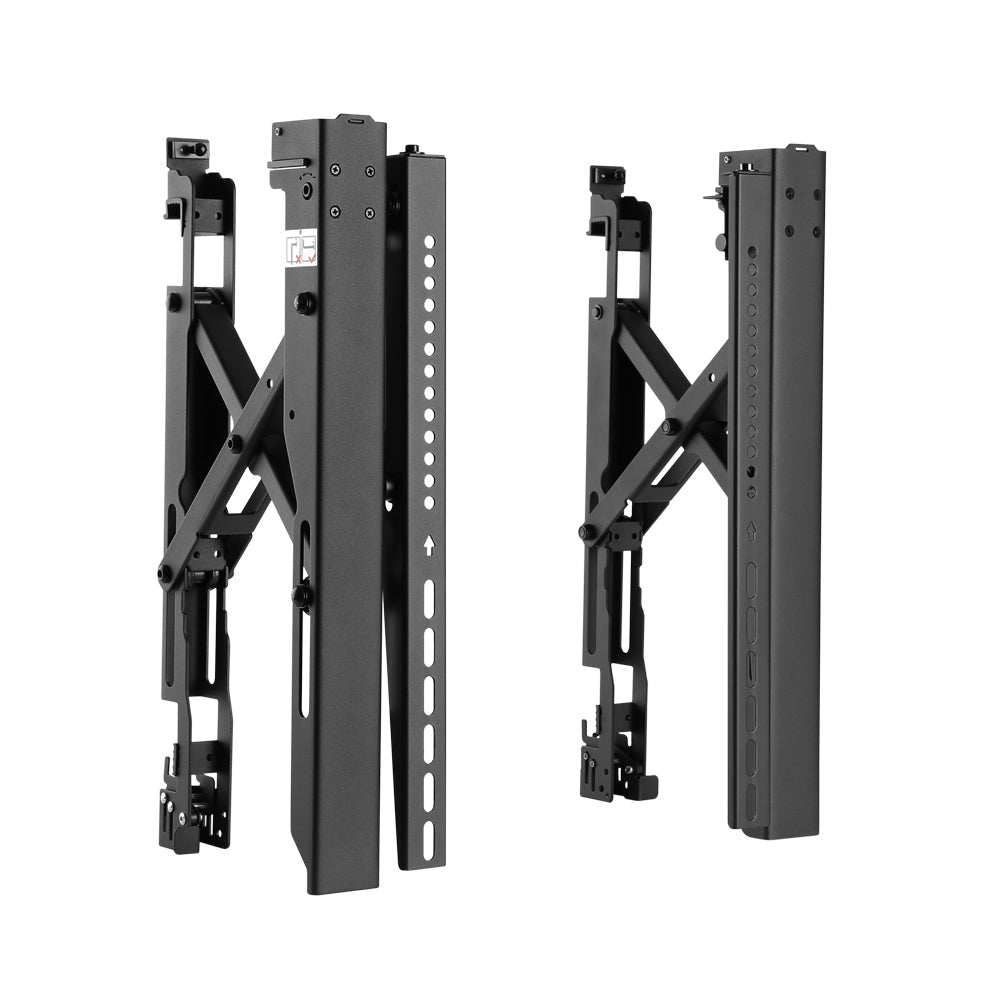

These video wall TV mounting arms are part of a modular video wall mount system which are to be used in conjunction with the MT-1514-495 and MT-1514-745 aluminum rails. One set of arms should be purchased for each TV.

Quick and Easy Installation

These mounting arms and accessories can be put together with as many aluminum rails as required for quick and easy installation.

Pop-Out Extension for Easy Access

There is a pop-out extension function on this bracket that allows easy rear access of the screen.

Multi-Dimensional Micro Adjustment

This allows precision alignment of the video wall configuration including depth, height and tilt.

Features


Installation


Specifications

Physical Characteristics
Mounting Style Micro Adjustment, Pop-out, Tilting
Color Durable Powder-Coated Black Finish
Material Metal
Metal Sheet Thickness Bracket Arm Thickness = 2mm Cold-Rolled Sheet
Mounting Pattern VESA 200x200,300x200,300x300,400x200,400x300,400x400,600x400,800x400,1000x400
Screen Size 45 inches [114cm] (Min)
Weight Capacity 154lbs [70kg]

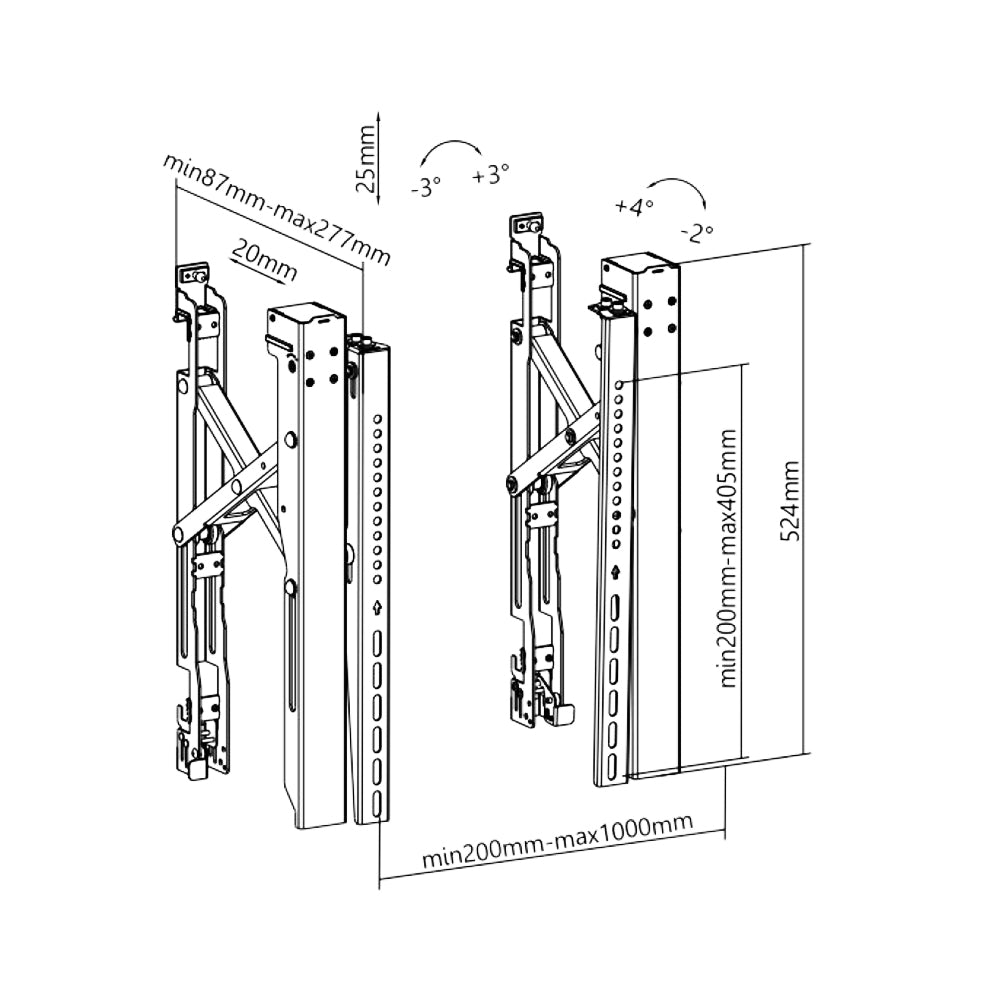

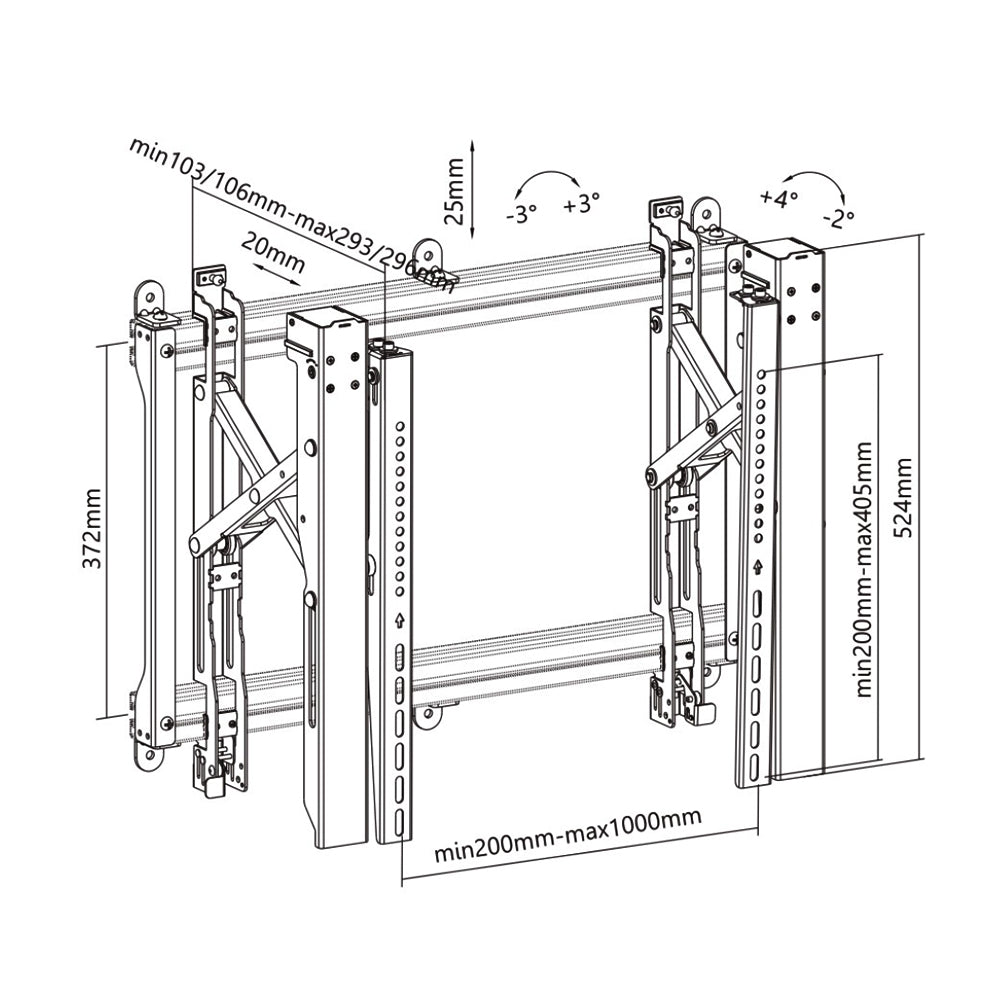

Profile 103/106 ~ 293/296mm [4.1/4.2 ~ 11.5/11.7 inches]
Fine Adjustment 20/25mm [0.79/0.98 inches]
Level Adjustment -3° ~ +3°
Tilt
-2° ~ +4°
Installation Solid Wall
Anti-Theft Yes
Compatibility
MT-1514-495 495mm Aluminum Rails for Custom Installation (Pair)
MT-1514-745 745mm Aluminum Rails for Custom Installation (Pair)
Approvals
RoHS Yes
Reach Yes
Packaging Information
Package Quantity 1
Mounting Hardware 4 - M5x14 Screws
4 - M6x14 Screws
4 - M6x30 Screws
4 - M8x20 Screws
4 - M8x30 Screws
4 - Rectangular Washers
8 - Small Spacers
4 - Big Spacers
6 - ST6.3x55 Screws
6 - Concrete Anchors
6 - D6 Washers
Product Weight 26.5 lbs [12 kg]

5-YEAR LIMITED LIFETIME WARRANTY

Infinite Cables Inc. offers a 5-year warranty on all TV mounts to be free from defects in material and workmanship.

This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.

Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.

SKU Weight
MT-1514 26.5 lb
