Description
Overview
This pop-out video wall mount bracket is designed to hold most 45 inch to 70 inch flat screen displays with a maximum VESA hole pattern of 600x400. It allows portrait screen orientation and can be used on a single TV or in conjunction with additional mounts to create a video wall.
 |

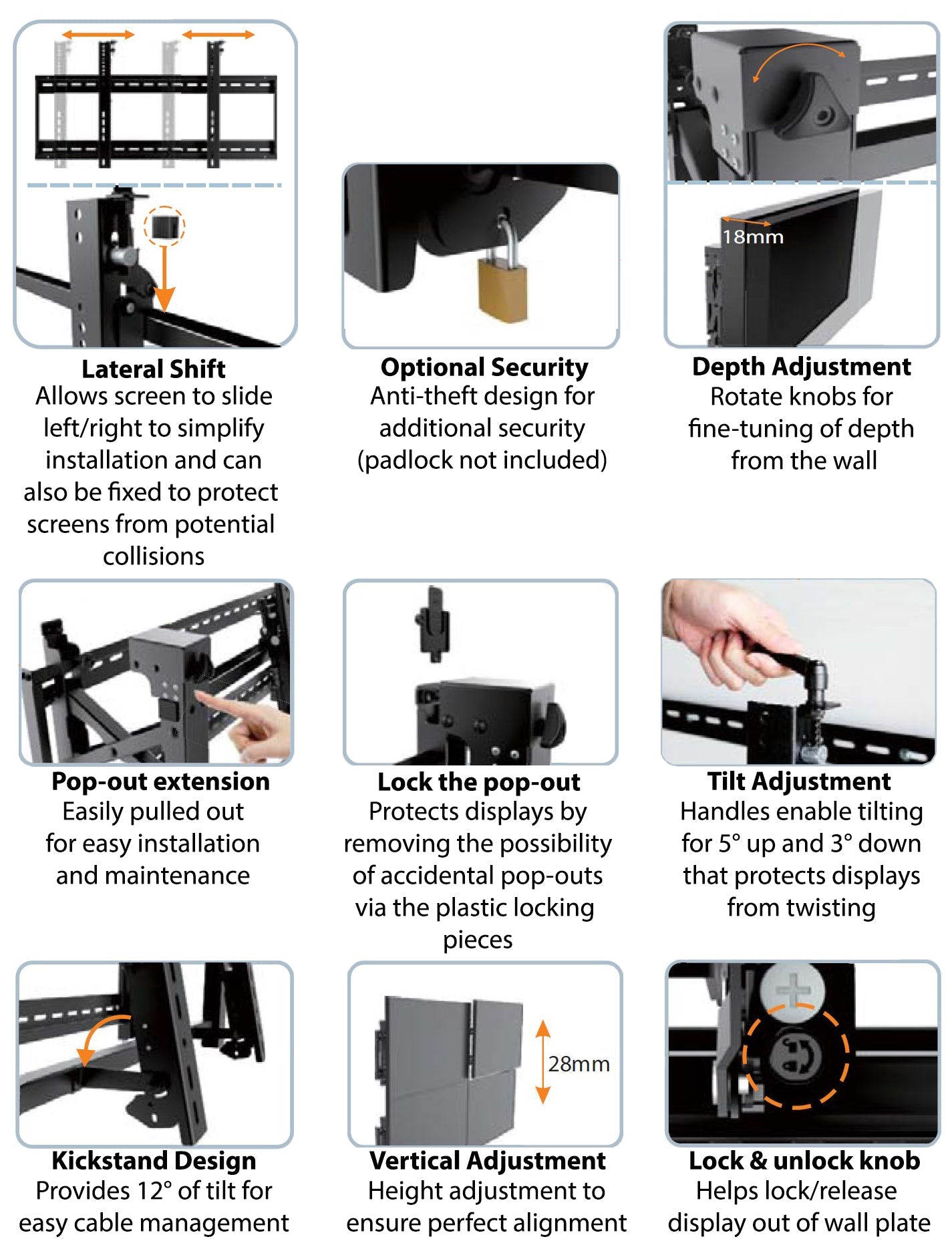

Effortless Maintenance and Cable ManagementThis portrait TV mount bracket has a kickstand that provides 12° of tilt for easy maintenance and cable management. Pop-Out Extension for Easy AccessThis bracket that allows easy rear access of the screen. Display and Level Adjustment is Easy on the EyesThis bracket can be fixed at 6 different points. This allows for an ideal display alignment and level for a pleasurable viewing experience. Anti-Theft DesignThis bracket has an anti-theft design that is ideal for commercial settings (padlock not included).
|
Specifications

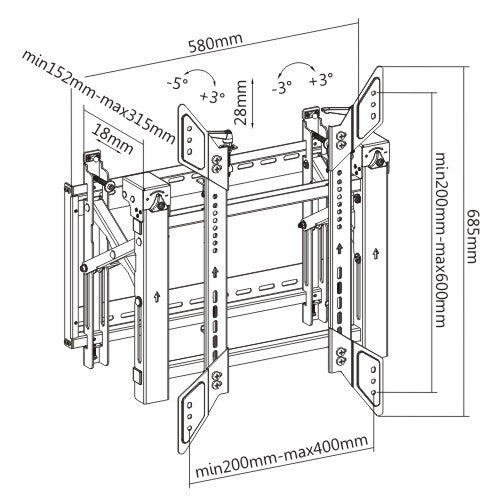

| Physical Characteristics | |
|---|---|
| Mounting Style | Micro Adjustment, Pop-out, Tilting |
| Color | Durable Powder-Coated Black Finish |
| Material | Metal |
| Mounting Pattern | VESA 200X200, 400X200, 300x300, 400x400, 600x400 |
| Screen Size | 45 - 70 inches [114 - 178cm] |
| Weight Capacity | 154lbs [70kg] |
| Profile | 145 - 308mm |
| Level Adjustment | -3° ~ +3° |
| Tilt |
-3° ~ +5° |
| Installation | Single Stud |
| Micro Adjustments |
Up/Down 28mm, In/Out 18mm |
| Rear Access |
Kick-out Bottom |
| Anti-Theft | Compliant |
| Approvals | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 4 - M5x14 Screws 4 - M6x14 Screws 4 - M6x30 Screws 4 - M8x20 Screws 4 - M8x30 Screws 4 - Rectangular Washers 8 - Small Spacers 4 - Big Spacers 6 - ST6.3x55 Screws 6 - Concrete Anchors 6 - D6 Washers |
| Package Weight | 34.2 lbs [15.5 kg] |
| Product Weight | 30.4 lbs [13.8 kg] |
| Warranty Information | |
| Warranty |
5 Year Warranty |
