Description
Overview

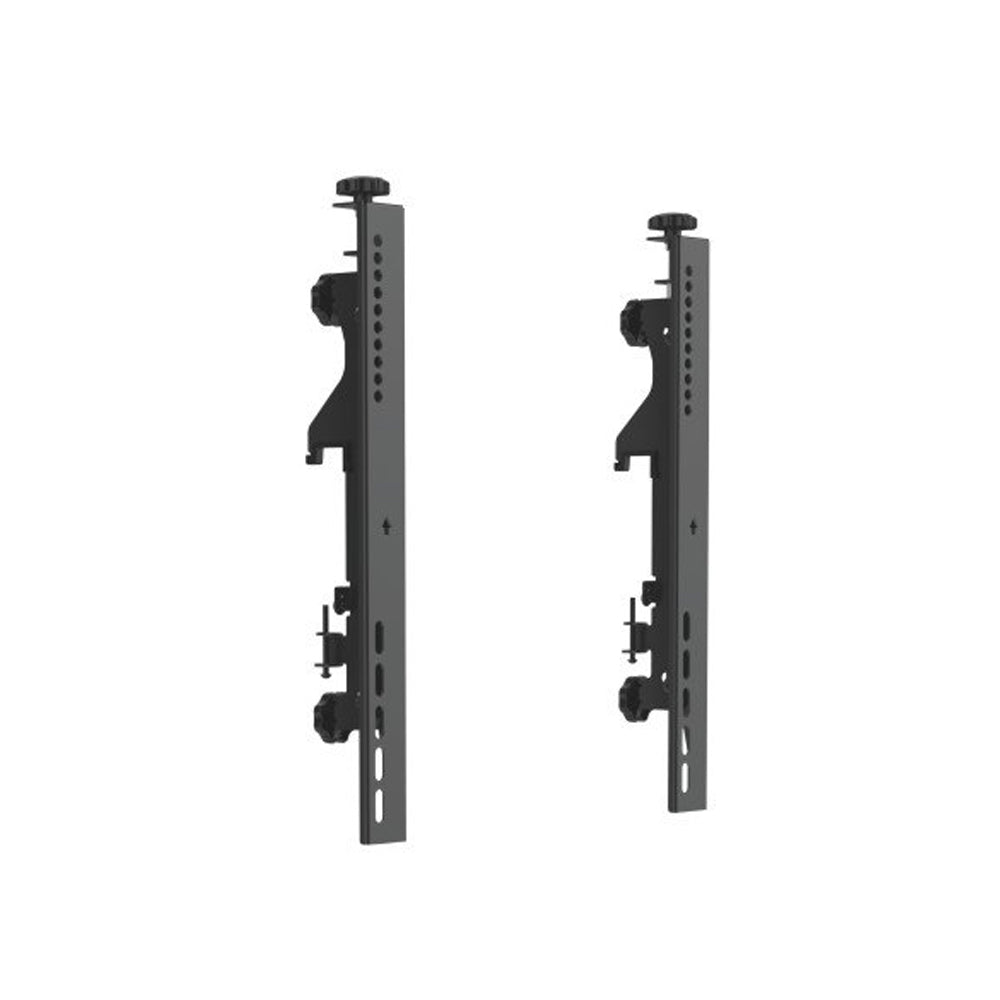

These micro-adjustment brackets are ideal for video wall and other multi-screen installations.
 |

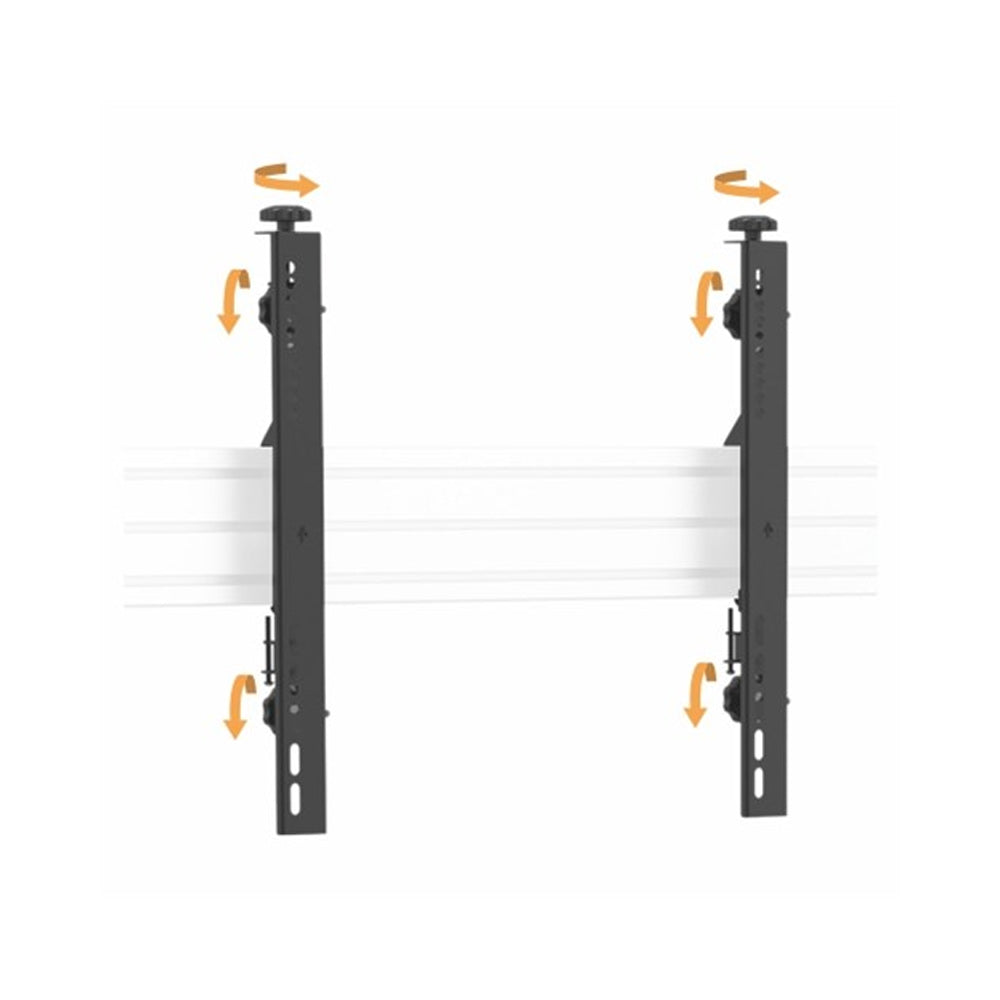

Ideal for Video Wall ApplicationsThese pairs of brackets are ideal for video wall and other multi-screen installations. Multi-Dimensional Micro AdjustmentThis allows precision alignment of the video wall configuration including depth, height and tilt.
|
Features
Installation
Specifications
| Physical Characteristics | |
|---|---|
| Color | Durable Powder-Coated Black Finish |
| Material | Steel |
| Screen Size | 40 - 70 inches [101.6 - 177.8cm] |

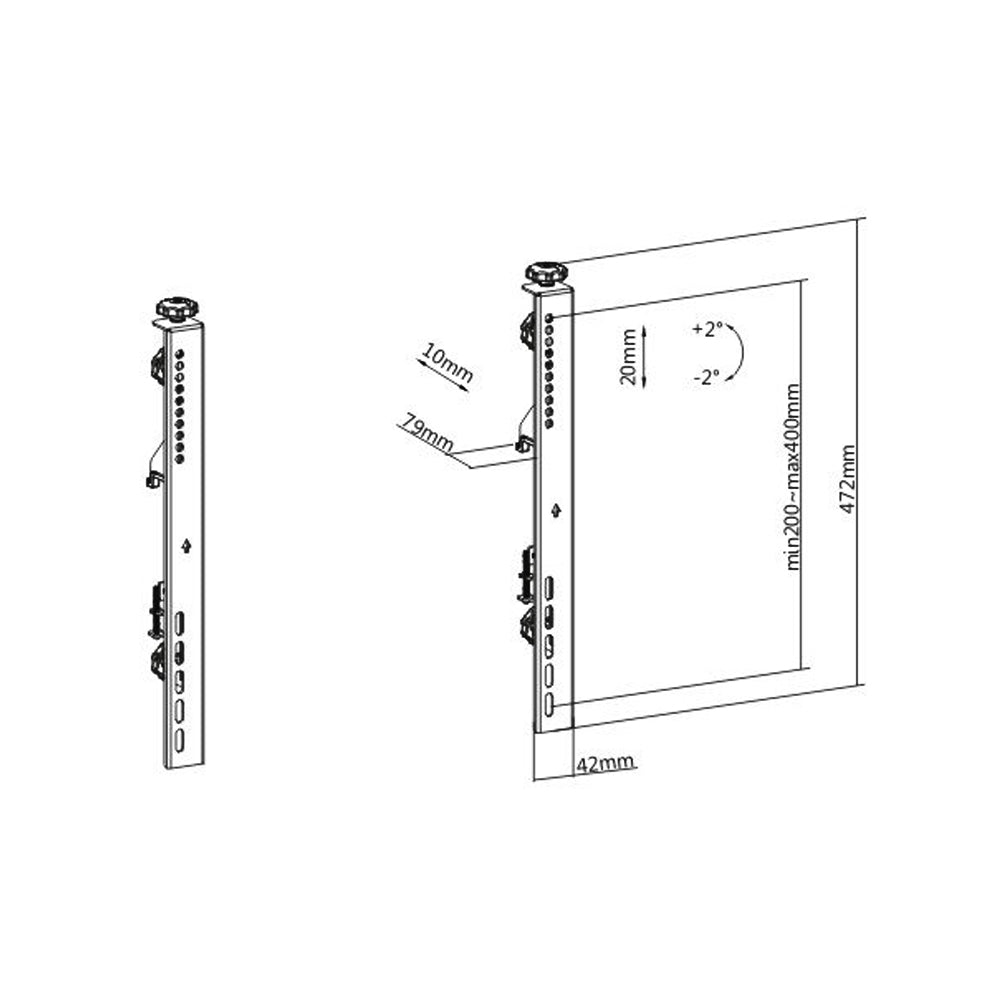

| Dimensions | 42 x 472 x 79 mm [1.7 x 18.6 x 3.1 inches] |
| Fine Adjustment | 10/20mm [0.39/0.79 inches] |
| Tilt |
-2° ~ +2° |
| Direction Indicator | Compliant |
| Compatibility | |
| MT-1600-CP | Video Wall Ceiling Mount - Ceiling Plate |
| MT-1600-P1750 | Video Wall Ceiling Mount - Connecting Pole 1750mm |
| MT-1600-P2250 | Video Wall Ceiling Mount - Connecting Pole 2250mm |
| MT-1600-R700 | Video Wall Ceiling Mount/Stand - Mounting Rail 700mm |
| MT-1600-R1500 | Video Wall Ceiling Mount/Stand - Mounting Rail 1500mm |
| MT-1600-R2000 |
Video Wall Ceiling Mount/Stand - Mounting Rail 2000mm |
| MT-1600-J | Video Wall Ceiling Mount - Joining Collar |
| Approvals | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 4 - M5x14 Screws 4 - M6x14 Screws 4 - M6x30 Screws 4 - M8x20 Screws 4 - M8x30 Screws 4 - Rectangular Washers 8 - Small Spacers 4 - Big Spacers 6 - ST6.3x55 Screws 6 - Concrete Anchors 6 - D6 Washers |
| Product Weight | 6.6 lbs [3 kg] |
