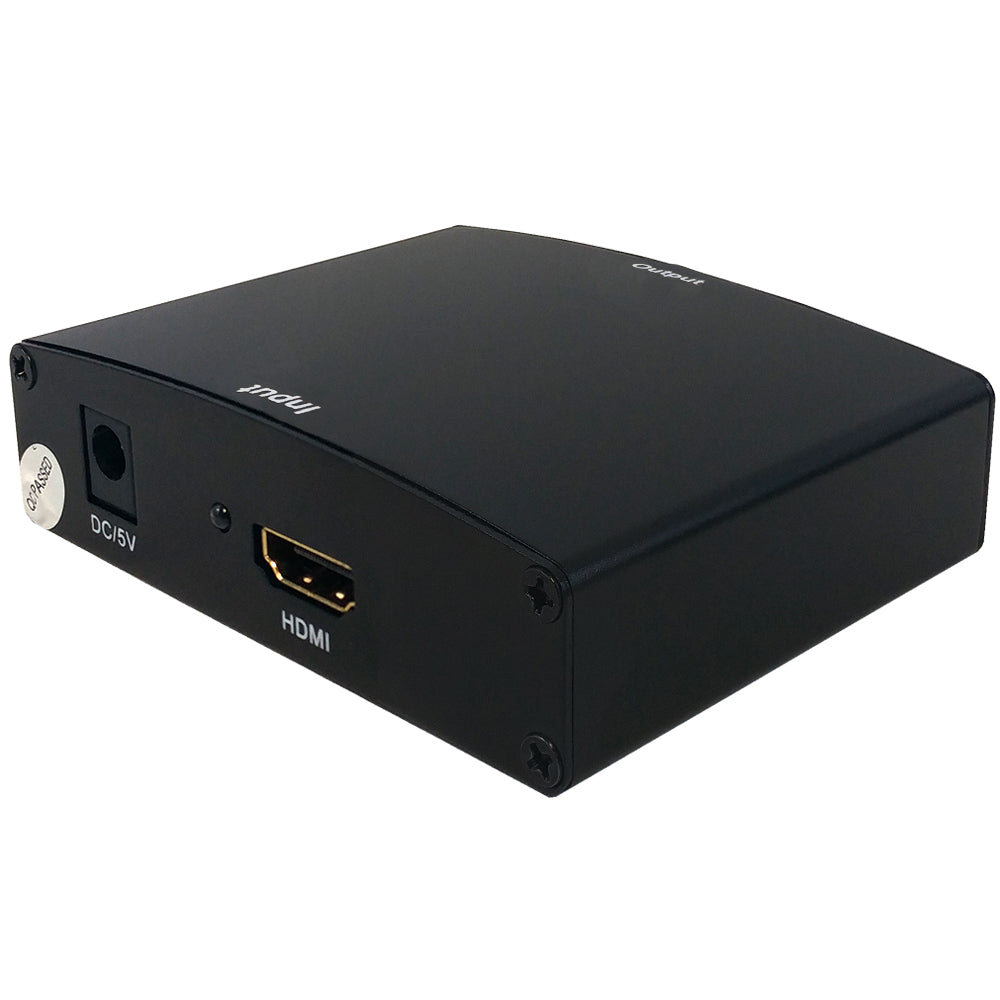

This converter consists of a HDMI input, a VGA output and a component RCA audio output. It is used to convert a HDMI digital video signal to a analog VGA video signal and a analog audio signal. A typical application would be to connect a DVD or Blu-Ray player to a projector or monitor with a VGA connection.
Key Features:
- Easy to Use: Install in seconds, no need of setting
- Conversion: It could convert complete HDMI into VGA video and R/L audio output
- Support HDCP 1.2
- Support 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth for HDMI Input
- Supports Analogue Video output up to UXGA and 1080p with 10-bit DAC
| Physical Characteristics |
|---|
| Color |
Black |
| Housing |
Metal |
| Power |
|---|
| Power Supply |
DC 5V 700mA Adapter |
| Connector(s) |
|---|
| Input |
1 - HDMI Female |
| Output |
1 - HD15 VGA Female
1 - Component RCA Audio Female (Red & White) |
| Operating Frequency |
|---|
| Vertical Frequency Range |
50/60Hz |
| Input Video Amplifier Bandwidth |
1.65Gpbs/165MHz |
| Performance |
|---|
| Resolution |
up to 1080p |
| Supports |
Projector/Monitor |
| Audio |
2 Channel Audio |
| Approvals |
|---|
| Power Adapter |
cETLus |
| Environmental |
|---|
| RoHS |
Yes |
| Packaging Information |
|---|
| Package Quantity |
1 |
| Product Weight |
0.3 lbs [0.1kg] |
| Package Weight |
0.8 lbs [0.4kg] |
| Contents |
|---|
| Included in Package |
1 - Converter |
|

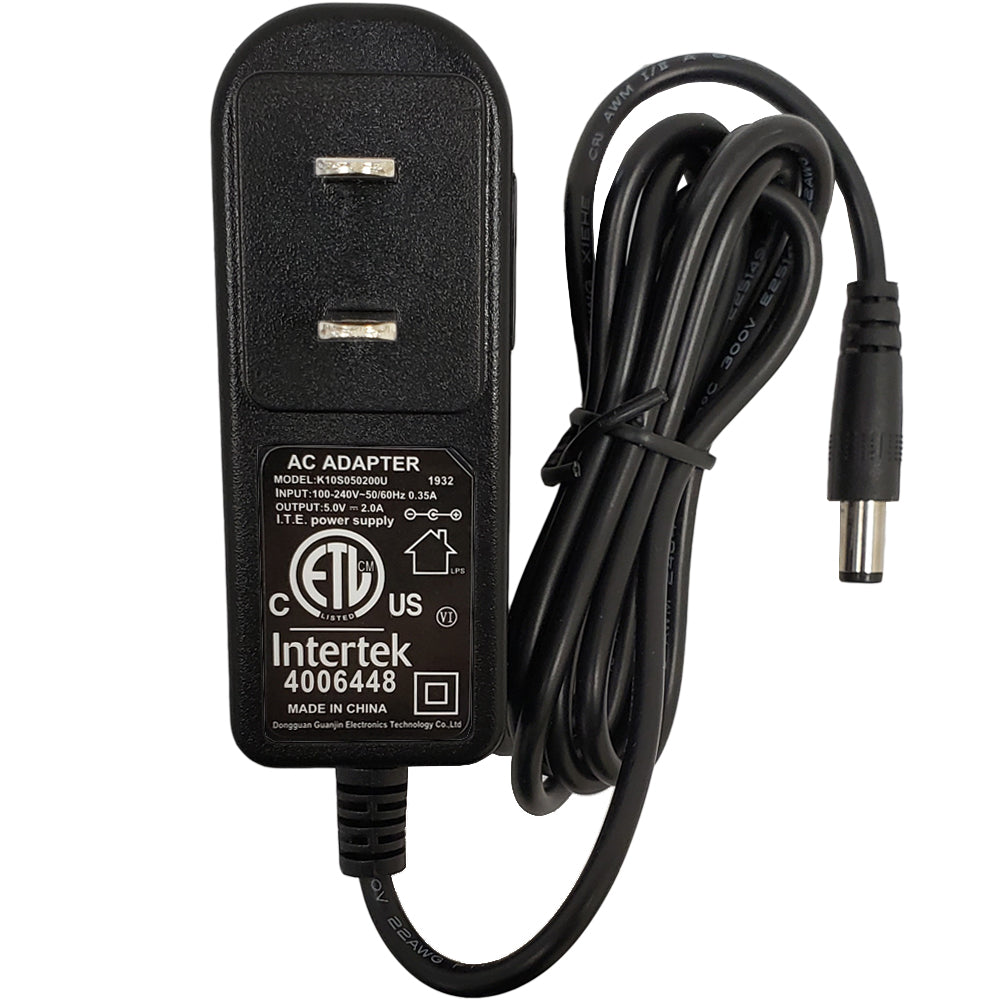

1 -DC Adapter |
