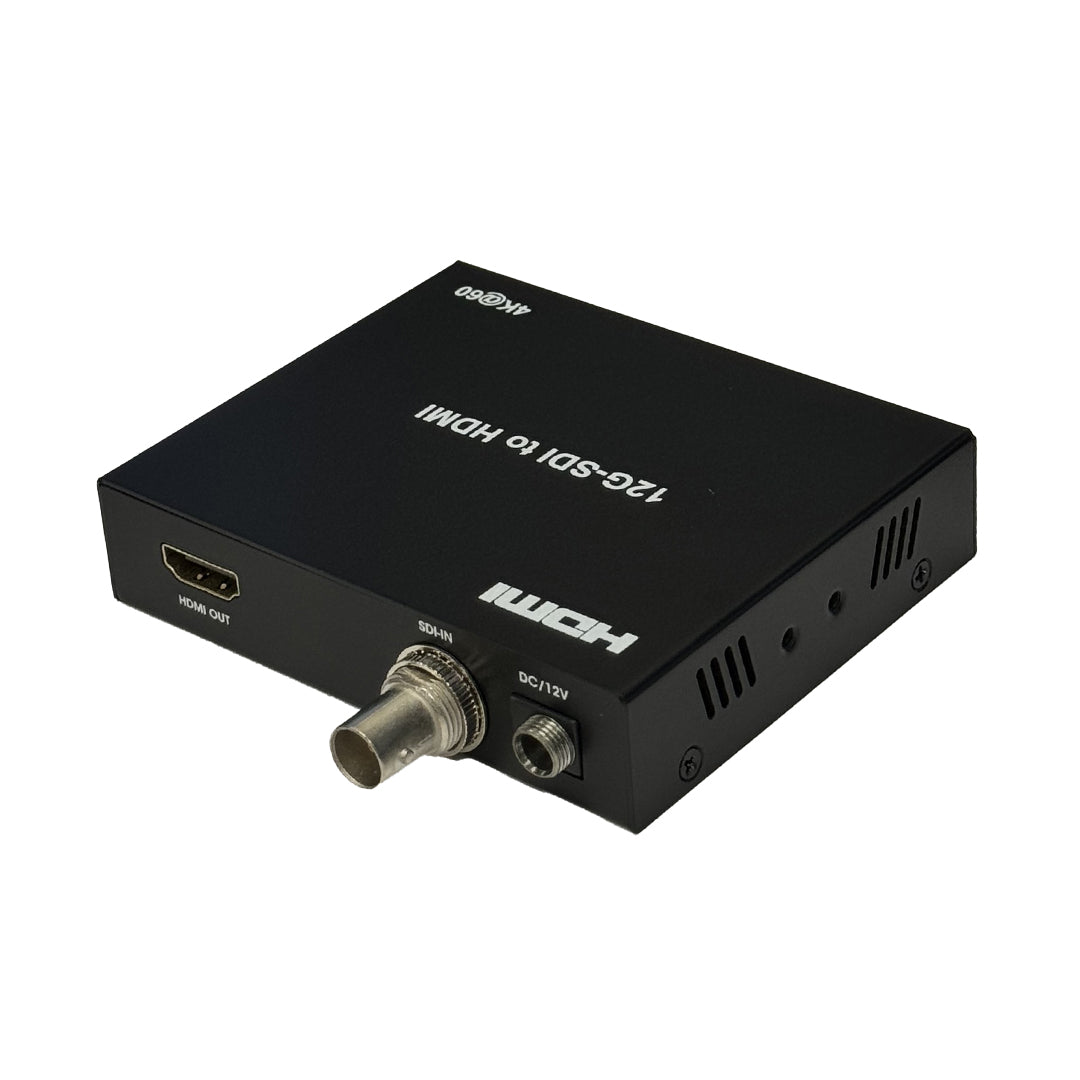

This HDMI video converter consists of oneĀ 12G SDI input and one HDMI output. It is used to convert 12G/6G/3G-SDI to HDMI and it supports 4K ultra HD @60Hz YUV 4:2:2.Ā This isĀ typically used in broadcast / film production applications.
| Physical Characteristics |
| Color |
Black |
| Housing |
Metal |
| Dimension (LxWxH) |
94 x 79 x 20mm |
| Operating Temperature |
-5 to +40ā(+23 to +95ā)
|
| Operating Humidity |
5 to 90%RH (No Condensation) |
| Power |
| Power Supply |
DC 12V/1A |
| Connector(s) |
| Input |
1 -Ā SDI |
| Output |
1 - HDMI |
| Performance |
| Video Format Supported |
4k@60hzYUV4:2:2/ 4k@30HZ/1080p/1080i/720p
|
| Maximum Resolution |
4Kx2K@60Hz, YUV 4:2:0 |
SDI Cable Distance
|
80m for 12G4k@60hz and 6G 4k@30hz , 120m for 3G 1080p |
| Audio Support |
PCM2.0 16-24bit 48KHz
|
Max. Power Consumption
|
12 Watts |
| Approvals |
| Power Adapter |
c(UL)us |
| Environmental |
| RoHS |
Yes |
| Packaging Information |
| Package Quantity |
1 |
| Product Weight |
0.80 lbs |
| Contents |
| Included in Package |
1 - Converter |
|

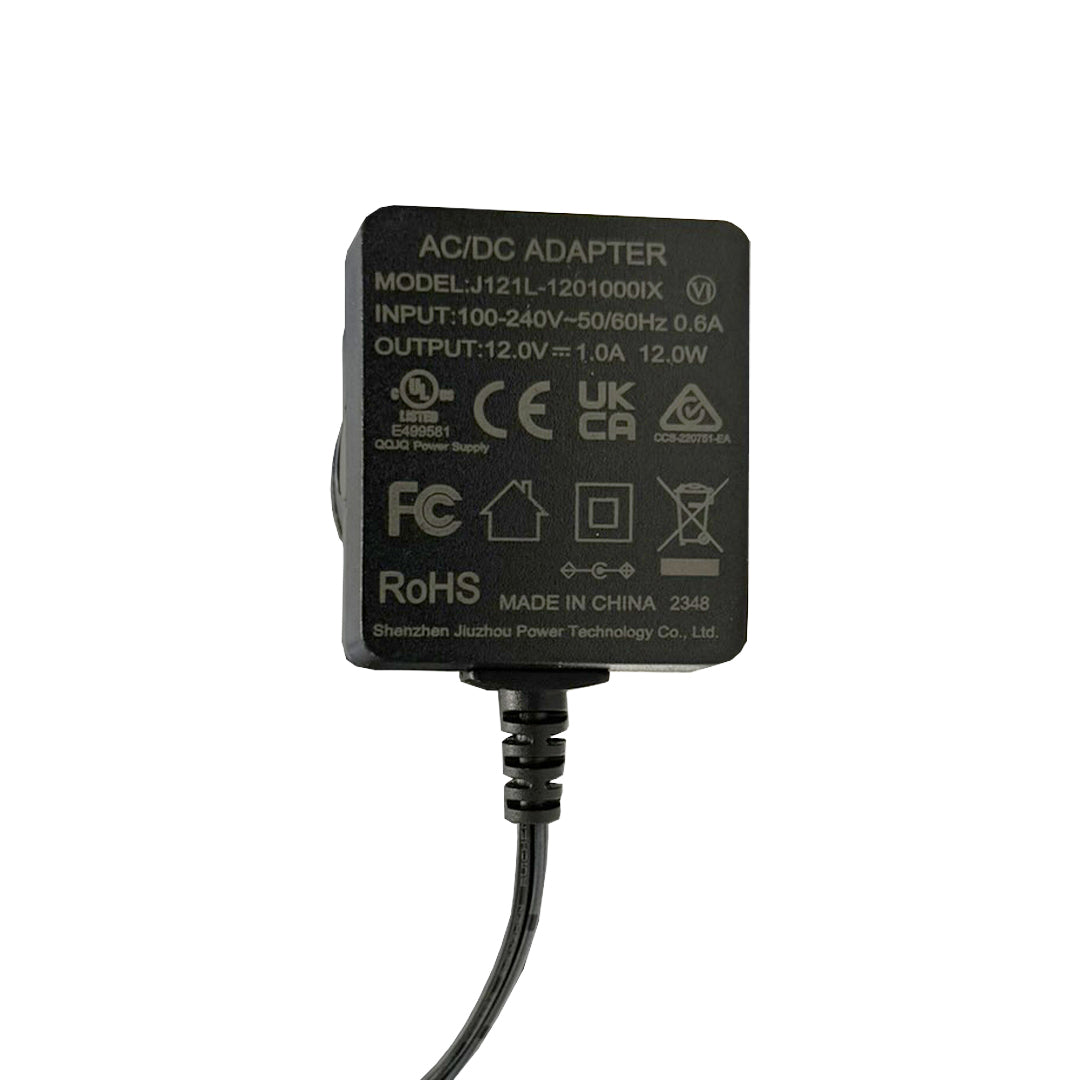

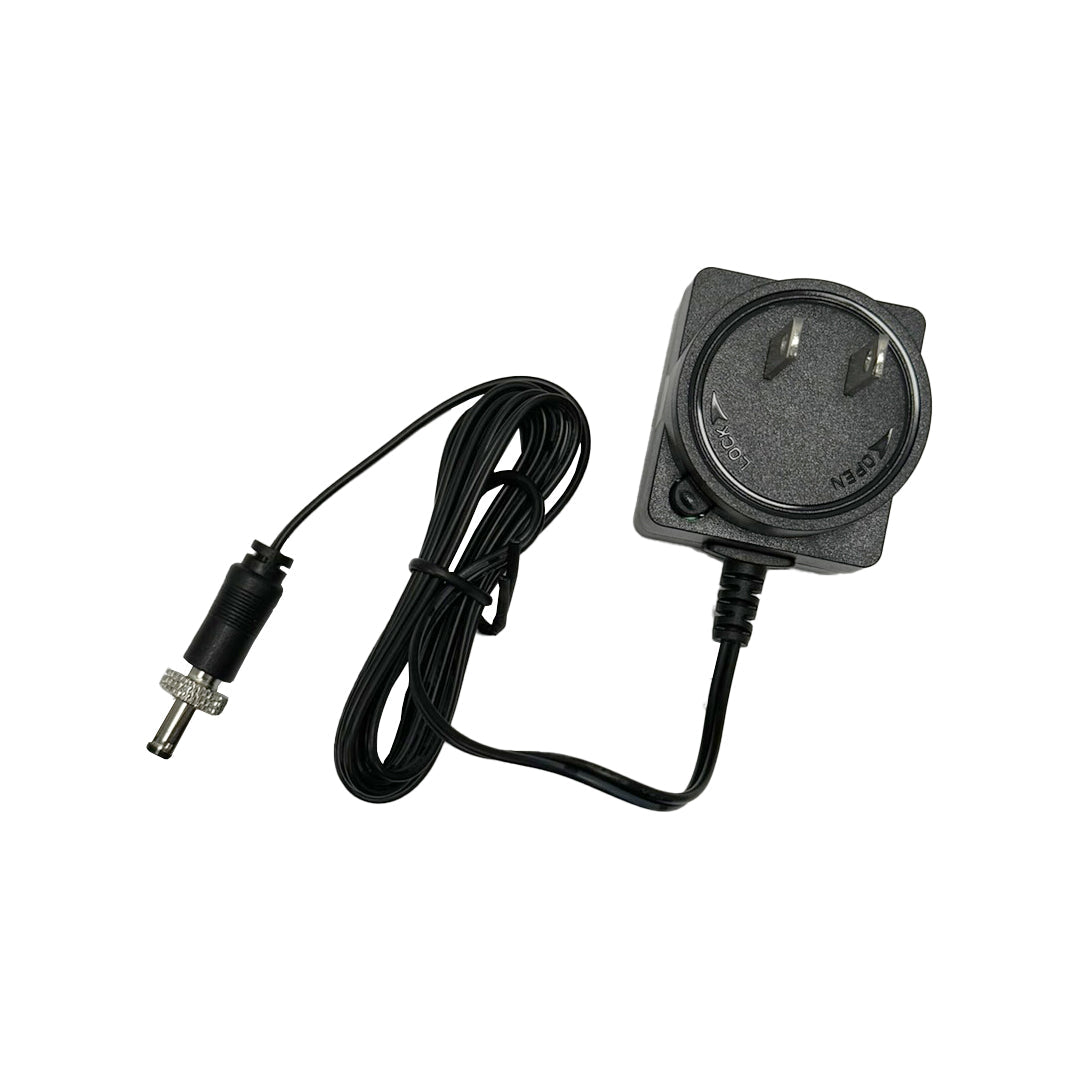

1 - DC 12V 1A Adapter |
|
1 - Manual |
|

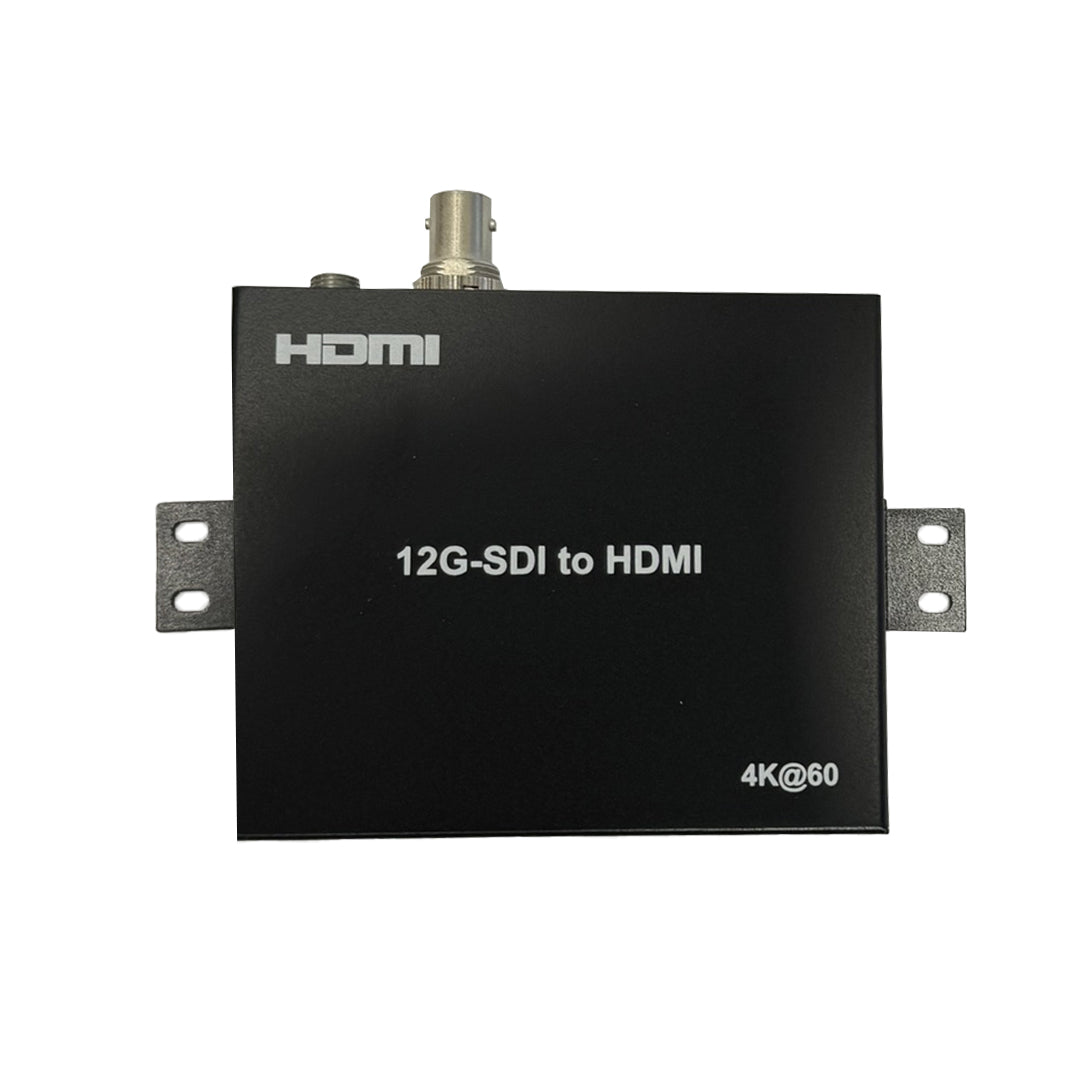

2 - Mounting Ears |
