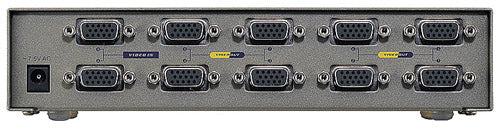

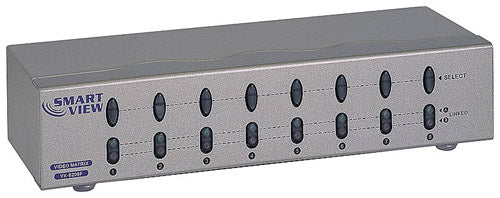

This VGA matrix enables you to select two VGA sources to eight VGA displays. It is typically used to connect VGA sources such as computers or laptops to VGA displays such as HDTVs, projectors or VGA monitors. Each output is independently controlled allowing you to select either input on any display. This matrix also boosts the VGA signal up to 65m (213ft).
| Physical Characteristics |
|---|
| Color |
Silver |
| Housing |
Metal Enclosure |
| Power |
|---|
| Power Supply |
7.5V AC 800mA |
| Connector(s) |
|---|
| Input |
2 - VGA Female |
| Output |
8 - VGA Female |
| Performance |
|---|
| Video Resolution |
1920 x 1440 Max @ 60Hz |
| Video Signal Boost |
65m (213ft) max |
| Approvals |
|---|
| Power Adapter |
cTUVus |
| Environmental |
|---|
| RoHS |
Compliant |
| Certification(s) |
|---|
| CE |
Compliant |
| FCC |
Compliant |
| Packaging Information |
|---|
| Package Quantity |
1 |
| Product Weight |
1.5 lbs [0.8kg] |
| Package Weight |
2.6 lbs [1.2kg] |
| Contents |
|---|
| Included in Package |
1 - VGA Video Matrix |
|
1 - AC to DC 7.5V 800mA Power Adapter |
|
1 - Manual |
