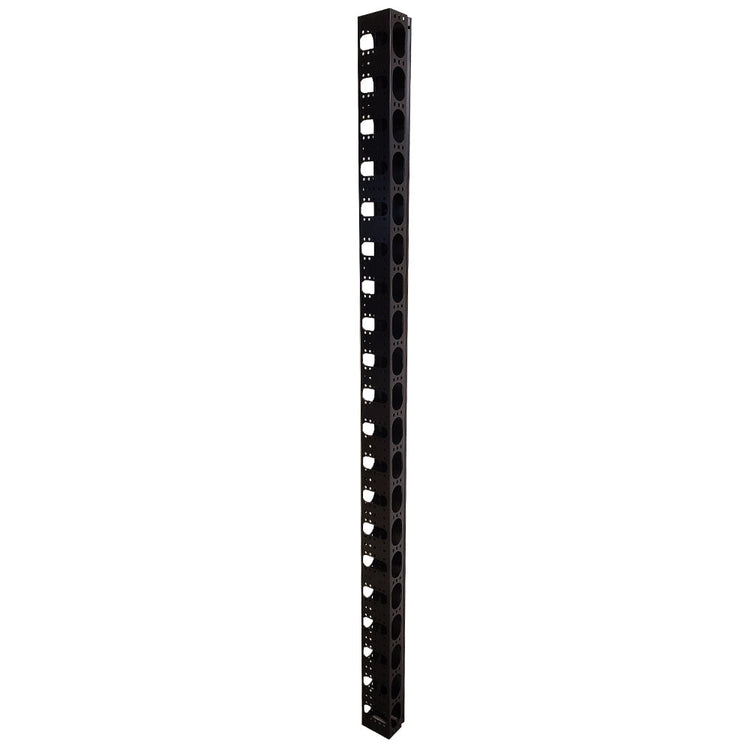

The vertical cable manager is 42U in height, has oval cable pass through openings and a hinged cover for easy access to cabling. It is typically used to organize cables running vertically on relay racks.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Cable Management Type | Duct |
| Finish | Powder Coated |
| Material | 1.5 mm Thick Steel |
| Height in Units | 42U |
| Height | 70.91 inches [1801.1mm] |
| Width | 3.7 inches [94.4mm] |
| Depth | 3.1 inches [78.6mm] |
| Mounting Hardware | Included |
| Compatibility | |
| Compatible Racks |
RM-105 - Relay Rack 42U (78 inch) - Knock Down Style RM-115 - 2-Post Relay Rack - 19 inch 44U, 10-32 Tapped Rails RM-125 - Four Post Relay Rack - 19 inch 42U, Square hole, Depth 23-36 inch RM-135 - Four Post Relay Rack - 19 inch 42U, Square hole, Depth 24-36 inch |
| Approvals | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 6 Pcs - M6 Screws – Black 6 Pcs - Flange Nuts - Black |
| Product Weight | 18.7 lbs |
| Box Dimensions in Inches | 72 x 4.5 x 4 |
