Description

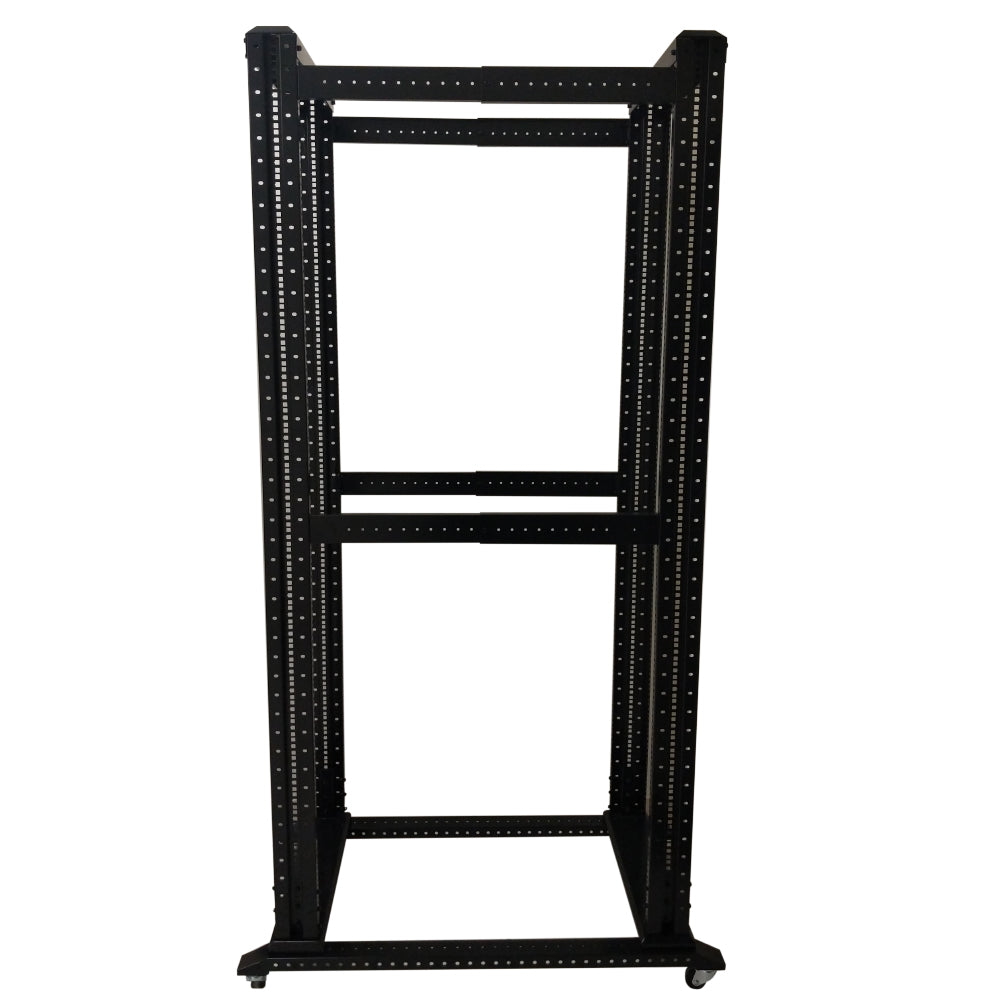

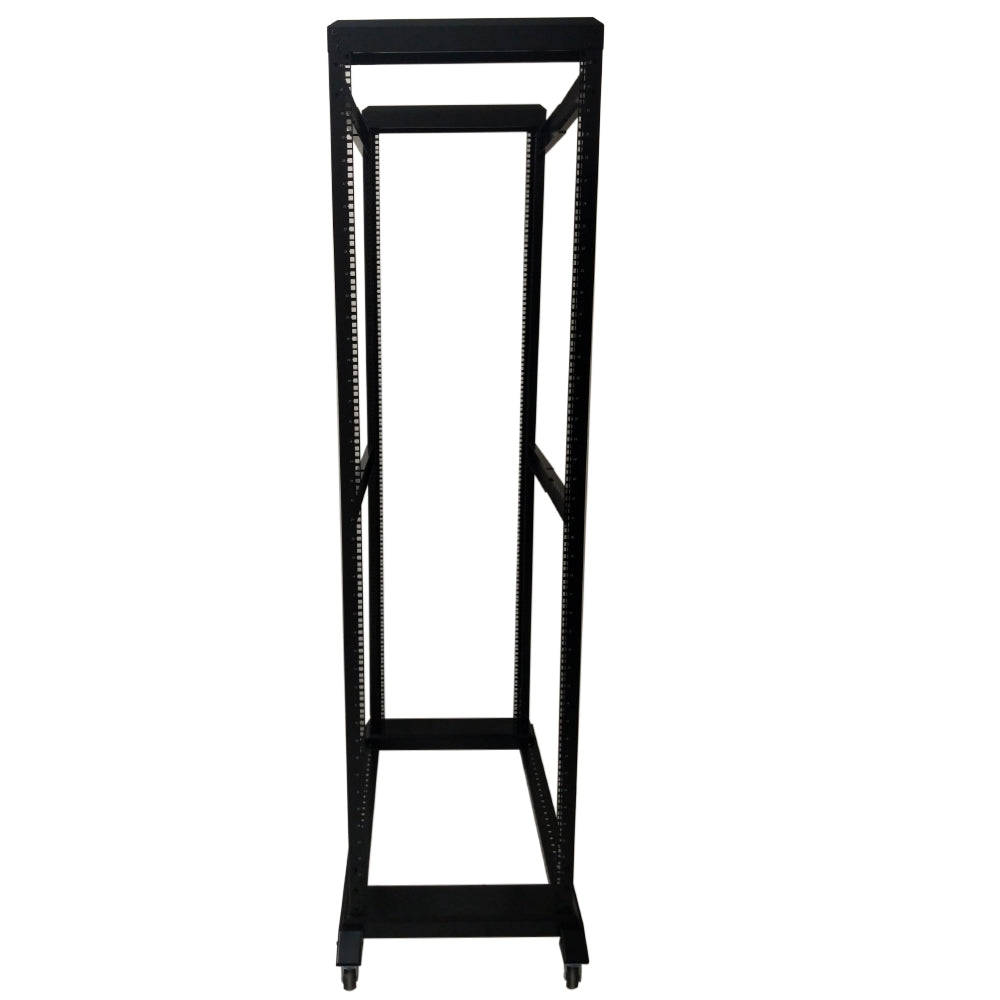

This 4-post relay rack is 19 inches wide, 42U in height and can be adjusted from 24 to 36 inches in depth. It is typically used to mount networking and audio/video rack mountable equipment.
| Physical Characteristics | |
|---|---|
| Color | Black - Powder Coated |
| Material | SPCC Cold Rolled Steel |
| Loading Capacity | Maximum 800kg |

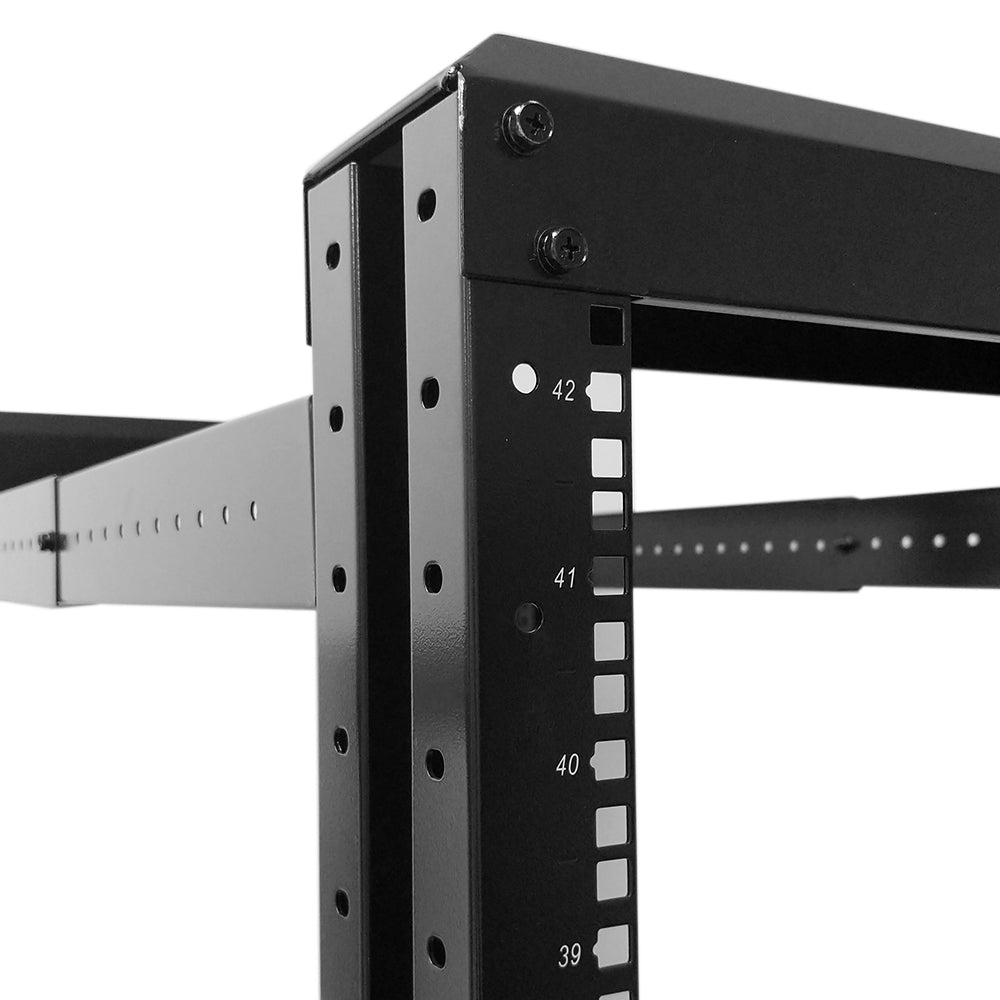

| Mounting Rails | 2 Pairs of Square Hole Rails |
| Mounting Rail Thickness | 1.7mm |

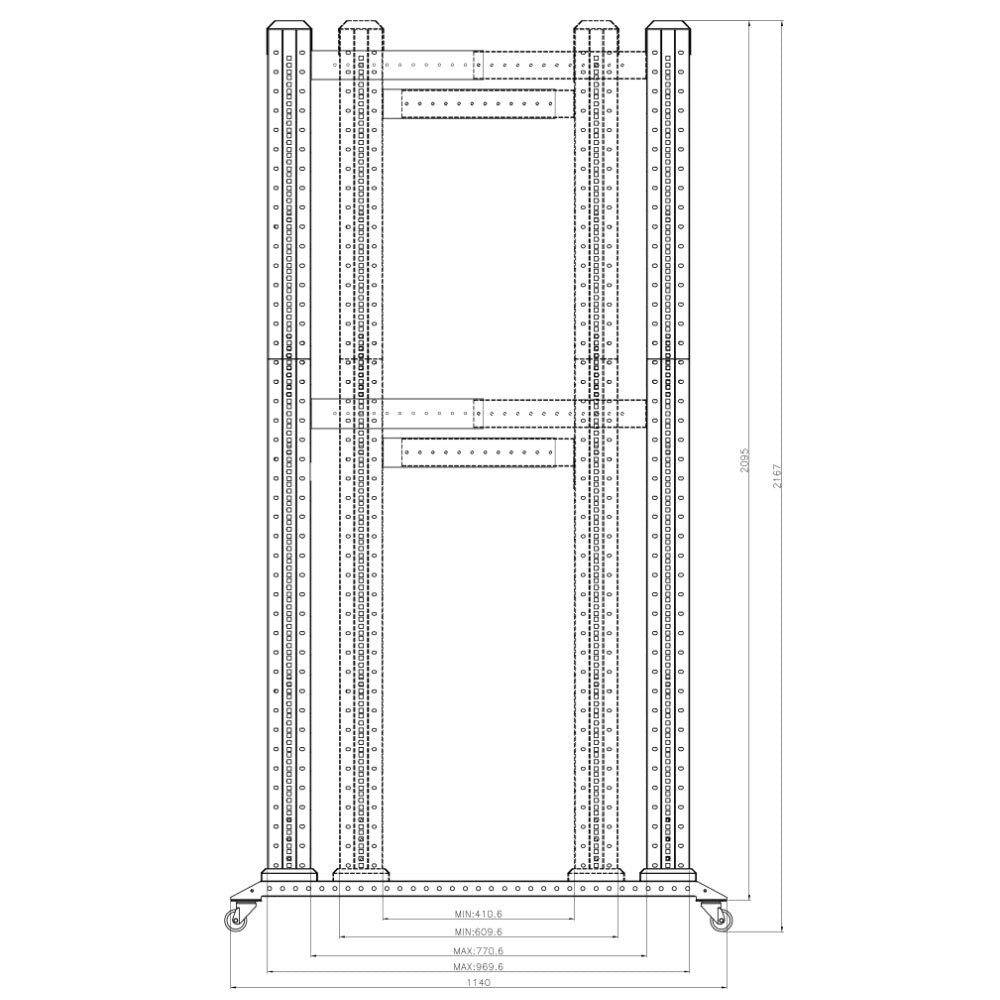

| Product Dimensions |
Ā 85Hx24Wx46D inches [316Hx61Wx117D cm] |
| Usable Mounting Dimensions |
42U, 19" Wide, Adjustable Depth from 24 to 36 inches |

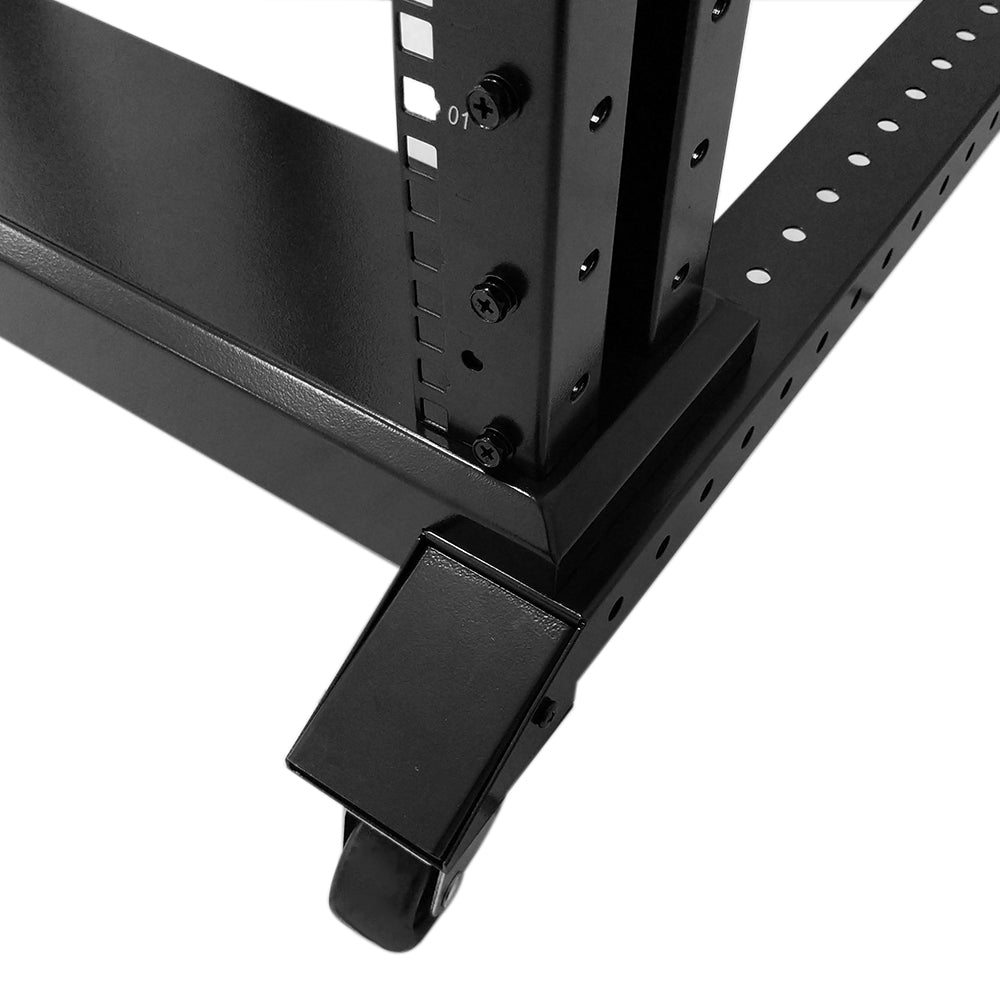

| Casters |
Included - Optional Use |
| Compatibility | |
| Compatible Vertical Cable Managers |
RM-450-42U - Vertical Cable Manager for Relay Rack - 42U RM-455-42U - 42U Vertical Cable Manager - Front Facing |
| Approvals | |
| ANSI/EIA | Yes |
| RS-310-D | Yes |
| IEC60297-2 | Yes |
| DIN41494 | Yes |
| PART1 | Yes |
| PART7 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 - 4-post Relay Rack - 19in 42U (Unassembled) |
| 40 - M6 Screws and Cage Nuts | |
| Assembly Hardware |
|
| Product Weight | 86 lbs [39 kg] |
Ā
Spec Sheets
Product Weights
| SKU | Weight | |
| RM-135 | 86.0 lb |
