Overview

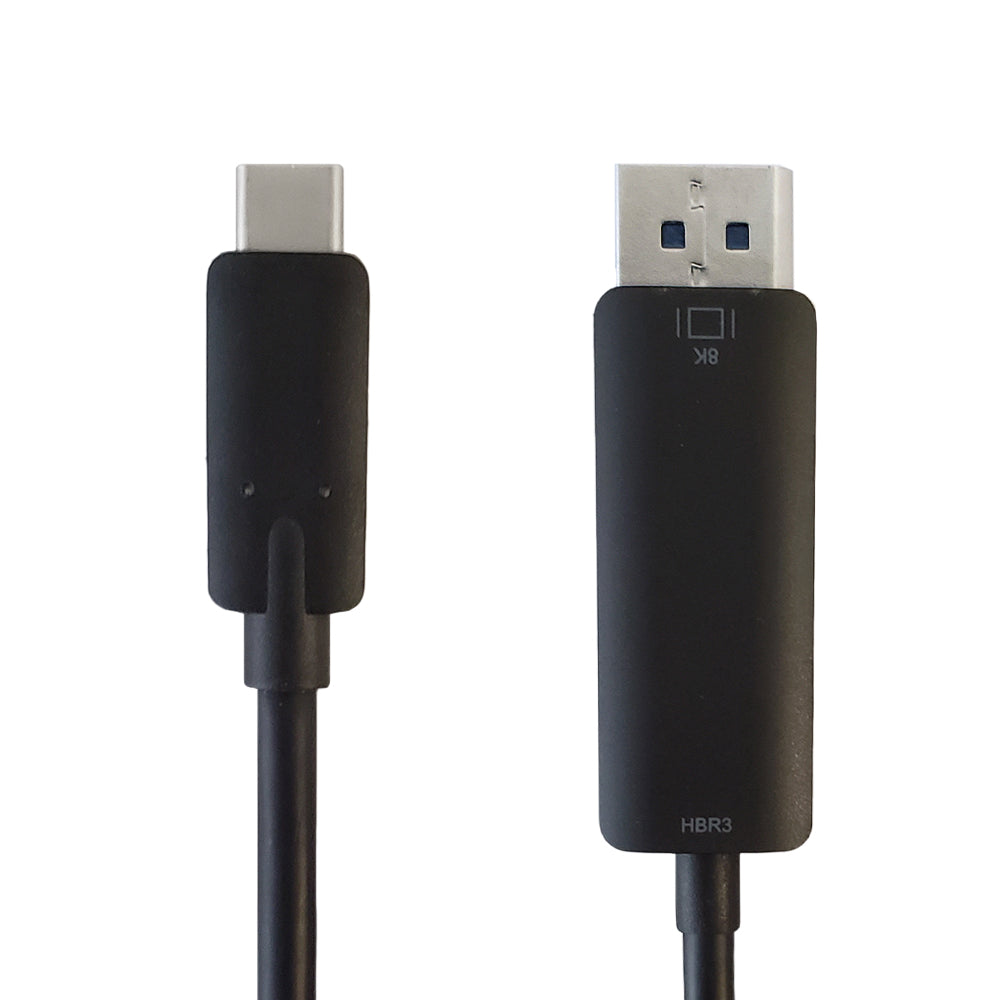

This Type-C male to DisplayPort male cable supports resolutions of Ultra HD 8K x 4K at 30Hz. It is typically used to connect a Type-C source (PC, Laptop, Mac Computer, Mac Laptop, etc.) to a DisplayPort display (monitors, etc.). This cable is uni-directional, therefore it will only work from a Type-C source to a DisplayPort display and not in the reverse direction.
Features
- Supports Type-C input and DisplayPort output
- Supports DisplayPort 1.4/1.2 Alt mode
- Supports per lane data rates of 8.1Gbps(HBR3),5.4Gbps (HBR2), 2.7Gbps (HBR) and
- 1.62Gbps (RBR)
- Support up to 48 bit deep color
- Supports DisplayPort resolution up to 7680*4320@30Hz
- USB bus power (no external power supply)
- HDR bypass
- HDCP bypass
|
|
Ultra High-Definition ResolutionThis cable supports maximum video resolutions up to a breath-taking Ultra HD 8K x 4K (7680 x 4320) @ 30Hz. Gold Plated ConnectorsThe gold plated connectors deliver optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Works Like an External Video CardThis cable can be used for various input devices - for example, connecting your PC to a monitor, in order to extend your PC, laptop, Mac computer or MacBook onto another display.
|
Application
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Wire Gauge | 28 AWG |
| Cable Type | Active |
| Temperature Rating | 0 ā to +45ā |
| Operating Humidity | 10% to 85 % RH (no condensation) |
| Storage Temperature | -10ā to +70ā |
| Storage Humidity | 5% to 90% RH (no condensation) |
| Power Supply | USB-C port Bus power |
| Connectors | |
| Connector A | Type-C Male |
| Connector B | DisplayPort Male |
| Performance | |
| Bandwidth | 18 Gbps |
| Resolution | Ultra HD 8k x 4k (7680 x 4320) @ 30Hz |
| 3D Support | No |
| DP Version | 1.4/1.2 Alt mode |
| Type-C Version | v3.0 |
| Approvals | |
| c(UL)us | Approved Cable |
| Certifications | |
| FCC | Compliant |
| CE | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Packaging Quantity | 1 |
| Warranty | |
| Warranty | Lifetime Limited |
| 3ft | 6ft | 10ft | 15ft |
|---|---|---|---|
| 0.19 lbs | 0.32 lbs | 0.53 lbs | 0.90 lbs |
| SKU | Options | Weight |
| UC-210-03 | 3ft | 0.15 lb |
| UC-210-06 | 6ft | 0.21 lb |
| UC-210-10 | 10ft | 0.33 lb |
| UC-210-15 | 15ft | 0.5 lb |
