Description
Overview

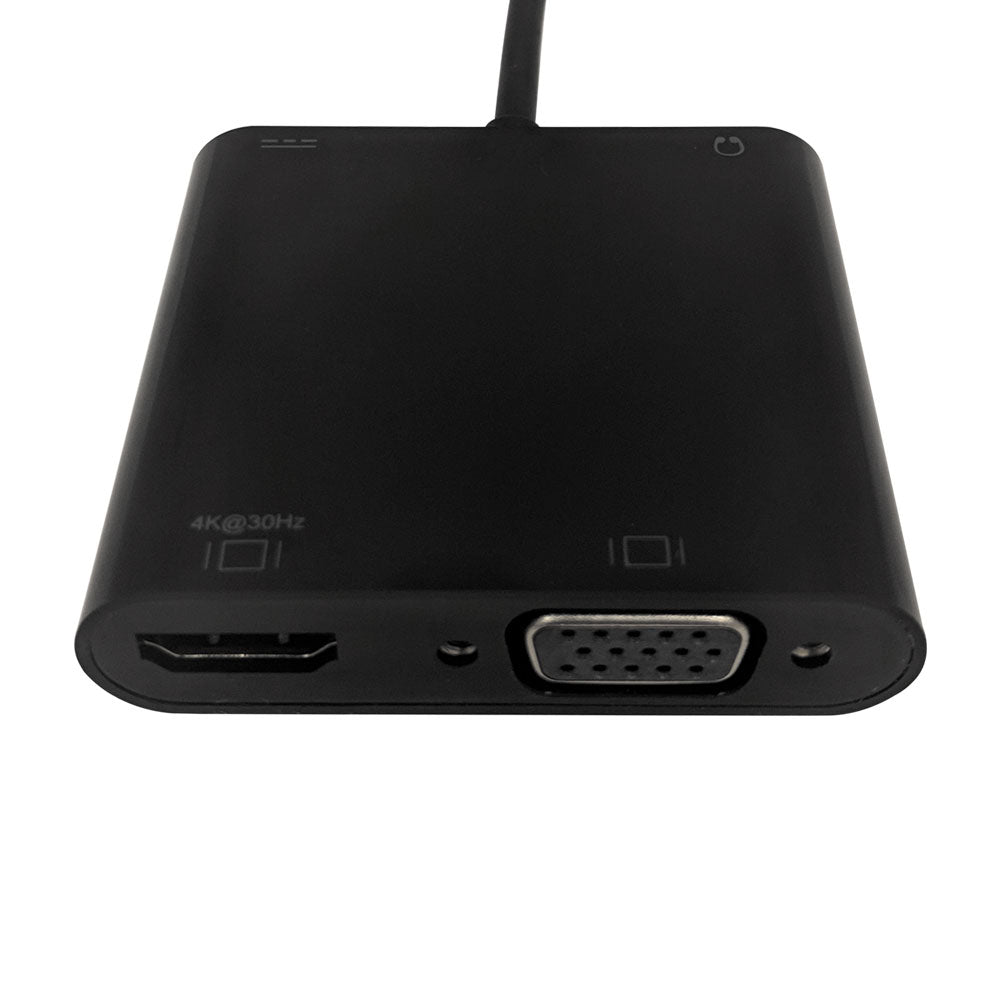

This USB 3.1 Type-C adapter consists of a USB 3.1 Type-C male on one end and a HDMI female, USB 3.1 Type-C female, 3.5mm stereo female and VGA female on the other end. It allows you to connect additional devices through your USB Type-C port and create a permanent or temporary workstation.
|
|
Expand your Type-C Devices ConnectivityThis USB Type-C adapter has an HDMI and VGA ports for connecting external displays simultaneously, a 3.5mm stereo audio female and a USB Type-C port with Power Delivery charging up to 100W. High Performance and Quality Video OutputThe HDMI output provides a simple Plug & Play connection to almost any HDMI display with an Ultra HD 4K resolution. The VGA output support monitors with 1920x1200 resolution.
|
Application
Specifications
| Physical Characteristics | |
|---|---|
| Cable Length | 6 inches |
| Color | Black |
| Connector Plating | Nickel |
| Connector(s) | |
| Connector A | USB 3.1 Type-C Male |
| Connector B | HDMI Female |
| USB 3.1 Type-C Female | |
| VGA Female | |
| 3.5mm Stereo Female | |
| Performance | |
| USB Type-C Port | Supports Data Transmission + Power Delivery Charging with Power up to 100W (20V/5A) |
| Display | Supports HDMI and VGA Simultaneously |
| HDMI Resolution | 4Kx2K@30Hz |
| VGA Resolution | 1920x1200@60Hz |
| Audio | Support Analog Audio Format |
| Supports |
HDCP |
| System Requirements | |
| Windows Compliant | Yes |
| Mac Compliant | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.09 lbs [0.04kg] |
Spec Sheets
Product Weights
| SKU | Weight | |
| AD-UC-HV01 | 0.09 lb |
