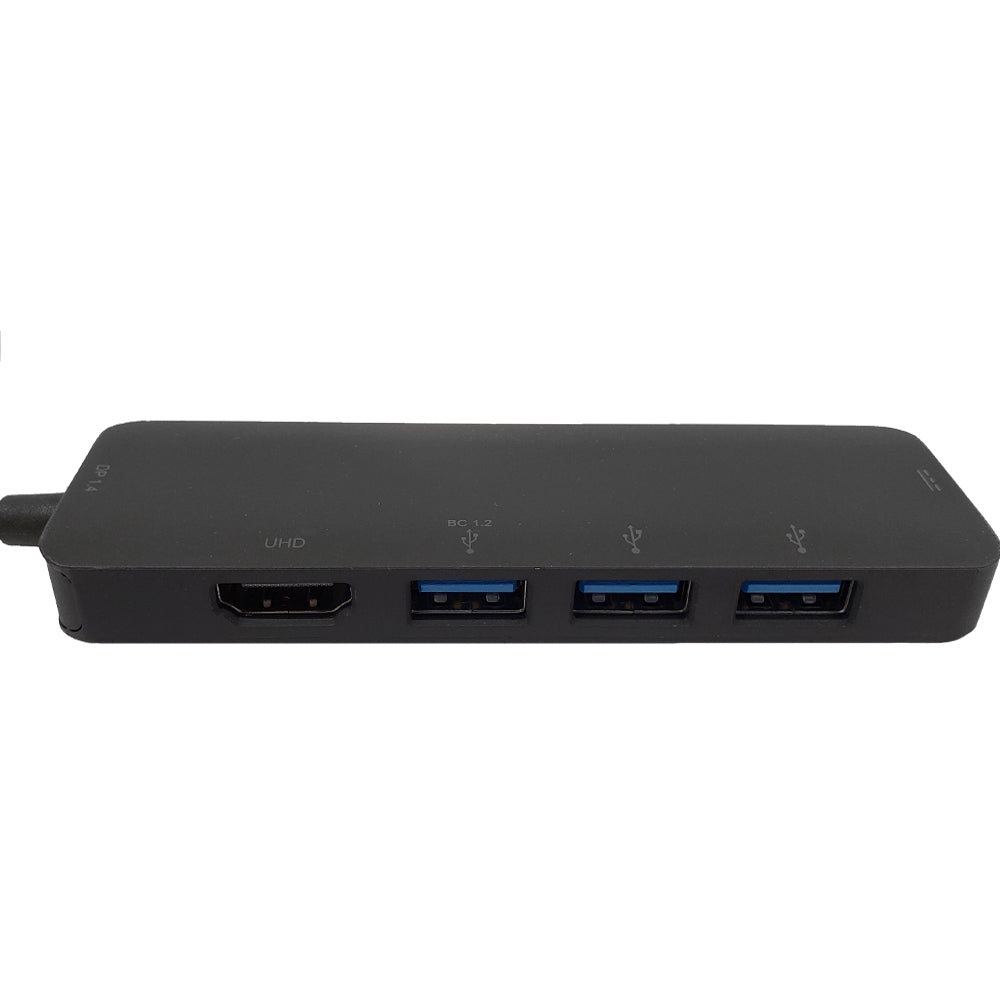

USB 3.1 Type-C to HDMI, 3x USB-A 3.0, USB Type-C - DP 1.4 Alt Mode - Black

USB AdaptersSKU: AD-UC-003
Price:
$32.59 USD
Stock:
In stock

Description

Overview

This USB 3.1 Type-C adapter consists of a USB 3.1 Type-C male connector on one end and a HDMI female, USB 3.1 Type-C female and three USB 3.0 A female ports on the other end. It allows you to connect additional devices through your USB Type-C port and create a permanent or temporary workstation. The USB Type-C port on the input side can be used to simultaneously charge your device. It can work on all Type-C and Thunderbolt 3 hosts that support DP Alt mode (including DP1.4 and DP1.2 Alt mode).

Note: When connecting a DP1.4 Alt mode supported host, the max resolution of HDMI is 4K@60Hz. When connecting a DP1.2 Alt mode supported host, the max resolution of HDMI is 4K@30Hz due to bandwidth limitation.

Expand your Type-C Devices Connectivity

This 5x1 USB Type-C docking station has an HDMI port for connecting external displays, three USB 3.0 A Super Speed ports and a USB Type-C port with Power Delivery charging.

High Performance and Quality Video Output

The HDMI output provides a simple Plug & Play connection to almost any HDMI display with an Ultra HD 4K resolution.

Fast Data Transfer

The Super Speed USB 3.0 ports supports faster data transfer up to 5Gbps per port.

DisplayPort Alt Mode

This adapter works on all Type-C and Thunderbolt 3 hosts that support DP Alt mode (including DP1.2 and DP1.4 Alt mode).


Application

Specifications

Physical Characteristics
Cable Length 6 inches
Color Black
Connector Plating Nickel
Connector(s)
Connector A USB 3.1 Type-C Male
Connector B HDMI Female
USB 3.1 Type-C Female
3x USB 3.0 A Female
Performance
USB Type-C Port Supports data transmission (Max 5Gbps), Max 7.5W(5V/1.5A)
Downstream charging, share max 7.5W downstream charging with USB-A port
Supports Power Delivery charging 100W (20V/5A)
Supports Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging the PD adapter in and out
8W dedicated to adapter, the remaining 92W power will be passed to charge for the host
HDMI Resolution Supports 4Kx2K@60Hz, 4:4:4, 8bit with 18Gbps bandwidth
Supports 6/8/10/12 bit color depth output
Supports output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2
Supports HDCP 2.2/1.4
Supports HDR
USB Type A Ports 1 USB-A supports BC 1.2 with max 7.5W (5V/1.5A) downstream charging, 3 USB-A share max 8W (5V/1.6A) downstream charging
Max 5Gbps bandwidth
Supports DP1.4 Alt mode, with bandwidth max 2 lanes 16.2Gbps (8.1Gbps per lane), Downward compatible with DP1.2 Alt mode
Note: To get max bandwidth, the host should support standard DP1.4 Alt mode with DSC3:1 and HBR3
Compatibility Compliant with USB 3.1,Backward Compatible with USB 3.0 and USB 2.0
System Requirements
Windows Compliant Yes
Mac Compliant Yes
Certifications
FCC Yes
CE Yes
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Product Weight 0.44 lbs [0.19kg]
