Overview

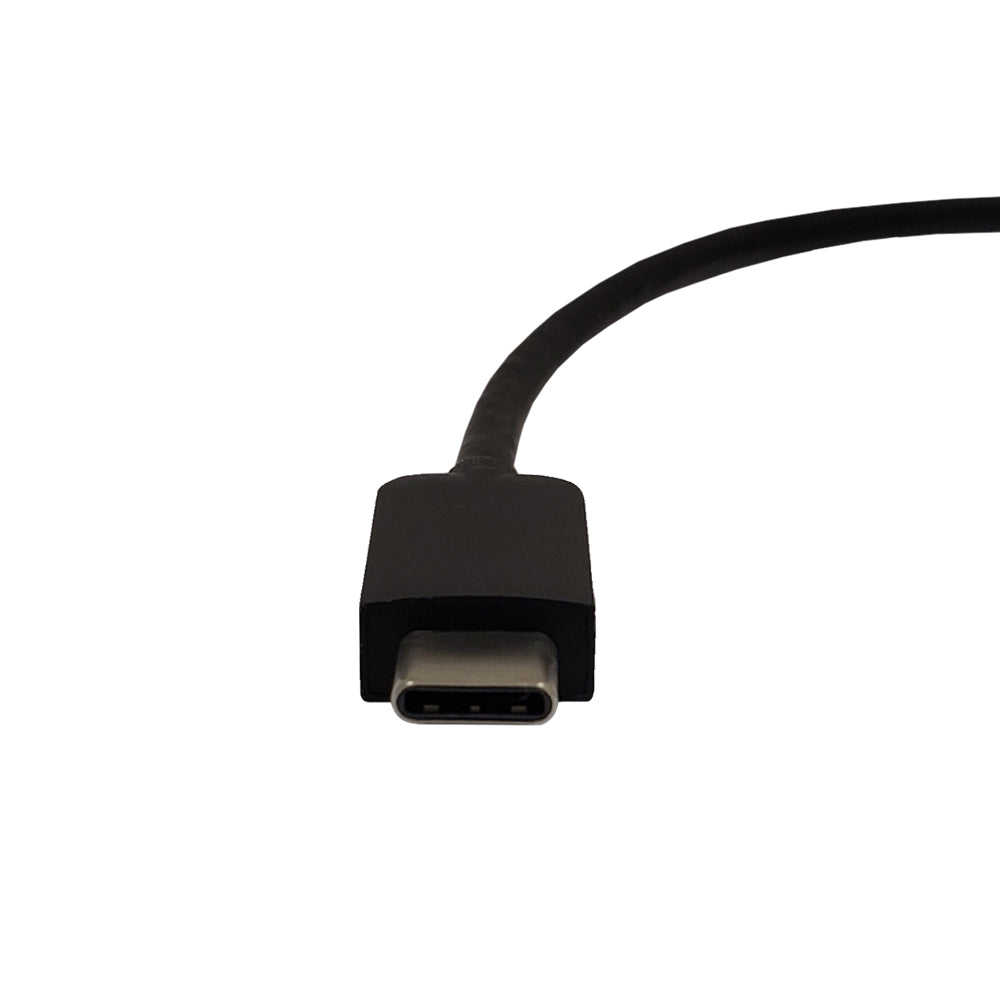

The USB Type-C to DisplayPort adapter consists of a USB 3.1 Type-C male
on one end and a DisplayPort v1.4 female on the other end. It allows you to
connect an extra display from your laptop's USB Type-C port. This adapter
provides video output of 8K@30Hz resolution, high throughput using the USB 3.1
bus and supports high definition monitors. The adapter can either extend or
mirror your source. It can work on all Type-C and Thunderbolt 3 hosts that
support DP Alt mode (including DP1.4 and DP1.2 Alt mode).
|
|
High Performance and Quality Video OutputThe DisplayPort output provides a simple Plug & Play connection to displays with an Ultra HD 8K resolution. DisplayPort Alt ModeThis adapter works on all Type-C and Thunderbolt 3 hosts that support DP Alt mode (including DP1.2 and DP1.4 Alt mode).
|
Specifications
| Physical Characteristics | |
|---|---|
| Cable Length | 6 inches |
| Color | Black |
| Connector Plating | Nickel |
| Connector(s) | |
| Connector A | USB 3.1 Type-C Male |
| Connector B | DisplayPort v1.4 Female |
| Performance | |
| Resolution | Up to 8K (7680 x 4320) @ 30Hz |
| Speed | Per lane data rates of 8.1Gbps (HBR3), 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR) |
| Version | DisplayPort 1.4/1.2 Alt mode |
| Power Source | USB Bus Power (No External Power Supply) |
| Compatibility | |
| Operating System | Windows Compliant |
| Mac Compliant | |
| Certifications | |
| FCC | Yes |
| CE | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.06 lbs [0.02kg] |
| SKU | Weight | |
| AD-UC-DP03 | 0.06 lb |
