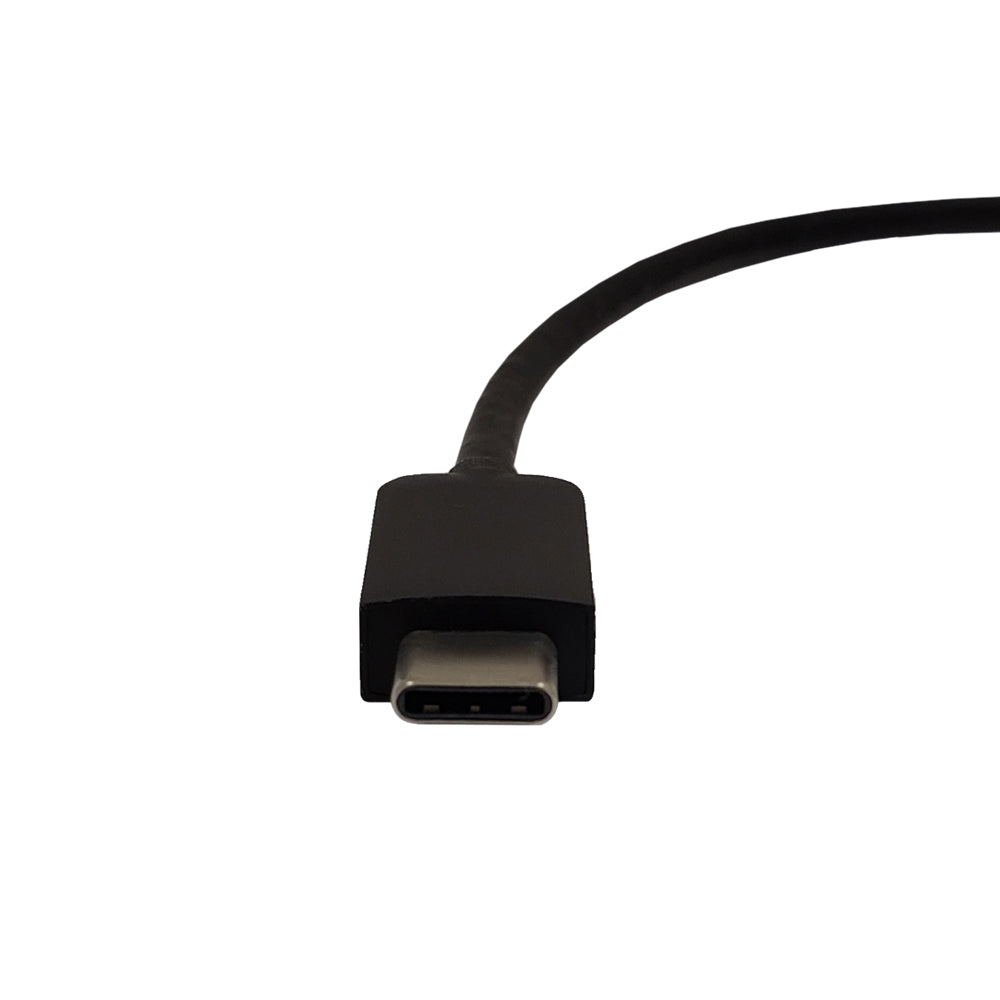

USB 3.1 Type-C to DisplayPort 4K@60Hz Adapter - DP 1.2 Alt Mode - Black

USB AdaptersSKU: AD-UC-DP02

Price:
Sale price$8.42 USD
Stock:
In stock

Description

Overview

The USB Type-C to DisplayPort adapter consists of a USB 3.1 Type-C male on one end and a DisplayPort v1.4 female on the other end. It allows you to connect an extra display from your laptop's USB Type-C port. This adapter provides video output of 4K@60Hz resolution, high throughput using the USB 3.1 bus and supports high definition monitors. The adapter can either extend or mirror your source. It can work on all Type-C and Thunderbolt 3 hosts that support DP Alt mode (including DP1.4 and DP1.2 Alt mode).

Please note, when trying to use this adapter to convert DP to HDMI, an active DP to HDMI cable must be used. See here.

High Performance and Quality Video Output

The DisplayPort output provides a simple Plug & Play connection to displays with an Ultra HD 4K (3840x2160)@60Hz resolution.

DisplayPort Alt Mode

This adapter works on all Type-C and Thunderbolt 3 hosts that support DP 1.2 Alt mode.


Specifications

Physical Characteristics
Cable Length 6 inches
Color Black
Connector Plating Nickel
Operating Temperature 0℃ to +45℃
Operating Humidity 10% to 85% RH (No Condensation)
Storage Temperature -10℃ to +70℃
Storage Humidity 5% to 90% RH (No Condensation)
Connector(s)
Connector A USB 3.1 Type-C Male
Connector B DisplayPort v1.2 Female
Performance
Resolution Up to 4K (3840 x 2160) @ 60Hz
Version DisplayPort 1.2 Alt mode
Power Source USB Bus Power (No External Power Supply)
Compatibility Compliant with USB 3.1
Backward Compatible with USB 3.0 and USB 2.0
System Requirements
Operating System Windows Compliant
Mac Compliant
Certifications
FCC Yes
CE Yes
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Product Weight 0.06 lbs [0.02kg]
