Description

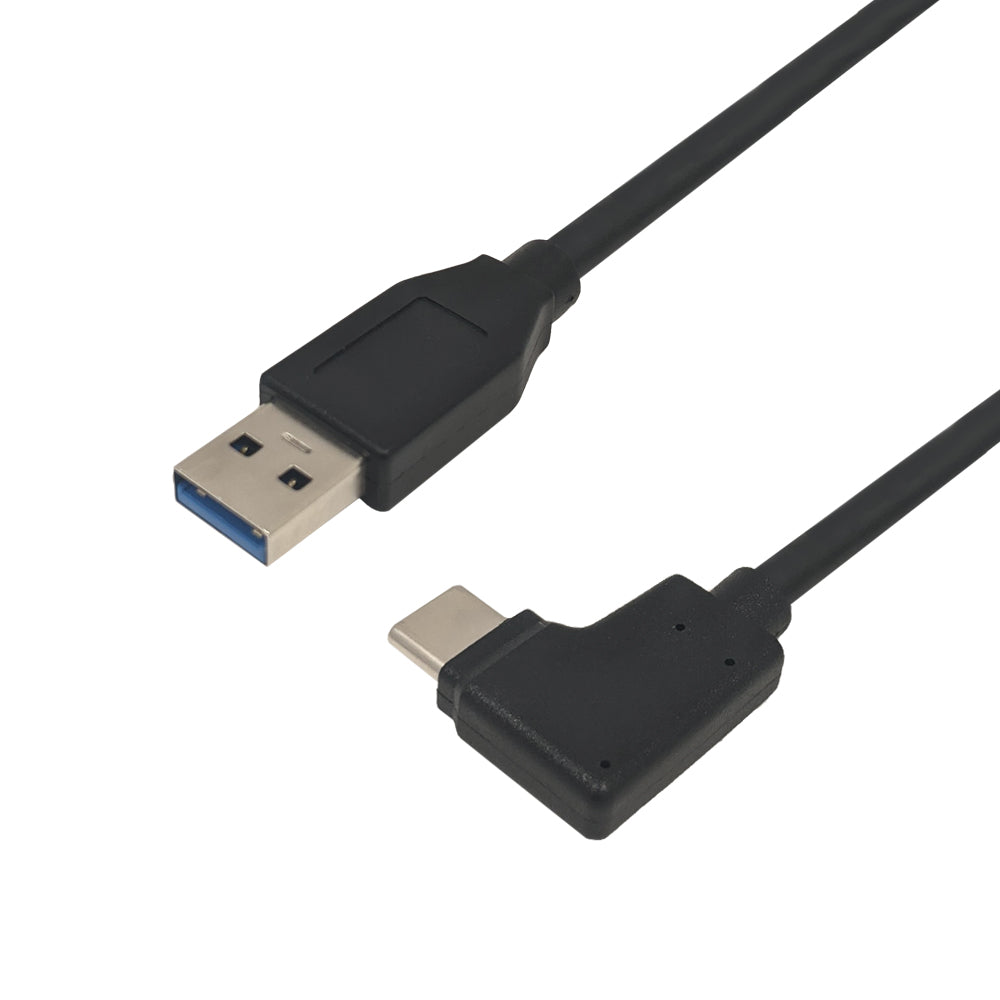

This USB 3.1 cable consists of a USB right angle or left angle Type-C male on one end and a USB straight A male on the other end. It is capable of transferring data at 10Gbps minimum and is typically used to connect USB 3.1 peripherals as well as charge and sync USB Type-C mobile devices. USB 3.1 is backwards compatible with previous generation USB devices and is also compatible with Thunderbolt 3 ports.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel Plated |
| Contact Plating | Gold Plated |
| Cable Diameter | 4.6 mm |
| Jacket Material | PVC - Polyvinyl Chloride |
| Strain Relief | Molded PVC |
| Connector(s) | |
| Connector A | USB 3.1 Type-C Right/Left Male |
| Connector B | USB 3.1 A Straight Male |
| Performance | |
| Rating | USB 3.1 SuperSpeed - Gen 2 |
| Speed | 10 Gbps |
| Power | 3 Amps |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1.5ft | 3ft | 6ft |
|---|---|---|
| 0.06 lbs | 0.12 lbs | 0.24 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| USB-380-01.5 | 1.5ft | 0.07 lb |
| USB-380-03 | 3ft | 0.15 lb |
| USB-380-06 | 6ft | 0.21 lb |
