Description
Overview

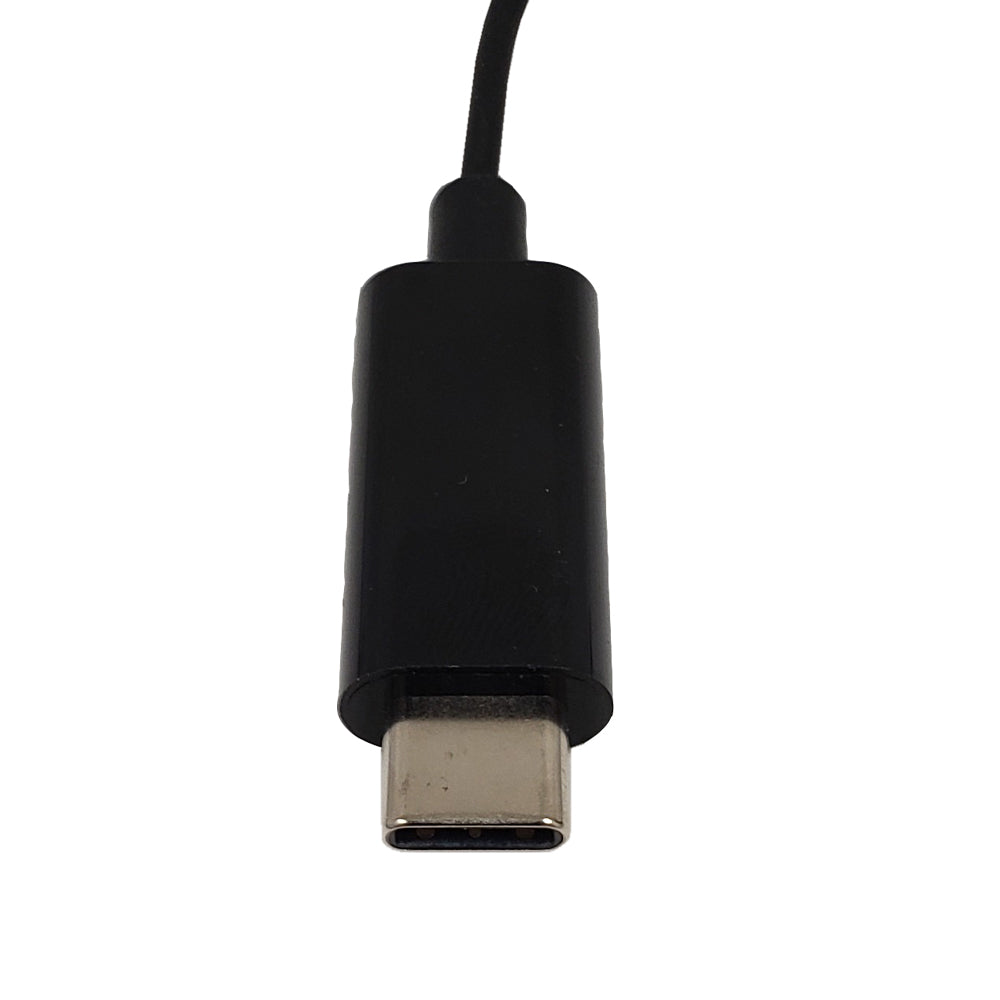

The USB Type-C to 3.5mm adapter consists of a USB 3.1 Type-C male on one end and a 3.5mm stereo female on the other end. It allows you to connect headphones/microphone to a USB Type-C device (such as a laptop or cell phone).
|
Compatible for Newer Type-C DevicesNewer devices often do not come with a 3.5mm female port. This adapter connects traditional 3.5mm headphones and/or microphone to Type-C compatible cellphones or laptops! High PerformanceThis adapter supports digital high-resolution audio, has audio output of 100dB SNR and microphone input of 94dB SNR.
|
Application
Specifications
| Physical Characteristics | |
|---|---|
| Cable Length | 3 inches |
| Color | Black |
| Material | ABS |
| Connector(s) | |
| Connector A | USB 3.1 Type-C Male |
| Connector B | 3.5mm Stereo Female (4-Pole) |
| Performance | |
| Sampling Frequency | 96KHz |
| Signal Noise Ratio | 93dB |
| Background Noise | -94dB |
| Standby Power Consumption | 2mA |
| Operating Power Consumption | 75mA |
| Compatibility | Also compatible with Apple earphones with built-in control |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.02 lbs [0.01kg] |
Spec Sheets
Product Weights
| SKU | Weight | |
| AD-UC-AD03 | 0.02 lb |
