USB 3.0 A Male to A Female SuperSpeed Cable

USB CablesSKU: USB-302-03

Length: 3ft
Price:
Sale price$3.22 USD
Stock:
In stock

Description

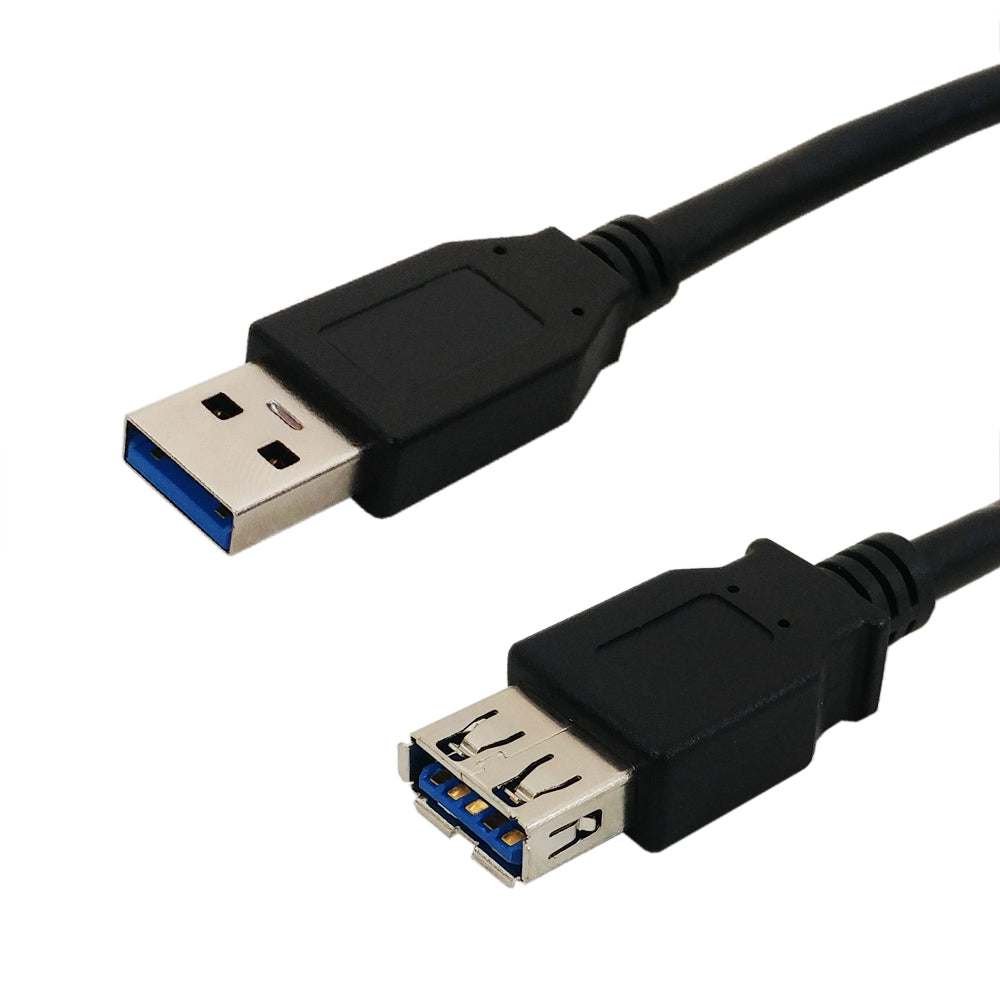

This USB 3.0 cable consists of a USB A male on one end and a USB A female on the other end. It is typically used to extend a USB A cable.

Physical Characteristics
Color Black
Connector Plating Nickel Plated
Contact Plating Gold Plated
Cable Diameter 5.5 mm
Wire Gauge 28AWG (data) / 24AWG (power)
Jacket Material PVC - Polyvinyl Chloride
Cable Shielding 85% ALMG
Strain Relief Molded PVC
Temperature Rating 80 deg C
Cable Voltage Rating 30V
Connector(s)
Connector A 9-pin USB 3.0 Type A SuperSpeed Male
Connector B 9-pin USB 3.0 Type A SuperSpeed Female
Performance
Rating USB 3.0 SuperSpeed Compliant Cable
Speed 5 Gbps Max
Compatibility Backwards Compatible with USB 3.0 and 2.0
Approvals
UL Yes - Cable
cUL Yes - Cable
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
3ft 6ft 10ft 15ft
0.15 lbs 0.20 lbs 0.35 lbs 0.45 lbs
SKU Options Weight
USB-302-03 3ft 0.15 lb
USB-302-06 6ft 0.21 lb
USB-302-10 10ft 0.33 lb
USB-302-15 15ft 0.5 lb
