Description

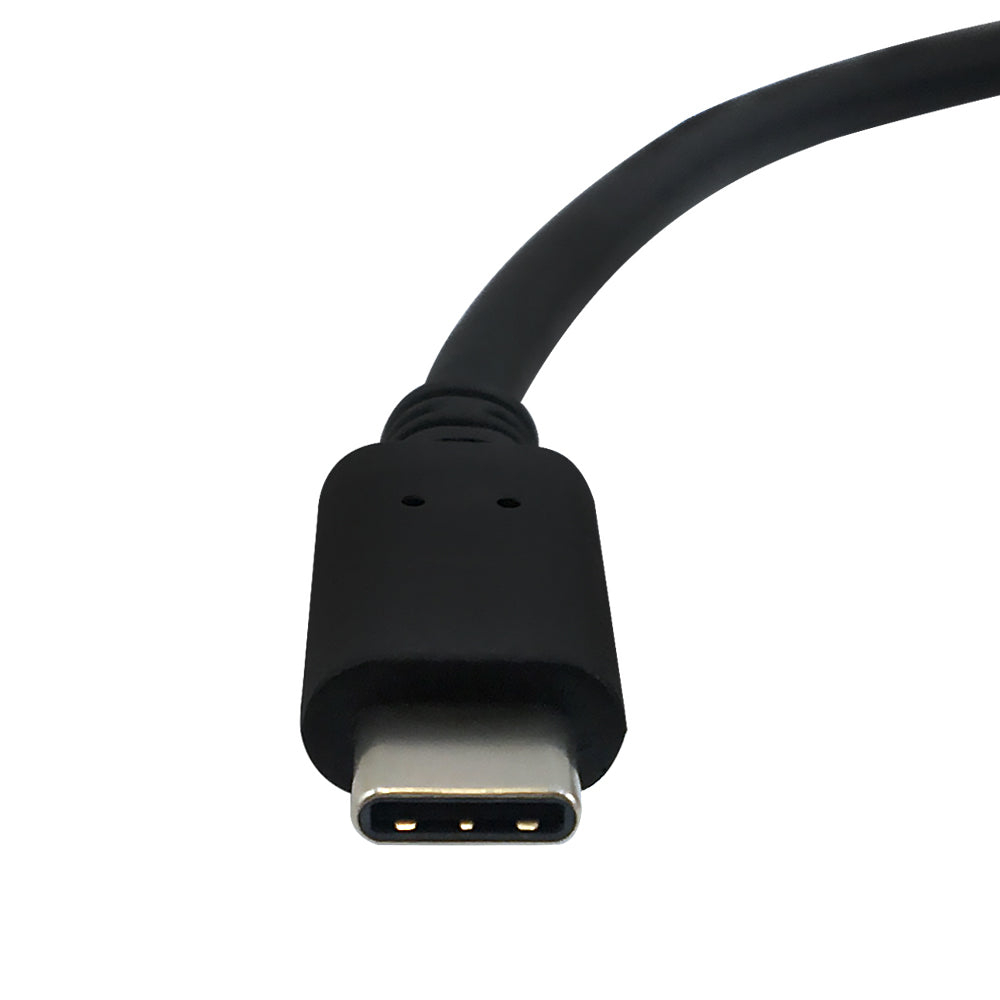

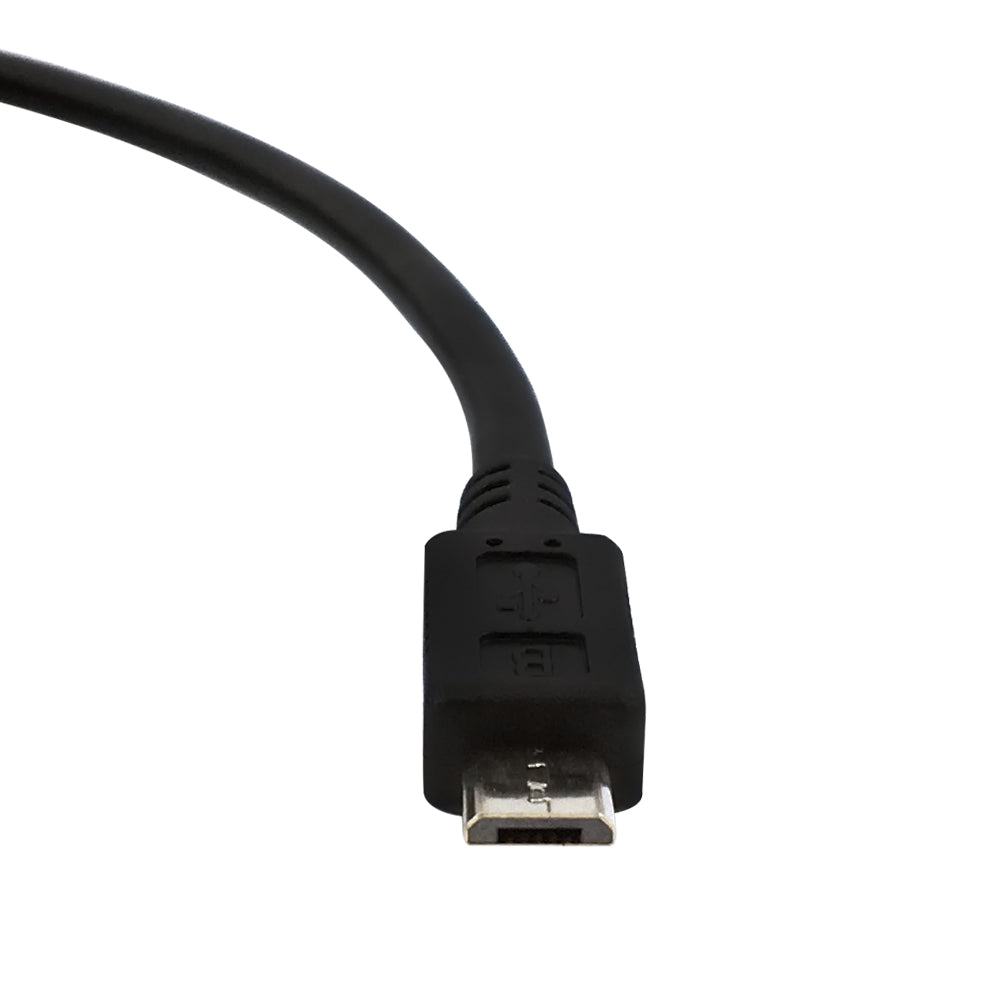

This USB 2.0 cable consists of a USB type-C male on one end and a USB Micro-B male on the other end. It is capable of transferring data at 480Mpbs and is typically used to connect a Micro-USB 2.0 device to a newer USB Type-C laptop or desktop computer. USB Type-C is also compatible with Thunderboltā¢ 3 ports.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel Plated |
| Contact Plating | Gold Plated |
| Cable Diameter | 3.0 mm |
| Wire Gauge | 30AWG (data) / 24AWG (power) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Strain Relief | Molded |
| Connector(s) | |
| Connector A | 9-pin USB 2.0 Micro-B Male |
| Connector B | 9-pin USB 2.0 Type-C Male |
| Performance | |
| Rating | USB 2.0 |
| Speed | 480 Mbps |
| Compatibility | Backwards Compatible Previous Generation USB |
| Power | 3 Amp |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1.5ft | 3ft | 6ft | 10ft | 15ft |
|---|---|---|---|---|
| 0.03 lbs | 0.05 lbs | 0.11 lbs | 0.18 lbs | 0.27 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| USB-350-01.5 | 1.5ft | 0.07 lb |
| USB-350-03 | 3ft | 0.15 lb |
| USB-350-06 | 6ft | 0.21 lb |
| USB-350-10 | 10ft | 0.33 lb |
| USB-350-15 | 15ft | 0.5 lb |
