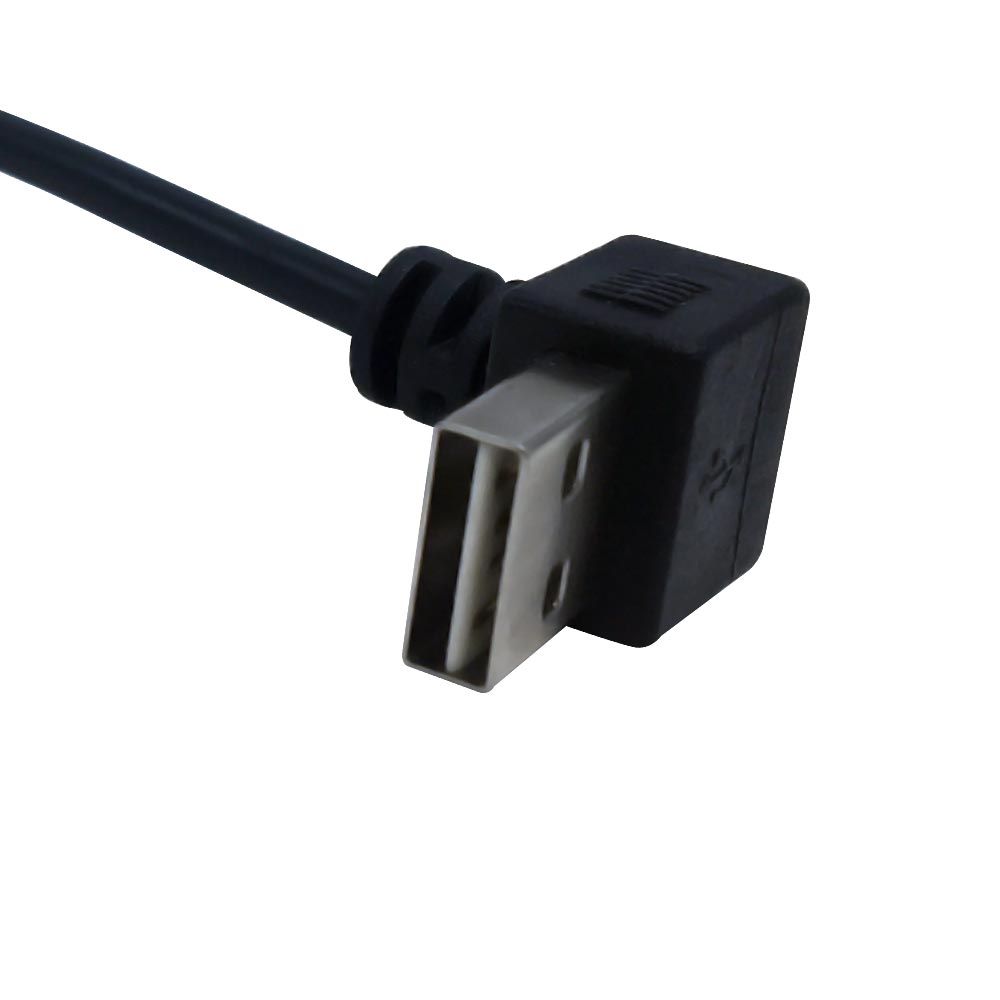

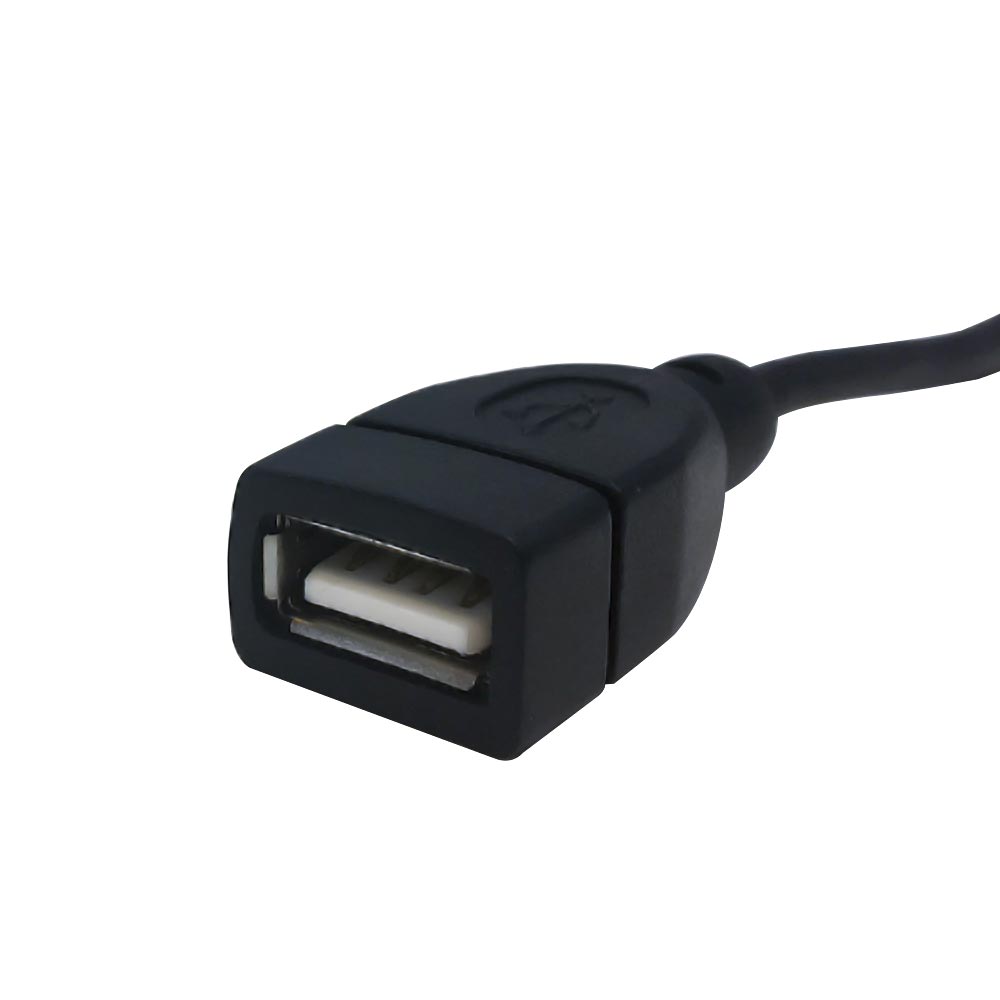

USB 2.0 A Up/Down Angle Male to A Straight Female Cable

USB CablesSKU: USB-232-01

Length: 1ft
Price:
Sale price$1.85 USD
Stock:
In stock

Description

This USB 2.0 cable consists of a USB A up angle or down angle male on one end and a USB A straight female on the other end. The angled end uses a reversible USB A male connector which allows it to be inserted in either a right angle or left angle exit. It is typically used to extend a USB A cable.

Physical Characteristics
Color Black
Connector Plating Nickel Plated
Contact Plating Gold Plated
Cable Diameter 3.5 mm
Jacket Material PVC - Polyvinyl Chloride
Cable Shielding 100% Foil
Strain Relief Molded PVC
Temperature Rating 80 deg C
Cable Voltage Rating 30V
Connector(s)
Connector A USB 2.0 Type A Up/Down Male
Connector B USB 2.0 Type A Straight Female
Performance
Rating USB 2.0 Hi-Speed Compliant Cable
Speed 480 Mbps
Compatibility Backwards Compatible with 1.0
Approvals
UL Yes - Cable
cUL Yes - Cable
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
1ft 3ft 6ft 10ft 15ft
0.05 lbs 0.15 lbs 0.30 lbs 0.50 lbs 0.75 lbs
