Overview

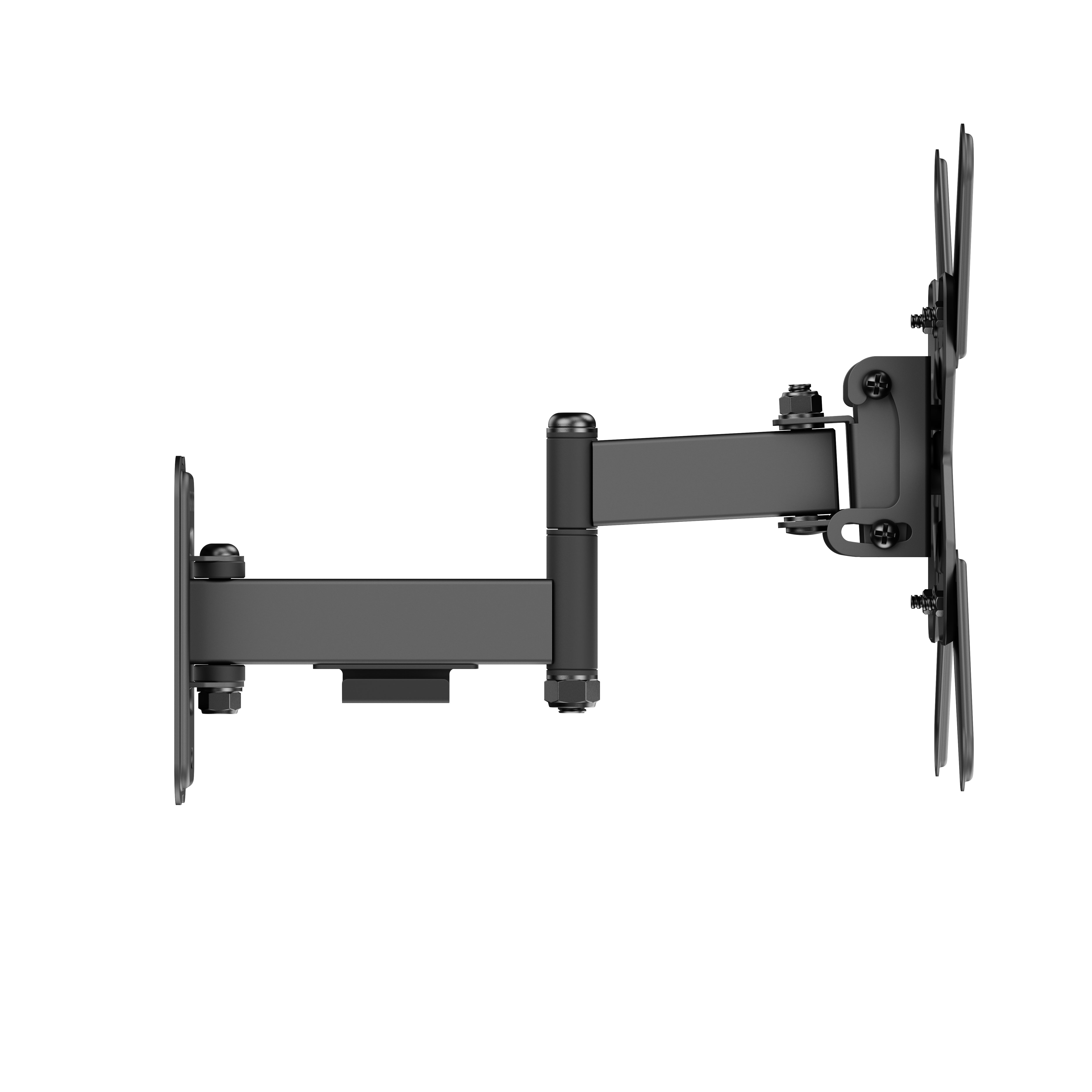

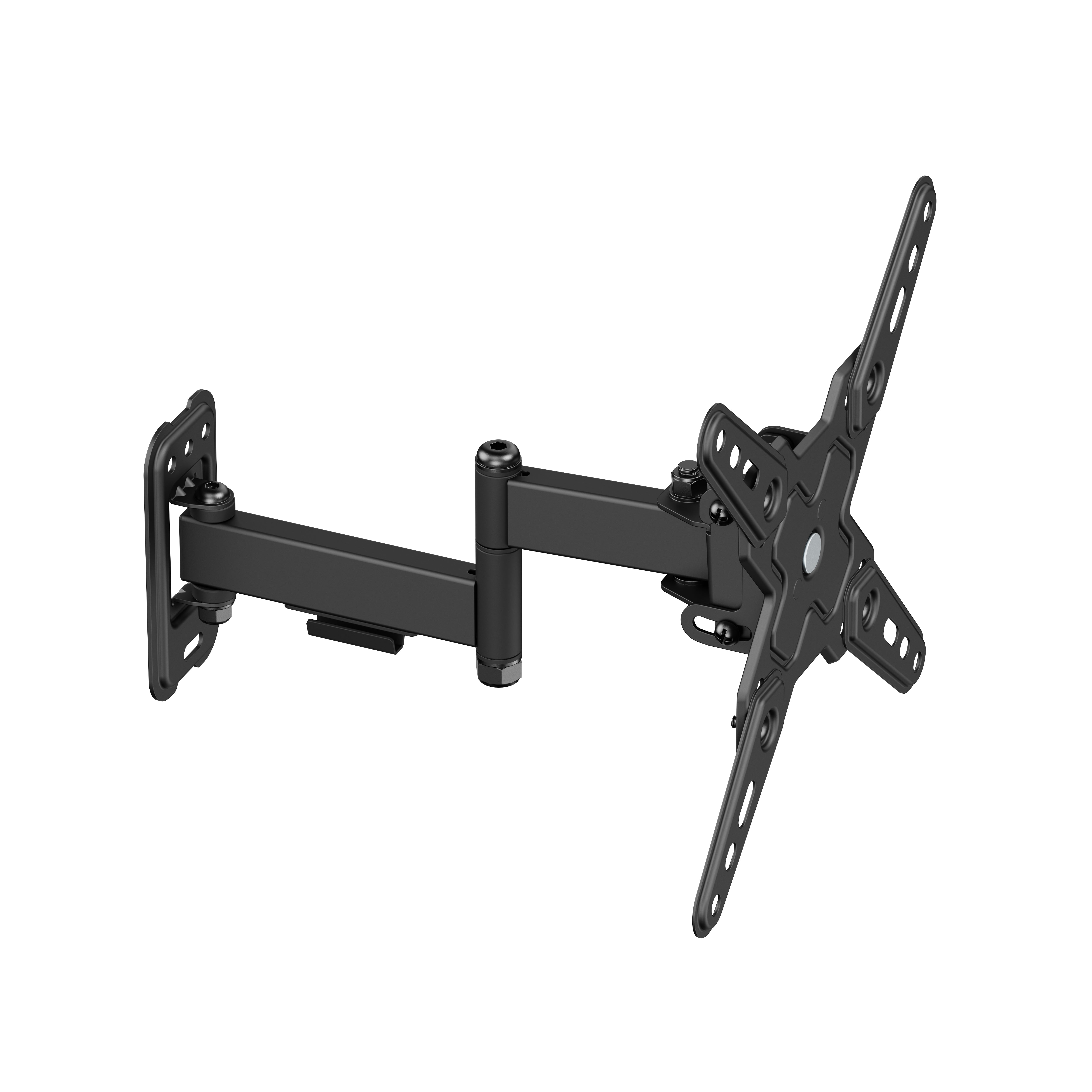

This swivel and tilting wall mount bracket is designed to hold most 13 inch to 43 inch flat screen displays with a maximum VESA hole pattern of 200x200. It offers a up to a -15° to +5° tilt, a -90° to +90° swivel and -90° to +5° rotation. It can be used in both residential and commercial environments.
Features:
- Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
-
Swiveling Arms: offers maximum viewing flexibility
- Detachable Extension Plate: lengthens the stand to fit larger sized TVs
- Portrait and Landscape Orientation: matches different viewing needs
- Detachable VESA Plate Design: enables easy installation
- Cable Management: keeps everything organized
 |
Full Motion Makes any Seat, the Best SeatThe tilt and swivel motion of the mount allows you to position your TV to the best viewing angle and maximize the viewing experience. This mount can swivel to the left or right direction at 90°, tilted at a range of -15° to +5° and rotated at a range of +5°to -90°. Designed for VersatilityWith portrait and landscape orientation options, this mount adapts to your unique viewing preferences. The detachable extension plate accommodates larger TVs, while the detachable VESA plate design makes installation a breeze. Neat and Organized SetupEnjoy a clutter-free entertainment space with the built-in cable management system, keeping wires tidy and organized. Elevate your TV setup effortlessly with this premium mounting solution!
|
Specifications
| Physical Characteristics | |
|---|---|
| Mounting Style | Full Motion Wall Mount |
| Color | Fine Texture Black |
| Material | Steel |
| Mounting Pattern | VESA 75x75,100x100,200x100,200x200 |
| Screen Size | 13 - 43 inches [33 - 109cm] |

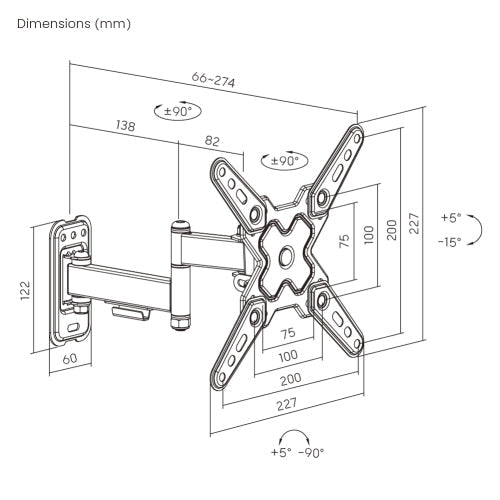

| Dimensions | 234mm (10.8"x8.9"x9.2") |
| Metal Sheet Thickness | VESA Panel THK=1.8mm cold-rolled sheet, Wall Plate THK=1.8mm cold-rolled sheet (VESA Panel THK=0.071" cold-rolled sheet, Wall Plate THK=0.071" cold-rolled sheet) |
| Pipe Size | 30x15x1.2mm Square Steel Tube (1.2"x0.59"x0.047" Square Steel Tube) |
| Surface Finish | Powder Coating |
| Weight Capacity | 20kg (44lbs) |
| Tilt | -15° ~ +5° |
| Swivel | -90° ~ +90° |
| Rotation | -90°~ +5° |
| Profile | 66~274mm (2.6"~10.8") |
| Screen Freely Tilting | No |
| Installation | Solid Wall, Single Stud |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| AV Component Shelf | No |
| Cable Management | Yes |
| Fit Curved TV | Yes |
| Anti-theft | No |
| Bubble Level | Hook-on Bubble Level (Included in Components Package) |
| Approvals | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware |
4 - M5x12 Screws |
| Product Weight | 5.1lbs [2.3kg] |
| Warranty Information | |
| Warranty |
Limited Lifetime |
5-YEAR LIMITED LIFETIME WARRANTY
Infinite Cables Inc. offers a 5-year warranty on all TV mounts to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| MT-543-BK | 5.86 lb |
