Description

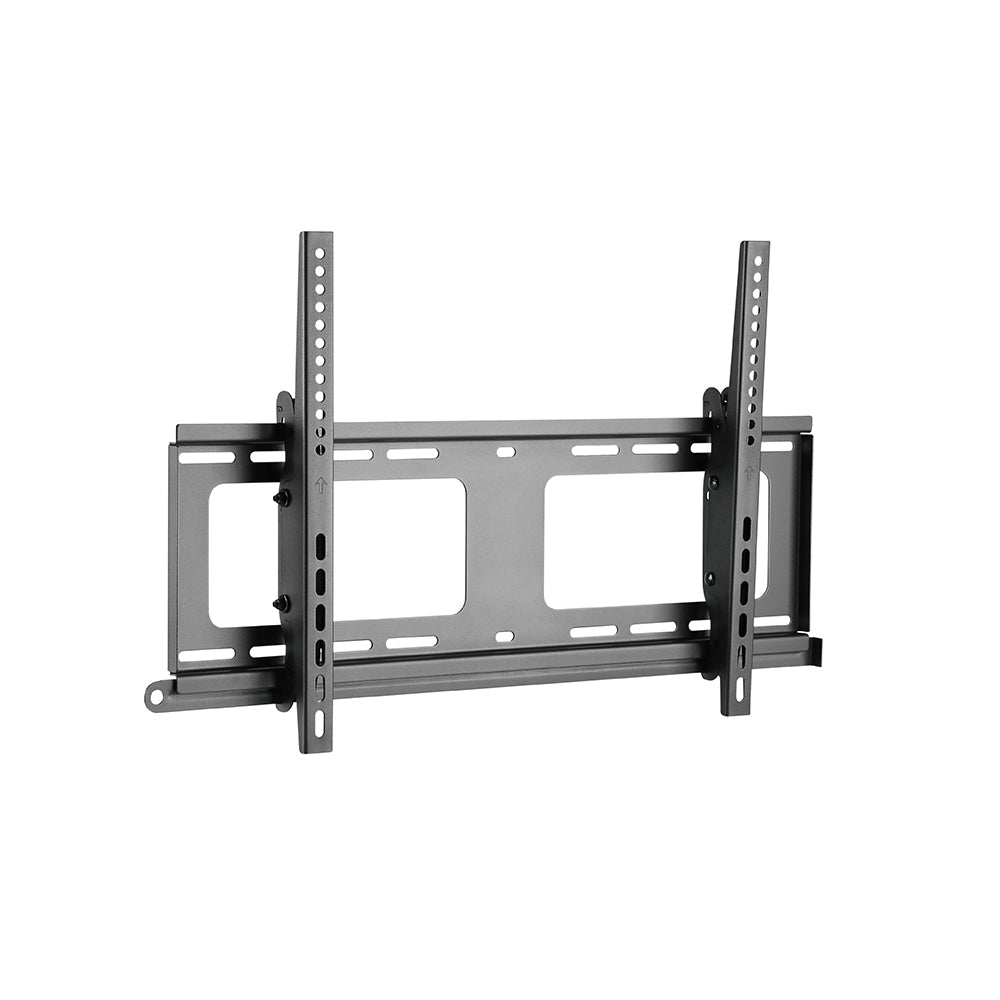

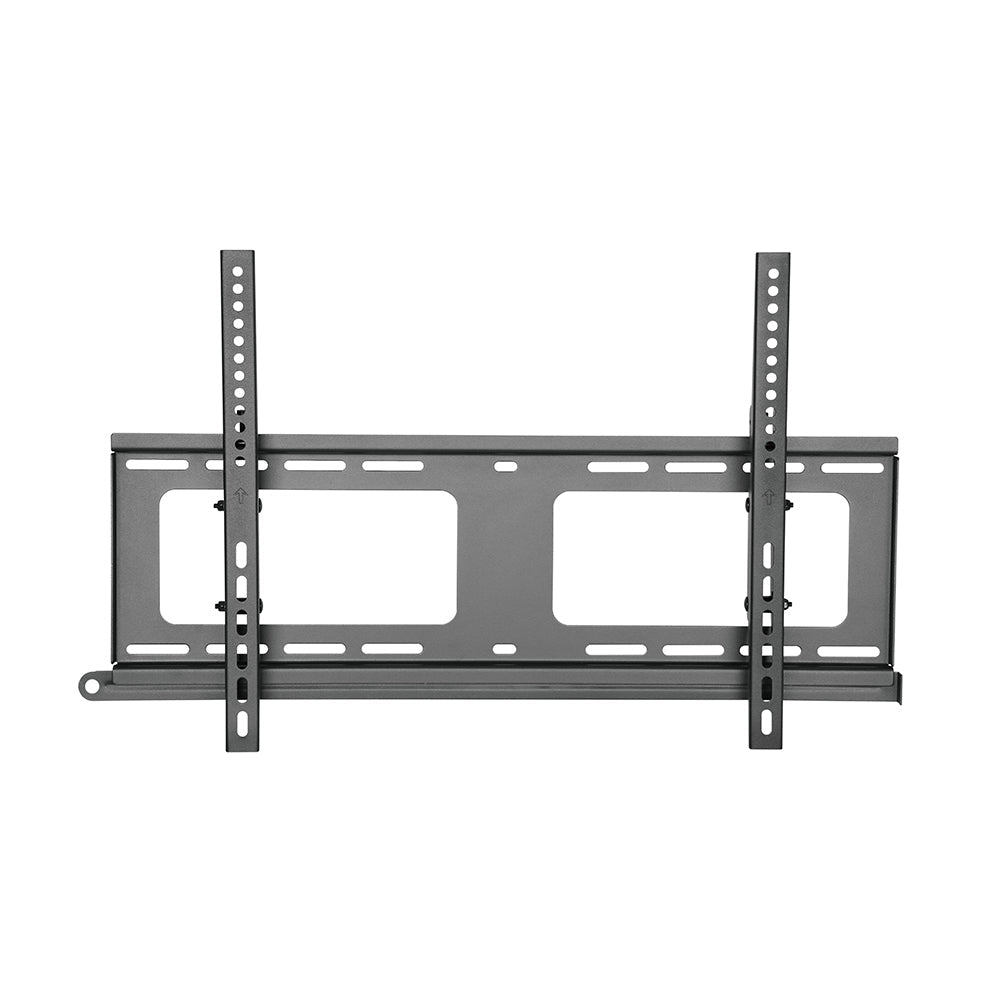

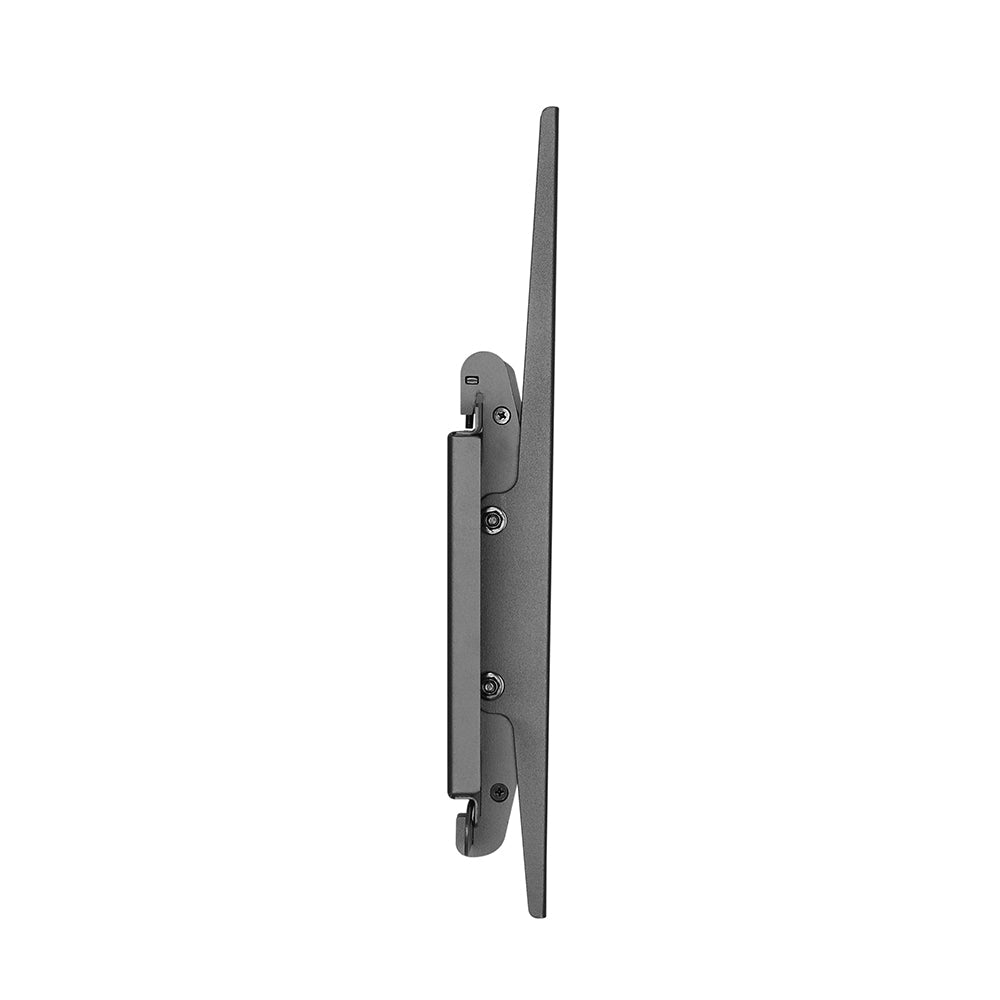

This LCD/LED tilting TV wall mount bracket is designed to hold most 37 inch to 80 inch LCD/LED displays with a maximum VESA hole pattern of 600x400. It offers up to a +5° to -10° tilt. It also has an anti-theft locking bar (padlock not included) and can be used in both residential and commercial environments.
| Physical Characteristics | |
|---|---|
| Mounting Style | Tilting Wall Mount |
| Color | Black |
| Material | Steel, Plastic |

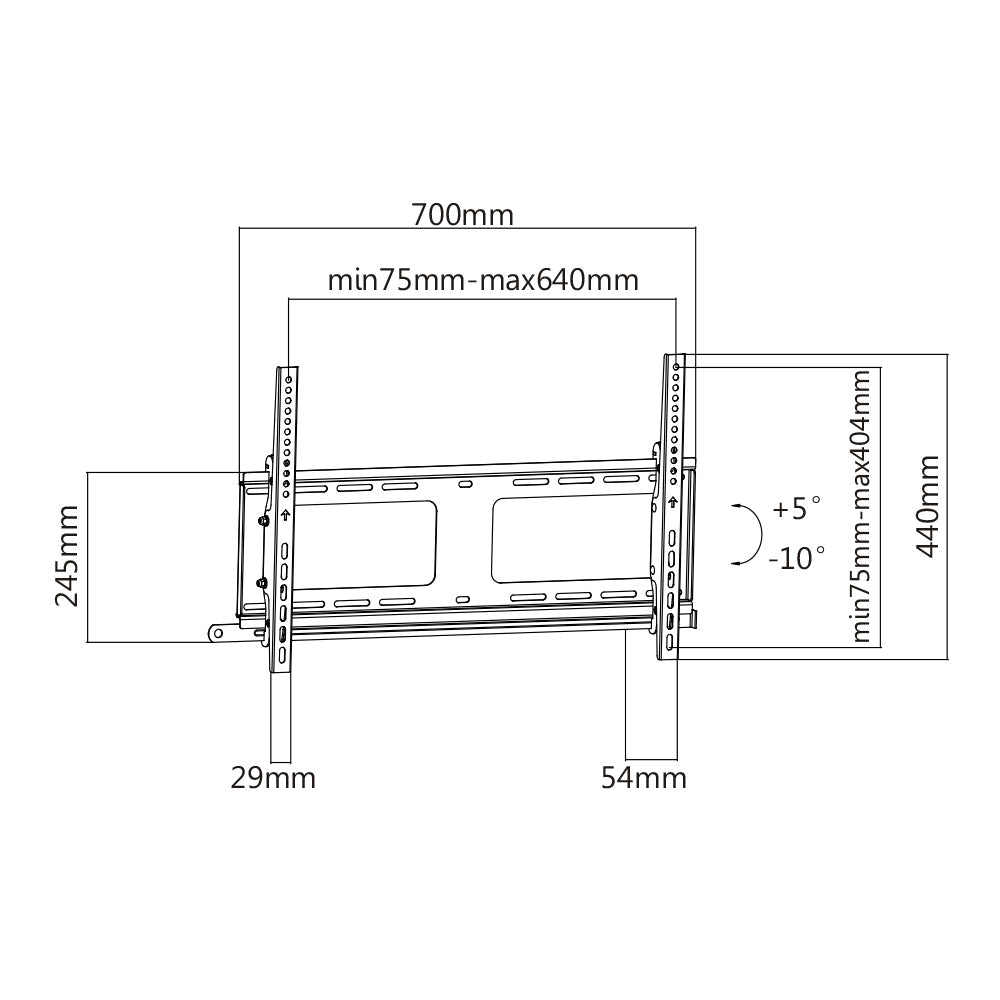

| Mounting Pattern | VESA 200x200, 300x300, 400x200, 400x400, 600x400 |
| Screen Size | 37 - 80 inches [93.9 - 203.2cm] |
| Weight Capacity | 176lbs [80kg] |

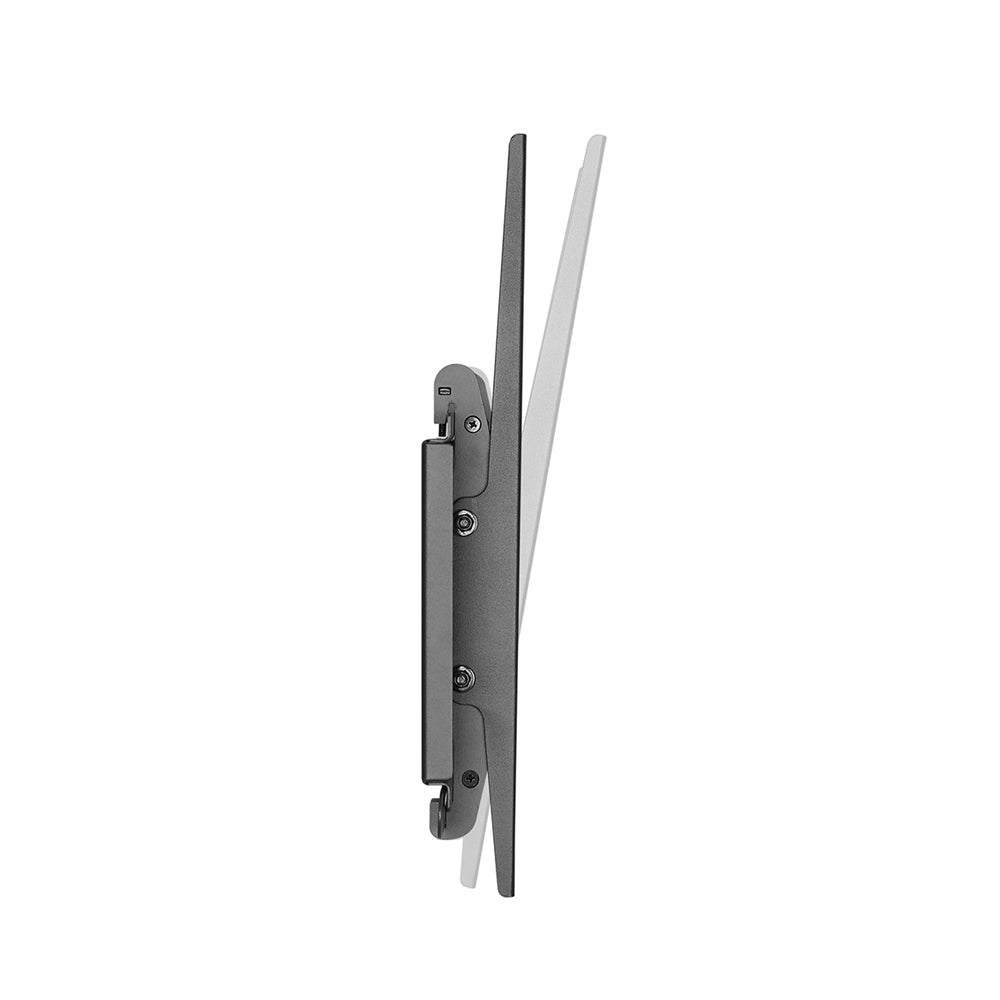

| Tilt | +5° to -10° |
| Profile | 54 mm |
| Theft Resistant | Yes (requires small padlock) |
| Installation | Solid Wall or Double Stud |
| Approvals | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 4 - M5x14 Screws 4 - M6x14 Screws 4 - M6x30 Screws 4 - M8x30 Screws 4 - M8x50 Screws 4 - Rectangular Washers 8 - Small Spacers 8 - Big Spacers 6 - ST6.3x55 Screws 6 - Concrete Anchors 6 - D6 Washers |
| Package Weight | 29.3 lbs [13.3kg] |
