Overview

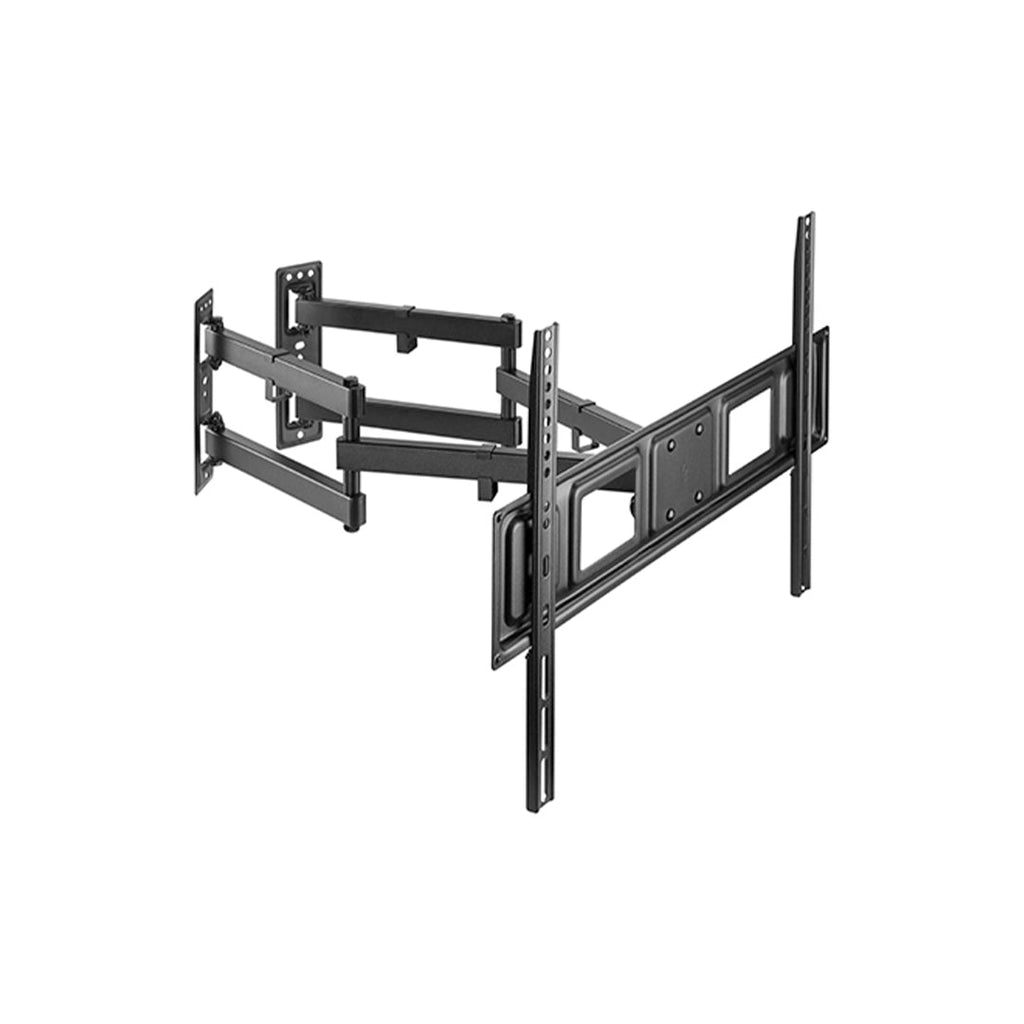

This swivel tilting pan and extend corner wall mount bracket is designed to hold most 37 inch to 70 inch flat and curved screen displays with a maximum VESA hole pattern of 600 x 400. It offers a up to a -15° to +5° tilt and a -45° to +45° swivel. It can be used in both residential and commercial environments.
 |

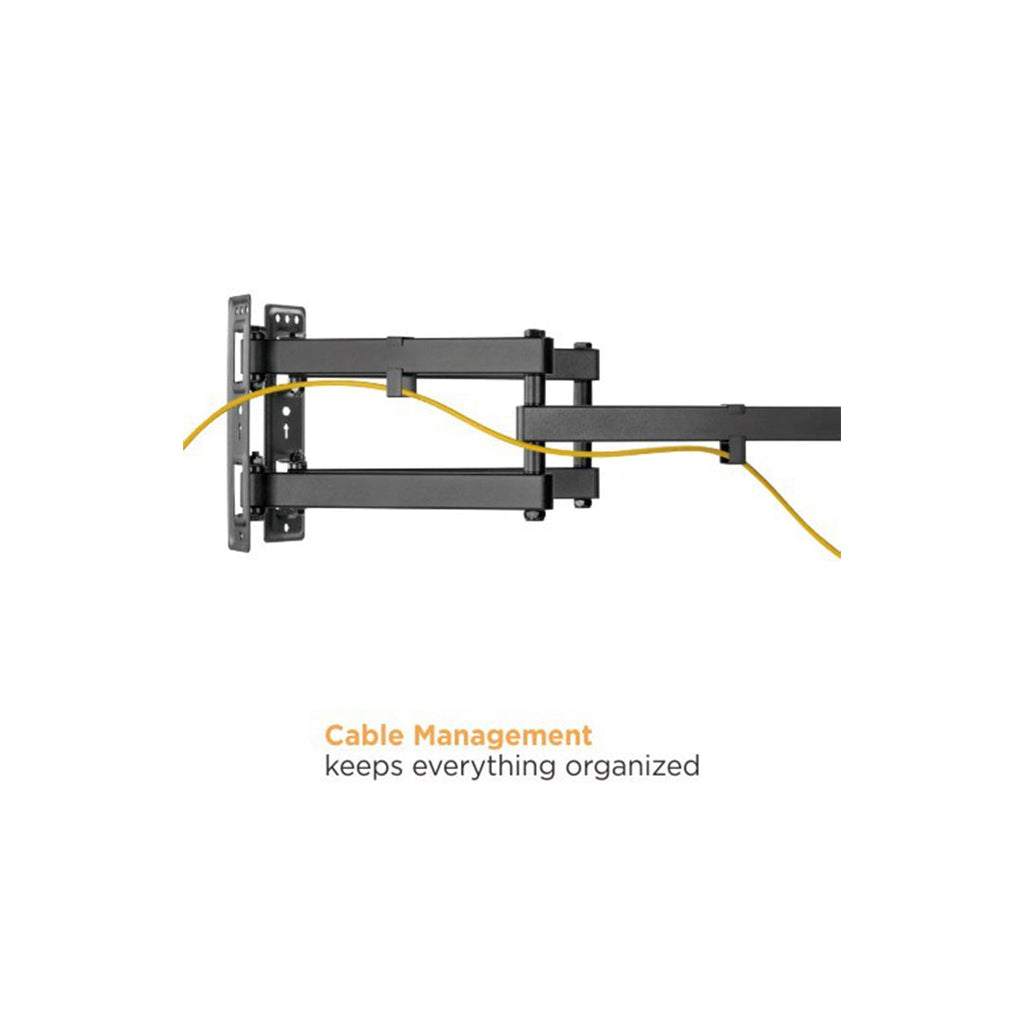

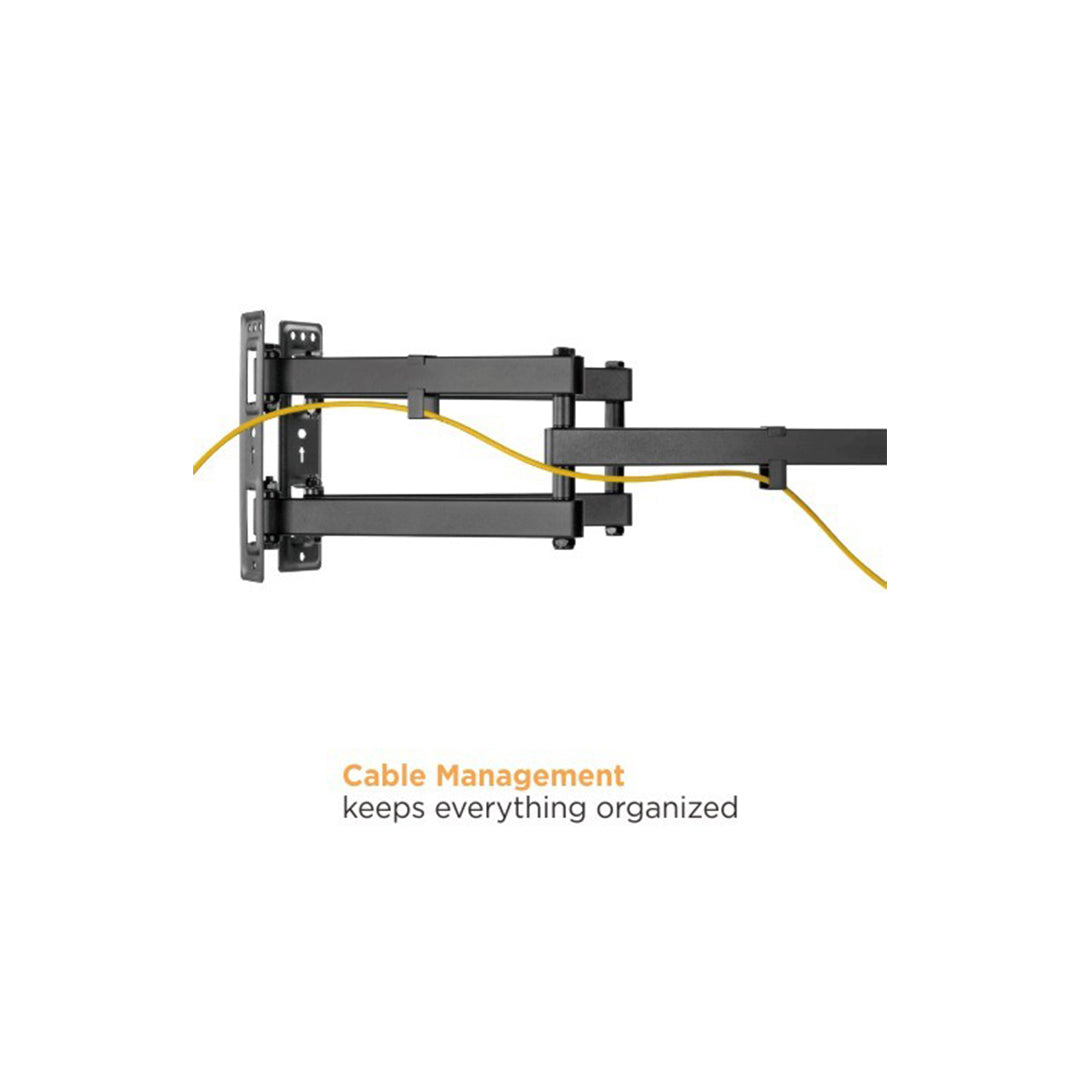

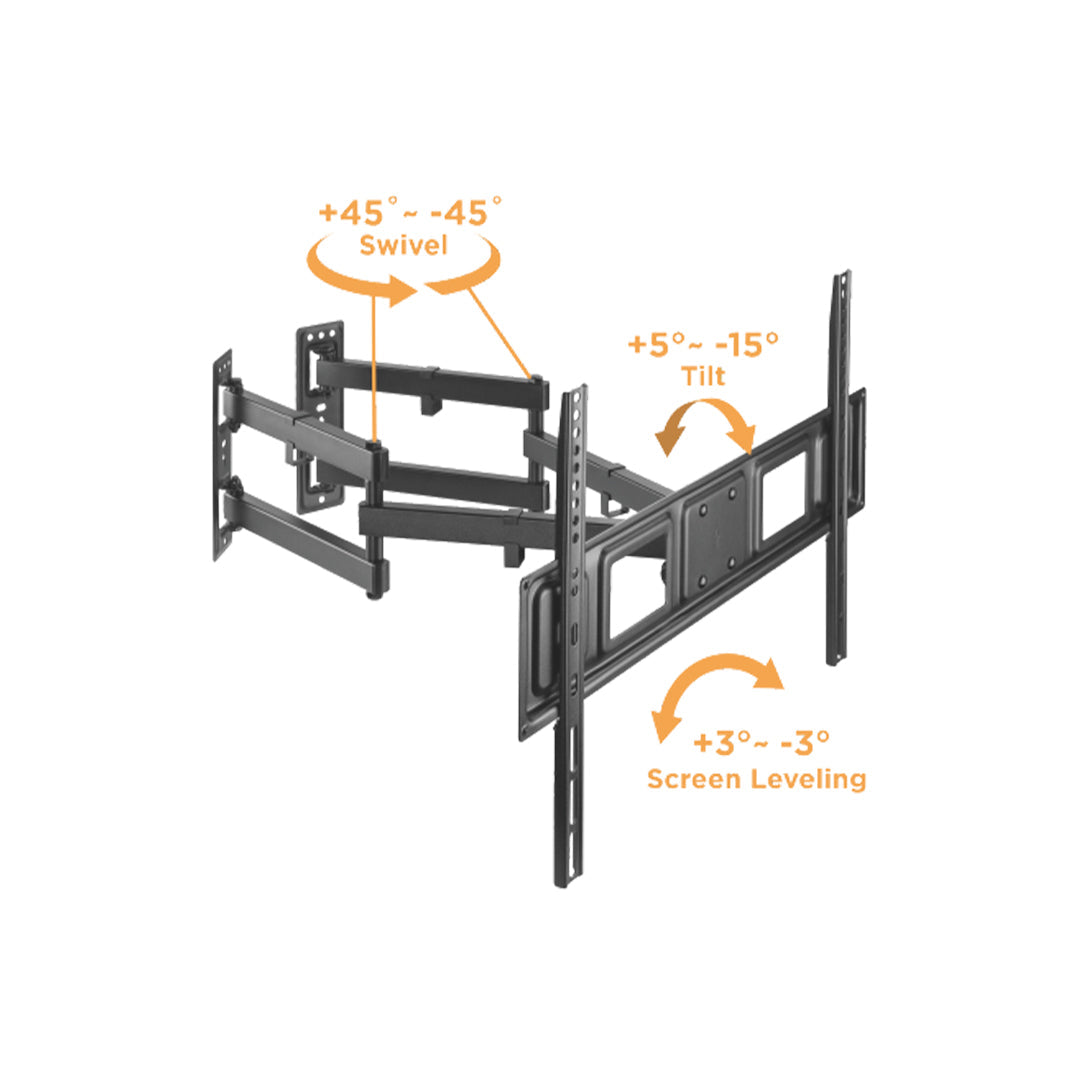

Full Motion Makes any Seat, the Best SeatThe tilt and swivel motion of the mount allows you to position your TV to the best viewing angle, and provide the maximum viewing experience. This mount can be swivel to the left or right direction at -45° to +45° and tilted at a range of -15° to +5°. Level Adjustment is Easy on the EyesThe built-in level adjustment ensures perfect positioning for a pleasurable viewing experience. It offers 5° clockwise and counter-clockwise turning to ensure a perfect level. Built-in Cable ManagementThe pre-assembled arm comes with integrated cable management and decorative covers to provide an elegant and tidy look. This allows easy maintenance of cables and accessories.
|
Specifications
| Physical Characteristics | |
|---|---|
| Mounting Style | Full-Motion TV Wall Mount |
| Color | Fine Texture Black |
| Material | Steel, Plastic |
| Pipe Size | 30 x 20 x 1.5mm [1.2" x 0.79" x 0.059"] |

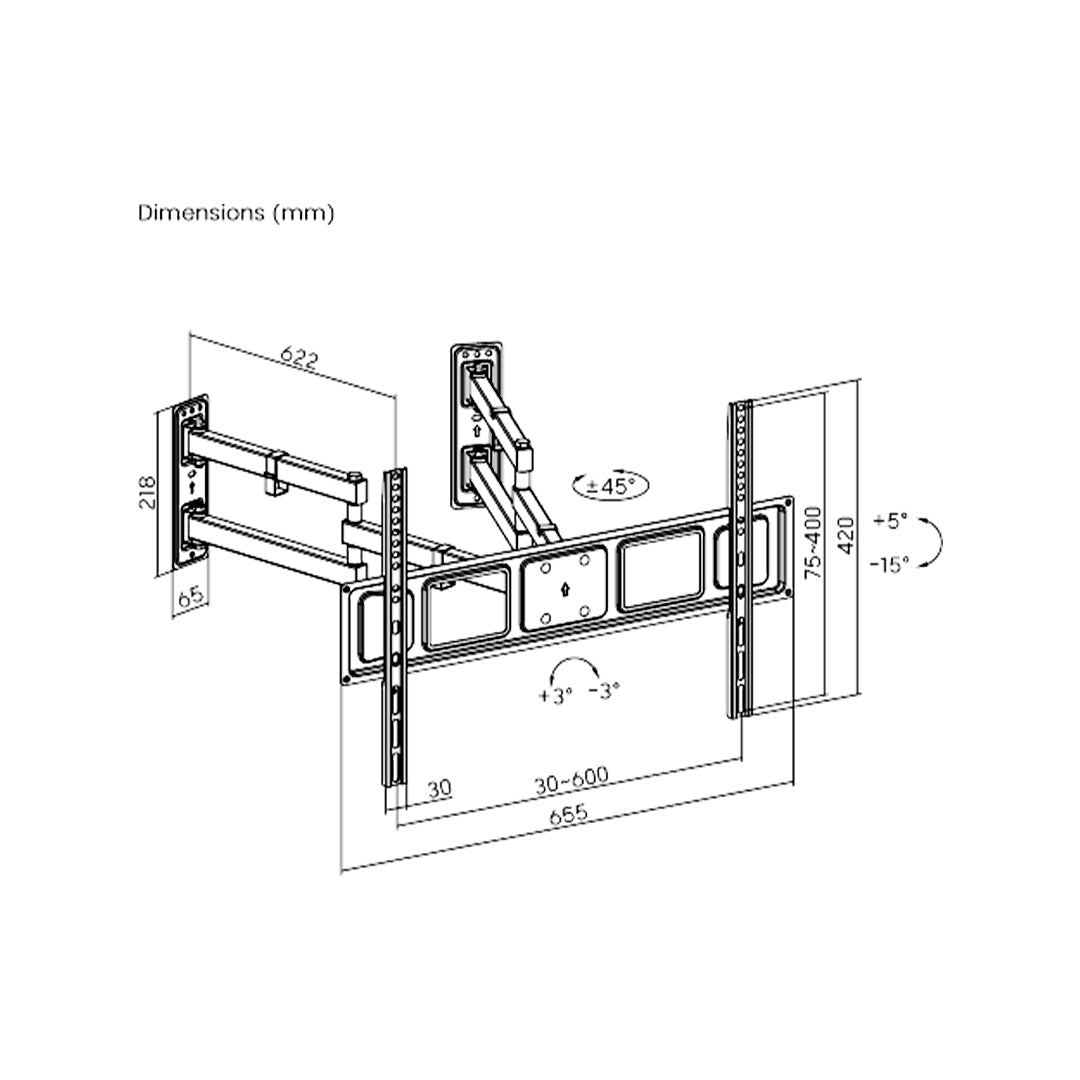

| Dimensions |
655 x 420 x 622mm [25.8" x 16.5" x 24.5"] |
| Mounting Pattern | 75x75,100x100,100x150,150x100,100x200,200x100, 150x150,200x200,300x200,400x200,300x300,400x300, 400x400,600x400 |
| Screen Size | 37 - 70 inches [94 - 177.8 cm] |
| Weight Capacity | 99 lbs [45kg] |
| Tilt | -15° ~ +5° |
| Swivel | -45° ~ +45° |
| Screen Level | -3° ~ +3° |
| Cable Management | Compliant |
| Wall Plate Type | Fixed Wall Plate |
| Installation | Solid Wall or Double Stud [406mm / 450mm] |
| Panel Type | Detachable Panel |
| Approvals | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
