Description

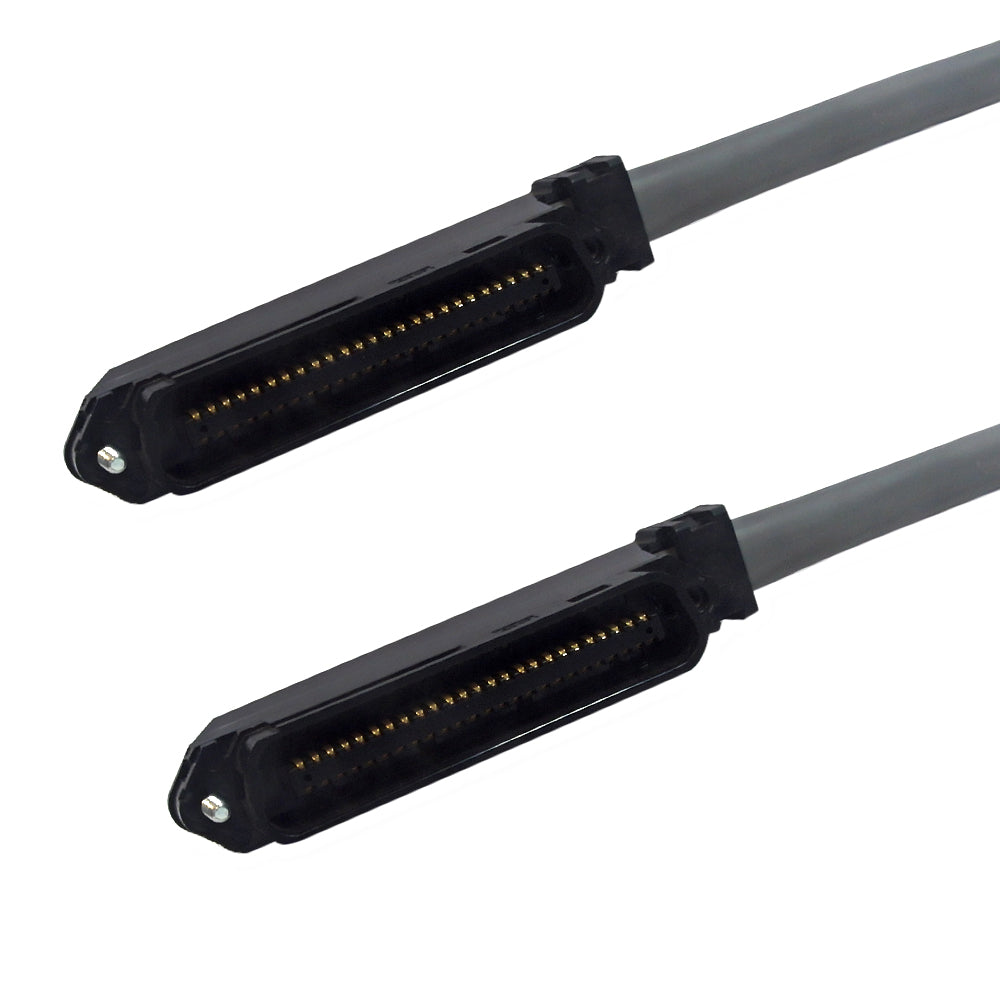

This Telco (Amphenol 21) cable is constructed using 25 pair Cat3 rated cable and consists of a IDC Telco 50 90-degree male connector on one end and a IDC Telco 50 90-degree male on the other. It is designed to be used in telecommunication applications.
- Usually ships in 1-2 business days, call for rush orders.
- Please Contact Us or place a note in the shopping cart section if you need to change the cable exit side.
| Physical Characteristics | |
|---|---|
| Cable Length | 3 foot [0.9m] |
| Color | Grey |
| Shielded | No |
| Cable Rating | Cat3 |
| Fire Rating | FT4 |
| Wire Gauge | 24 AWG Solid |
| Connectors | |
| Connector A | IDC Telco 50 90-Degree Male |
| Connector A - Cable Exit | Exit on Pin 1 Side |
| Connector B | IDC Telco 50 90-Degree Male |
| Connector B - Cable Exit | Exit on Pin 1 Side |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.35 lbs [0.15kg] |
| Warranty Information | |
| Warranty | Limited Lifetime |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| TELCO-102-03 | 3ft | 2.19 lb |
| TELCO-102-06 | 6ft | 2.34 lb |
| TELCO-102-10 | 10ft | 2.53 lb |
| TELCO-102-15 | 15ft | 2.77 lb |
| TELCO-102-25 | 25ft | 3.25 lb |
| TELCO-102-50 | 50ft | 4.45 lb |
| TELCO-102-75 | 75ft | 5.65 lb |
| TELCO-102-100 | 100ft | 6.85 lb |
