- Spec Sheets

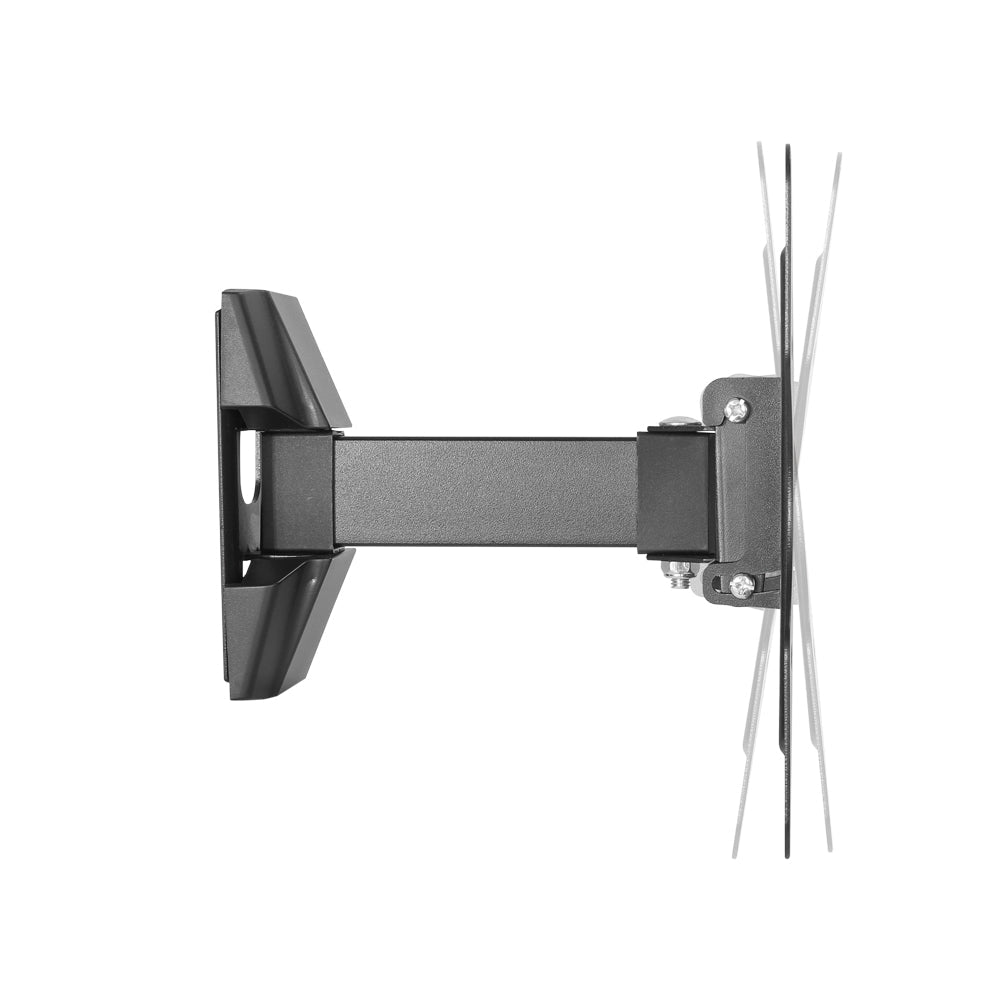

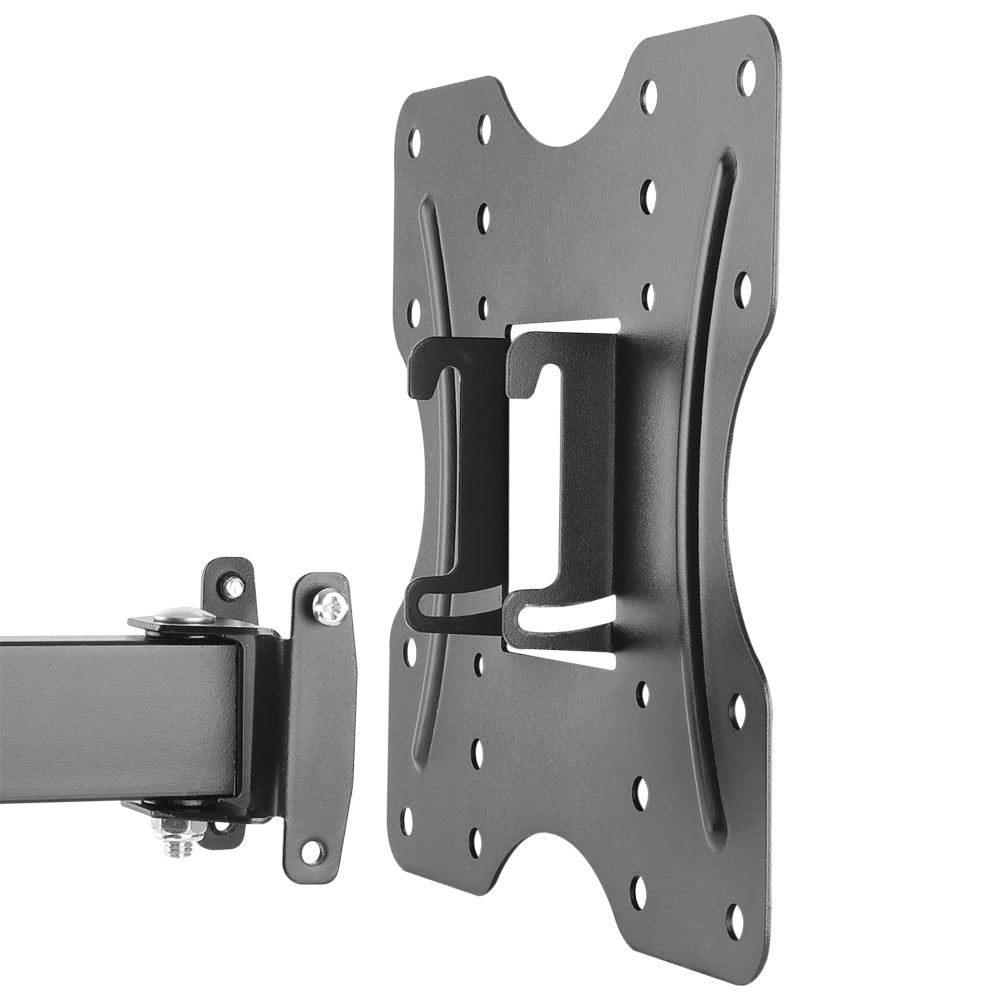

The tilt and swivel motion of the mount allows you to position your TV to the best viewing angle, and provide the maximum viewing experience. This mount can be swiveled to the left or right direction at 90° and tilted at a range of -10° to +3°.
Full Motion Makes any Seat, the Best Seat
The tilt and swivel motion of the mount allows you to position your TV to the best viewing angle, and provide the maximum viewing experience. This mount can be swivel to the left or right direction at 90° and tilted at a range of -10° to +3°.
The open architecture of this mount provides increased ventilation and easier access to wires.
|Mounting Style||Tilting & Swivel Wall Mount|
|Mounting Pattern||VESA 100x100, 200x100, 200x200|
|Metal Sheet Thickness||VESA Panel Thickness =1.8mm [0.071"] cold-rolled sheet
Wall Plate Thickness =2.3mm [0.091"] pickling sheet
|Dimensions||205 x 230 x 255mm [8.1" x 9.1" x 10"]|
|Screen Size||23 - 42 inches [58 - 107cm]|
|Weight Capacity||66lbs [30kg]|
|Tilt||-10° ~ +3°|
|Swivel||-90° ~ +90°
|Profile||56 ~ 205mm [2.2" ~ 8.1"]|
|Panel Type||Detachable Panel|
|Wall Plate Type||Fixed Wall Plate|
|Product Weight||4.9lbs [2.2kg]|
5-YEAR LIMITED LIFETIME WARRANTY
Infinite Cables Inc. offers a 5-year warranty on all TV mounts to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
