Description

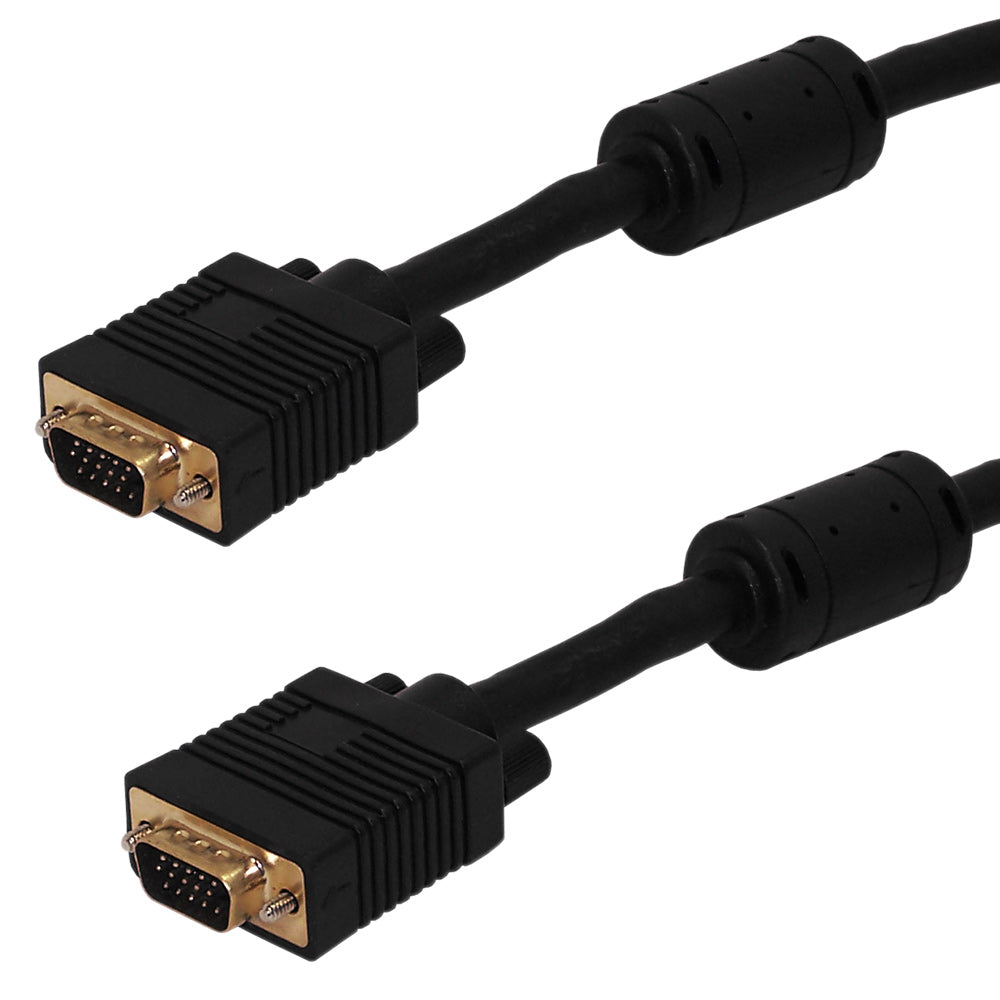

This SVGA/UXGA cable consists of a HD15 VGA male on one end and a HD15 VGA male on the other end. It is typically used to connect VGA outputs such as computers/laptops to VGA inputs such as monitors/projectors.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Wire Gauge - Coax | 3 - 28AWG Mini-Coax |
| Wire Gauge - Conductors | 5 - 24AWG Pairs, 2 - 24AWG Conductors |
| Cable Diameter | 9.0 mm |
| Shielding | 85% Copper Braid, 100% Mylar Foil, Ferrite Cores |
| Jacket Fire Rating | CL2/FT4 |
| Jacket Material | PVC |
| Strain Relief | Molded PVC |
| Connector(s) | |
| Connector A | SVGA HD15 Male |
| Connector B | SVGA HD15 Male |
| Performance | |
| Resolution | 1600 x 1200px |
| Impedance | 75 ohm |
| Approvals | |
| c(UL)us | Approved Cable |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Contents | |
| Included in Package | 1 - Cable |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft | 150ft |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.37 lbs | 0.53 lbs | 0.77 lbs | 1.19 lbs | 1.63 lbs | 2.04 lbs | 3.37 lbs | 4.65 lbs | 5.46 lbs | 8.25 lbs | 12.87 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| SVGA1-01 | 1ft | 0.07 lb |
| SVGA1-03 | 3ft | 0.15 lb |
| SVGA1-06 | 6ft | 0.21 lb |
| SVGA1-10 | 10ft | 0.33 lb |
| SVGA1-15 | 15ft | 0.5 lb |
| SVGA1-25 | 25ft | 0.77 lb |
| SVGA1-35 | 35ft | 1.1 lb |
| SVGA1-50 | 50ft | 1.55 lb |
| SVGA1-75 | 75ft | 2.26 lb |
| SVGA1-100 | 100ft | 3.0 lb |
| SVGA1-150 | 150ft | 6.2 lb |
