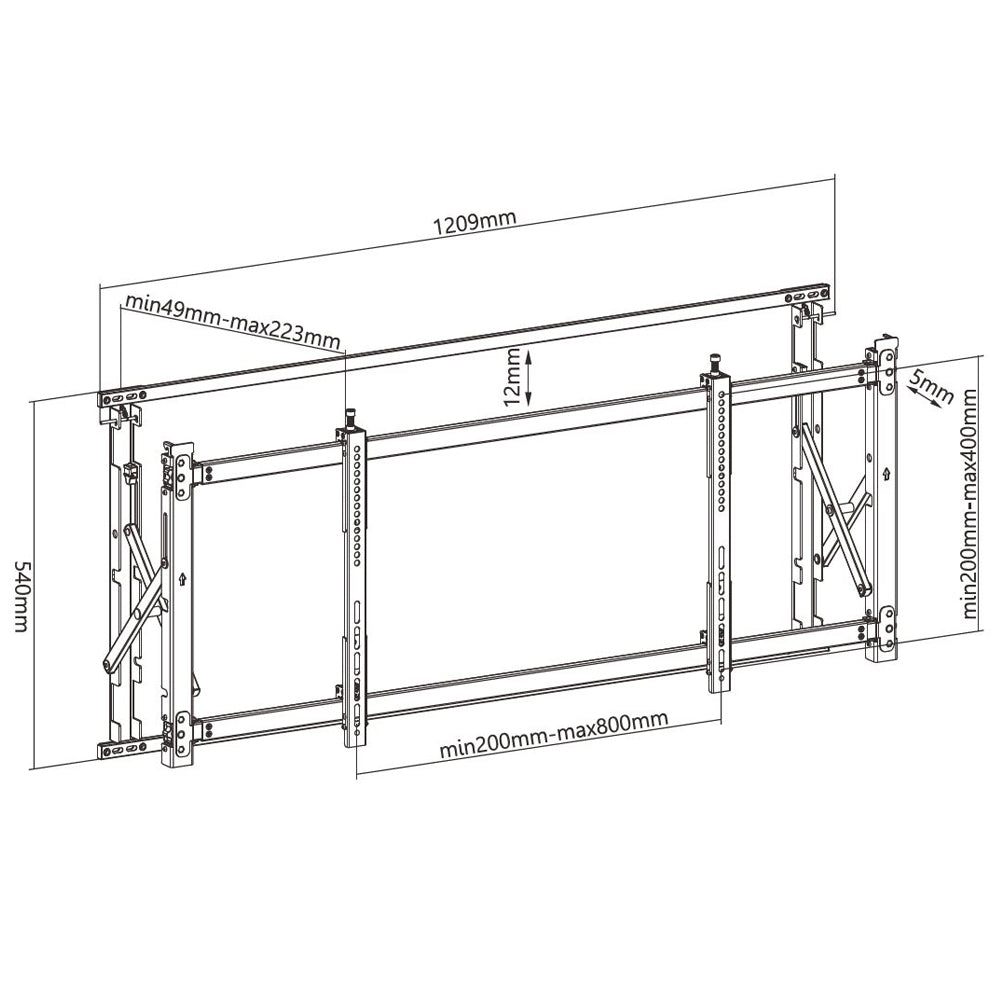

This super slim video wall mount bracket is designed to hold most 55 inch to 60 inch flat screen displays with a maximum VESA hole pattern of 800x600. It allows portrait or landscape screen orientation and can be used on a single TV or in conjunction with additional mounts to create a video wall.
Mountable in any Orientation
This video wall TV mount bracket can be used in either portrait or landscape orientation.
This portrait TV mount bracket provides a low profile and is very slim in design in comparison to other brackets.
Due to the multi-dimensional micro adjustments that can be made to the bracket, it allows for an ideal display alignment for a pleasurable viewing experience.
|Durable Powder-coated Black Finish
|VESA 200x200, 300X200, 300X300, 400x200, 400X300, 400x400, 600x400, 600x600, 800x400, 800x600
|55 - 60 inches [140 - 152cm]
|49 - 223mm
|Depth 5mm / Height 12mm
|4 - M5x14 Screws
4 - M6x14 Screws
4 - M6x30 Screws
4 - M8x30 Screws
4 - M8x50 Screws
4 - Rectangular Washers
8 - Small Spacers
8 - Big Spacers
4 - ST6.3x55 Screws
4 - Concrete Anchors
4 - D6 Washers
|28.1 lbs [12.75 kg]
|22.4 lbs [10.15 kg]
5-YEAR LIMITED LIFETIME WARRANTY
Infinite Cables Inc. offers a 5-year warranty on all TV mounts to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
