Description

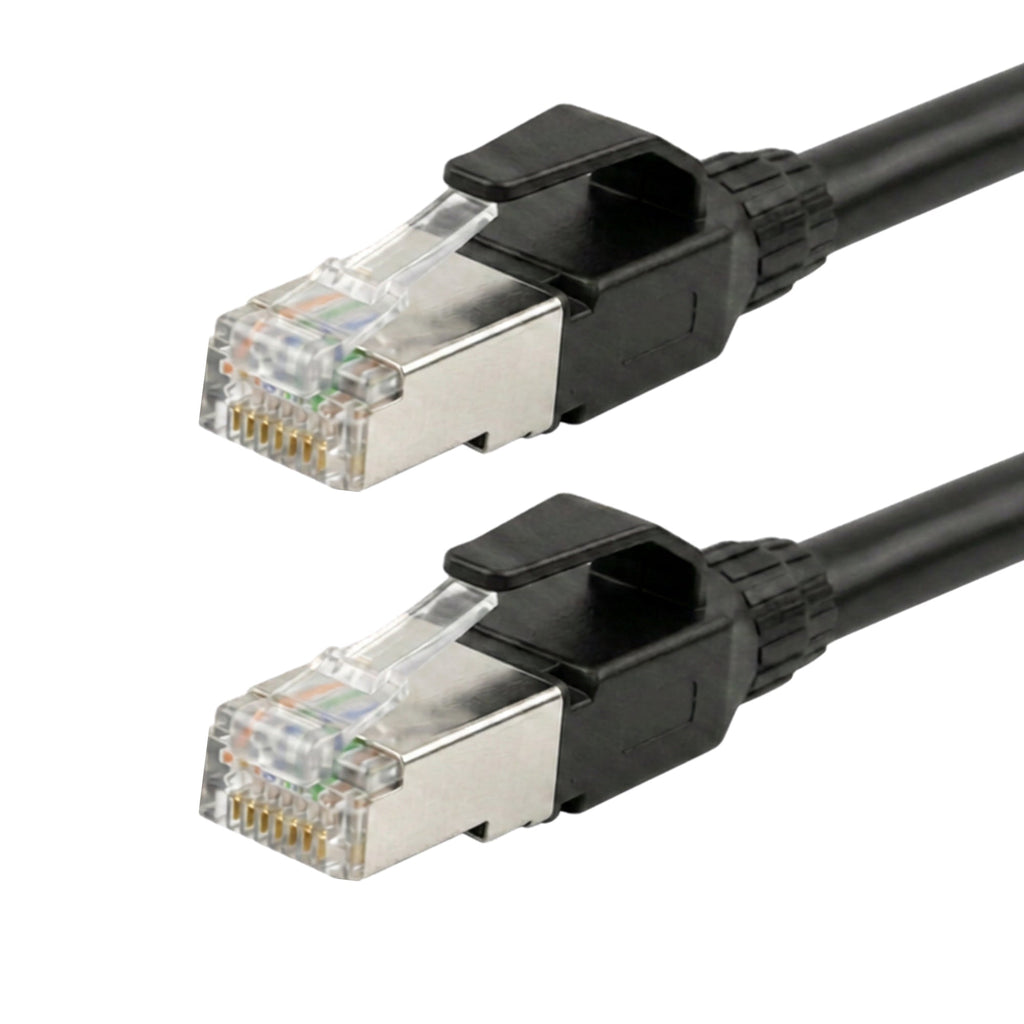

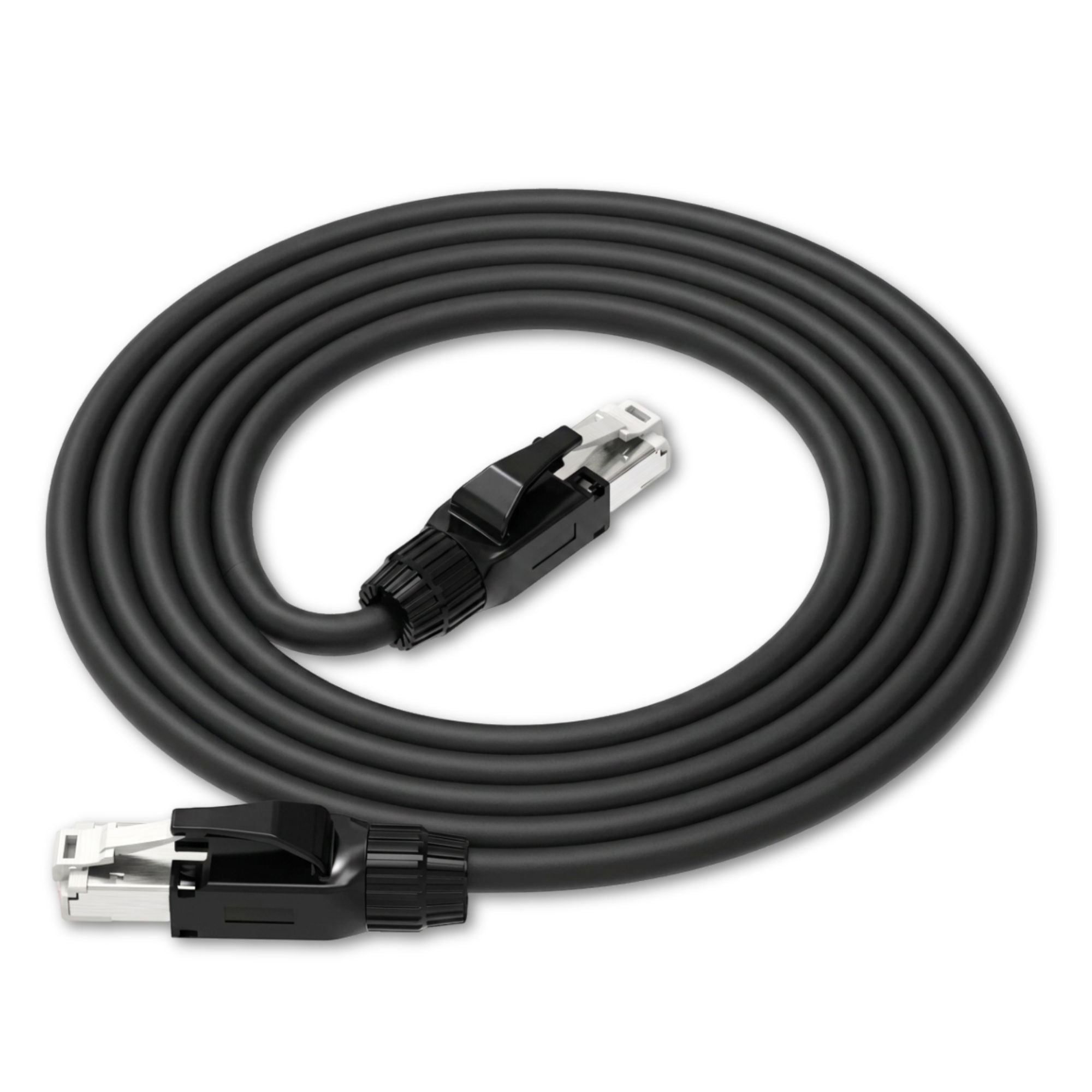

This steel armored outdoor heavy duty high flex RJ45 CAT6A shielded ethernet cable is designed to withstand outdoor, harsh, and industrial environments. The halogen-free PUR outer jacket and SUS 204 stainless steel inner jacket provide crush, abrasion, and rodent resistance while maintaining high elasticity and flexibility.
| Connector Details | ||
|---|---|---|

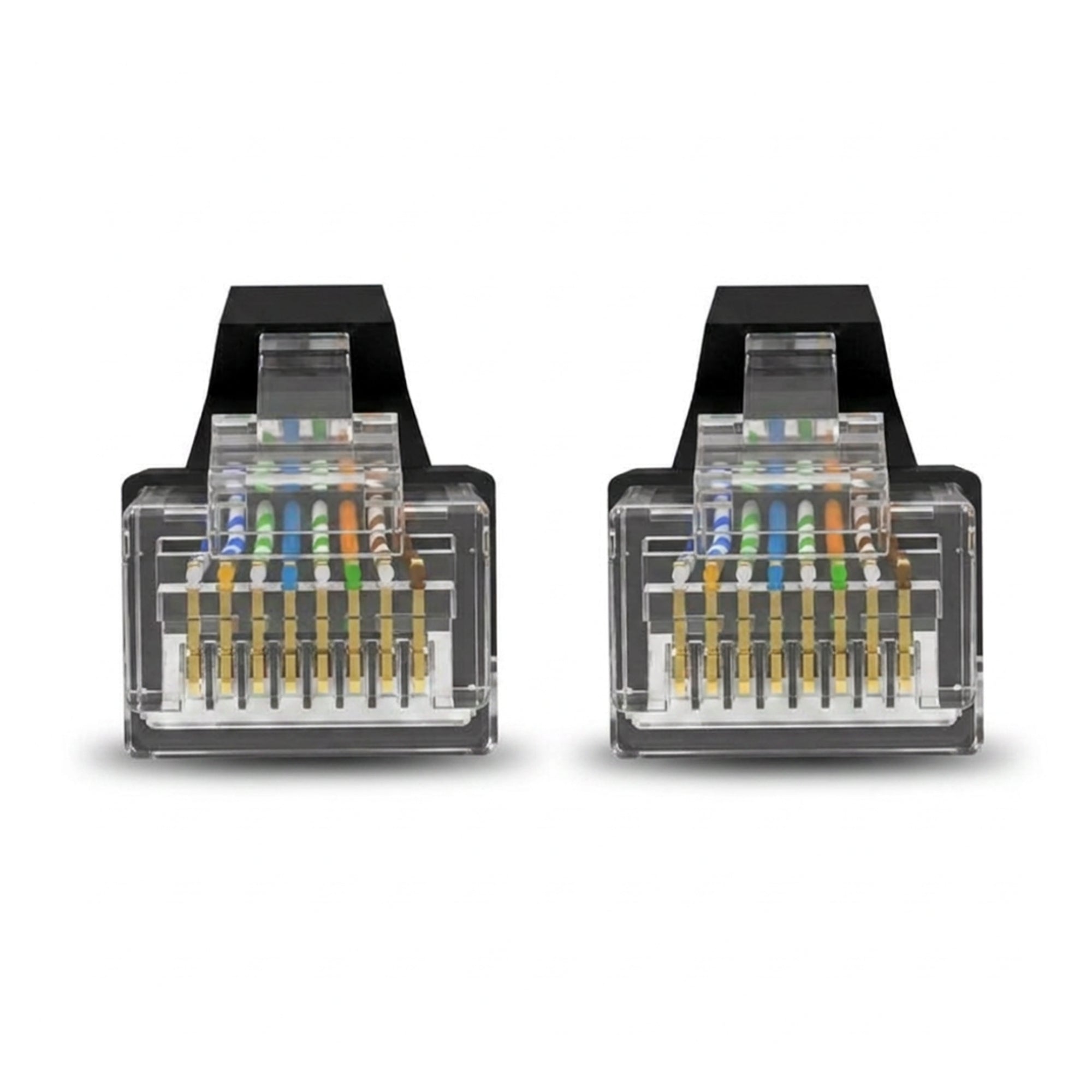

| Connector Type A | Shielded 8P8C RJ45 | |
| Connector Type B | Shielded 8P8C RJ45 | |
| Contact Material | Copper Alloy, Gold Plating 50U" | |
| Hood | 2 Piece Screw Type | |
| Gender | Male | |
| Connector Colour | Black | |

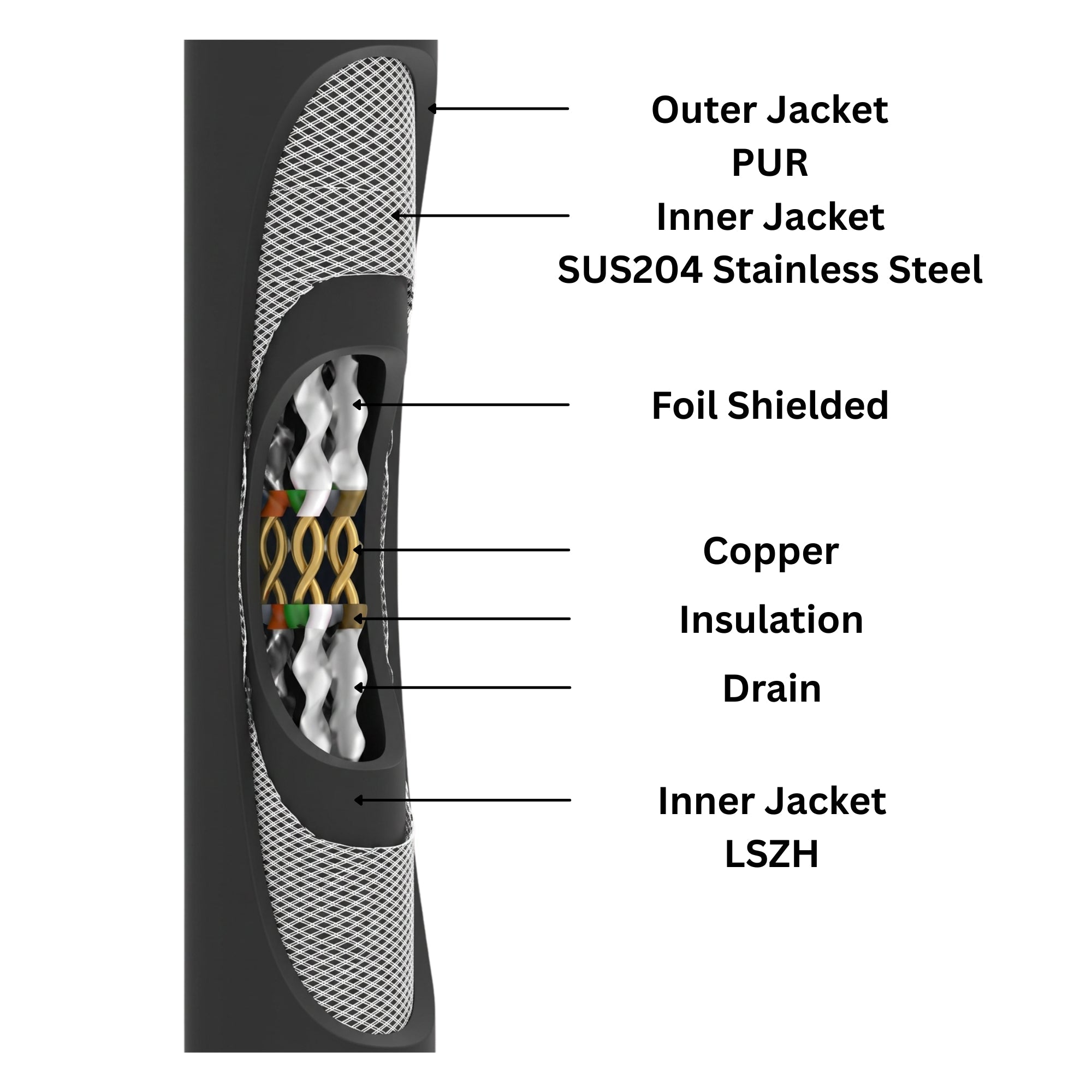

| Cable Details | ||
| Outer Jacket | Halogen Free PUR | |
| Inner Jacket | LSZH | |
| Armor | SUS204 Stainless Steel | |
| Cable Diameter | 7.3 ± 0.20mm | |
| Minimum Average Thickness | 0.70mm | |
| External Sheath Colour | Black | |
| Cable Marking | PHANTOM CABLES - ARMORED HARSH ENVIRONMENT - CAT6A 28AWG STRANDED 4P U/FTP PUR (-40°C to +50°C) ANSI/TIA-568.2-D RoHS | |
| Conductor Details | ||
| Quantity | 4 Twisted Pair | |
| Conductor Type | 28 AWG (7/0.12 ± 0.008mm) Stranded BC | |
| Insulation | FMPE | |
| Diameter | 0.80 ± 0.05mm | |
| Electrical & Mechanical Data | ||
| Cable Type | Cat6A U/FTP | |
| Wiring Scheme | T568B | |
| Temperature Rating - Installation | 0°C to 50°C | |
| Temperature Rating - Operation | -40°C to 80°C | |
| Voltage Rating | 30V | |
| Conductor DC Resistance | 28.40/100m (maximum) | |
| Impedance | 100 Ohm | |
| Bandwidth | 500 MHz | |
| Approvals | ||
| RoHS | Yes | |
| Warranty | ||
| Warranty Type | Limited Lifetime | |
