Description

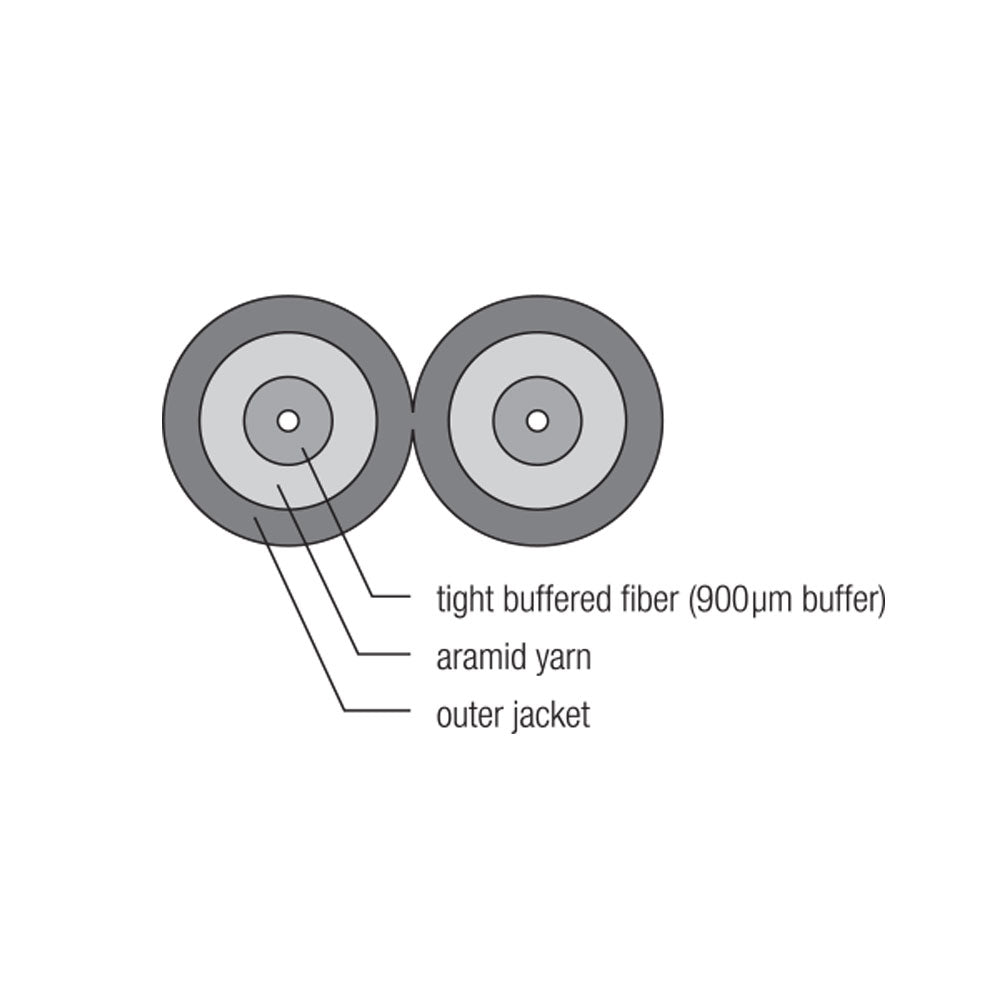

This bulk fiber optic cable is a singlemode duplex 9 micron zip cord 3mm jacket LSZH/OFNR. This cable is primarily used in the assembly of duplex fiber patch cords to provide links for such protocols as FDDI, 10 Gigabit Ethernet, ATM, and Fiber Channel. It is sold in bulk (per meter).
This cable is primarily used in the assembly of duplex fiber patch cords. It is sold in bulk (per meter).
| Physical Characteristics | |
|---|---|
| Color | Yellow |
| Fiber Optic Type | Zipcord Singlemode 9/125um |
| Fiber Core Diameter | 8.2 micron |
| Attenuation Range | @1310nm 0.4dB/km @1550nm 0.2dB/km |
| Maximum Tensile Load | Short Term, N 500 Long Term, N 300 |
| Minimum Bending Radius | Load 45mm Unload 30mm |
| Fiber Count | 2C |
| Tight Buffer Diameter | 0.9 micron ±0.05 |
| Cable Diameter | 3mm |
| Fire Rating | LSZH / OFNR |
| Uniformly Distributed | Kevlar |
| Operating Temperature | -40~+75 |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.03 lbs [0.01 kg] |
