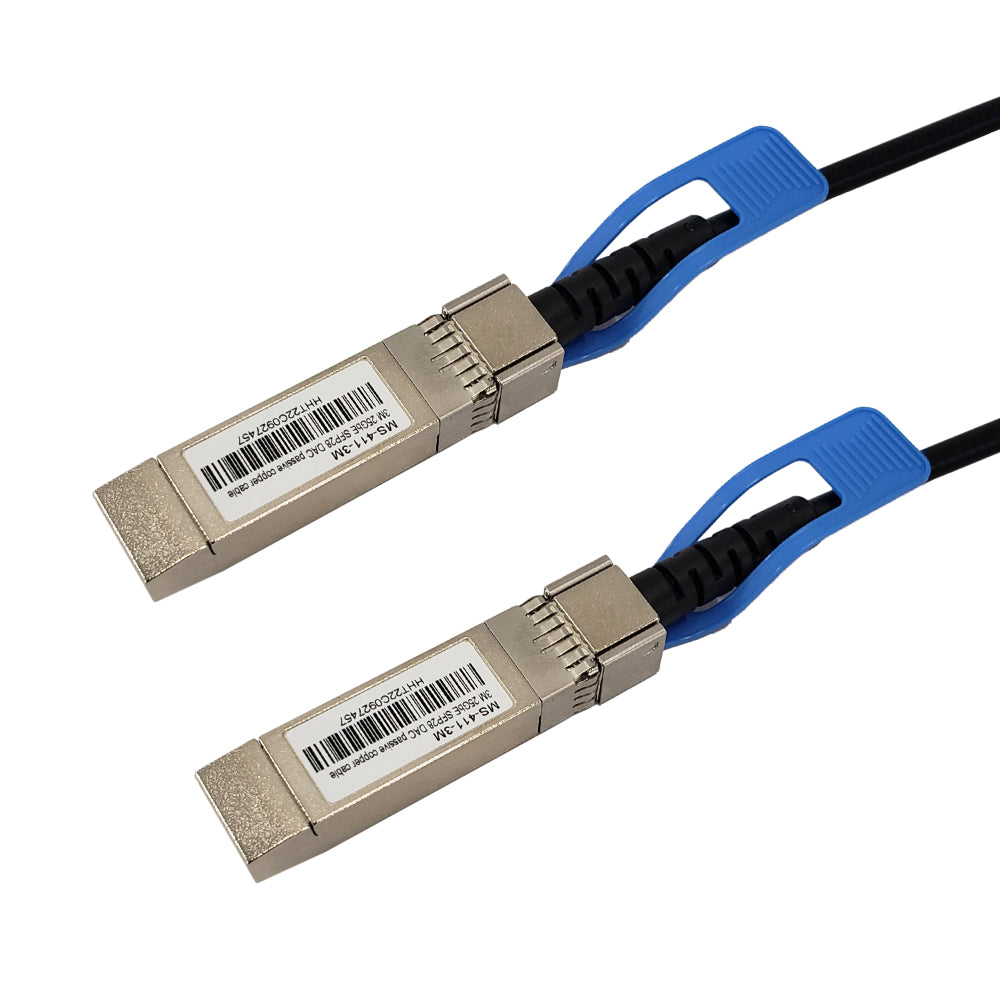

SFP28 to SFP28 (25GbE) DAC Passive Copper Cable - Cisco Compatible

SFP+ CablesSKU: MS-411-0.5M

Length: 0.5m
Price:
Sale price$16.69 USD
Stock:
In stock

Description

This passive SFP28 direct attach data storage cable has a SFP28 (25GbE) connector on both ends. They are constructed using 30 to 26AWG shielded twin-axial copper cable. It is typically used to directly attach switches/servers in short distance point to point applications and provide 25 Gigabit Ethernet connectivity between devices with SFP+/SFP28 interfaces. The cable is also hot-swappable which minimizes network downtimes, making upgrades quick and easy.

Physical Characteristics
Application 25Gb Ethernet and Fiber Channel Applications
Wire Gauge 30AWG (1m and 2m)
30AWG/26AWG (3m)
26AWG (4m and 5m)
Cable Jacket Material PVC
Contact Plating Gold Plated
Connector Material Zinc Die Cast, Nickel Plated Back Shells
Temperature Rang 0 ~ 70‚ĄÉ
Performance
Data Rate 25.88243 Gbps
Transmission Distance Up to 5 meters
Supports Hot-Pluggable SFP 20PIN footprint
Improved Pluggable Form Factor (IPF)
Enhanced EMI/EMC performance
Connectors
Connector A SFP28 (SFF-8402 and SFF-8432) - (Small Form Factor Pluggable)
Connector B SFP28 (SFF-8402 and SFF-8432) - (Small Form Factor Pluggable)
Approvals
UL Yes
Environmental
RoHS Yes
Packaging Information
Packaging Quantity 1 Cable
Cable Weights
0.5m 1m 2m 3m 5m
0.15 lb 0.35 lbs 0.50 lbs 0.65 lbs 1.20 lbs
