Description

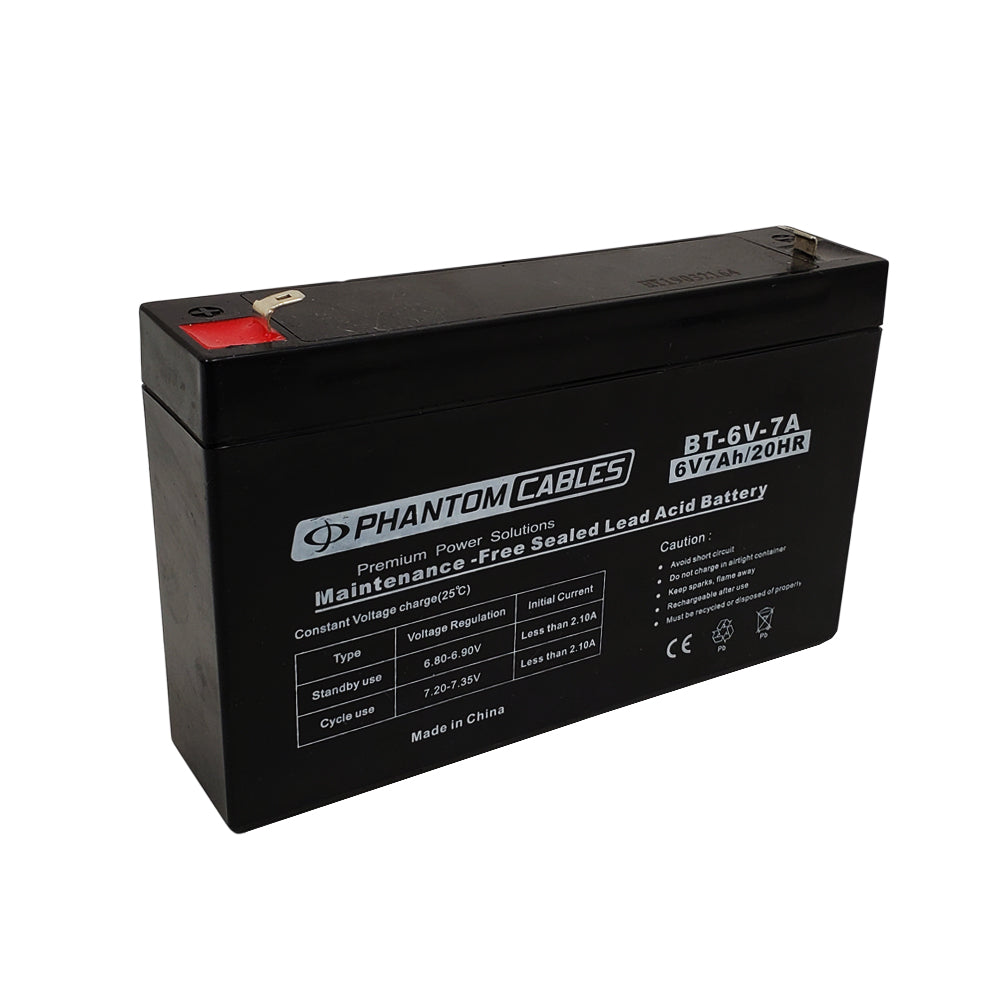

This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.
Application
Specifications
| Physical Characteristics | |
|---|---|
| Type | UPS Replacement |
| Absorbed Glass Mat (AGM) | Yes |
| Voltage | 6V |
| Amps | 7A |

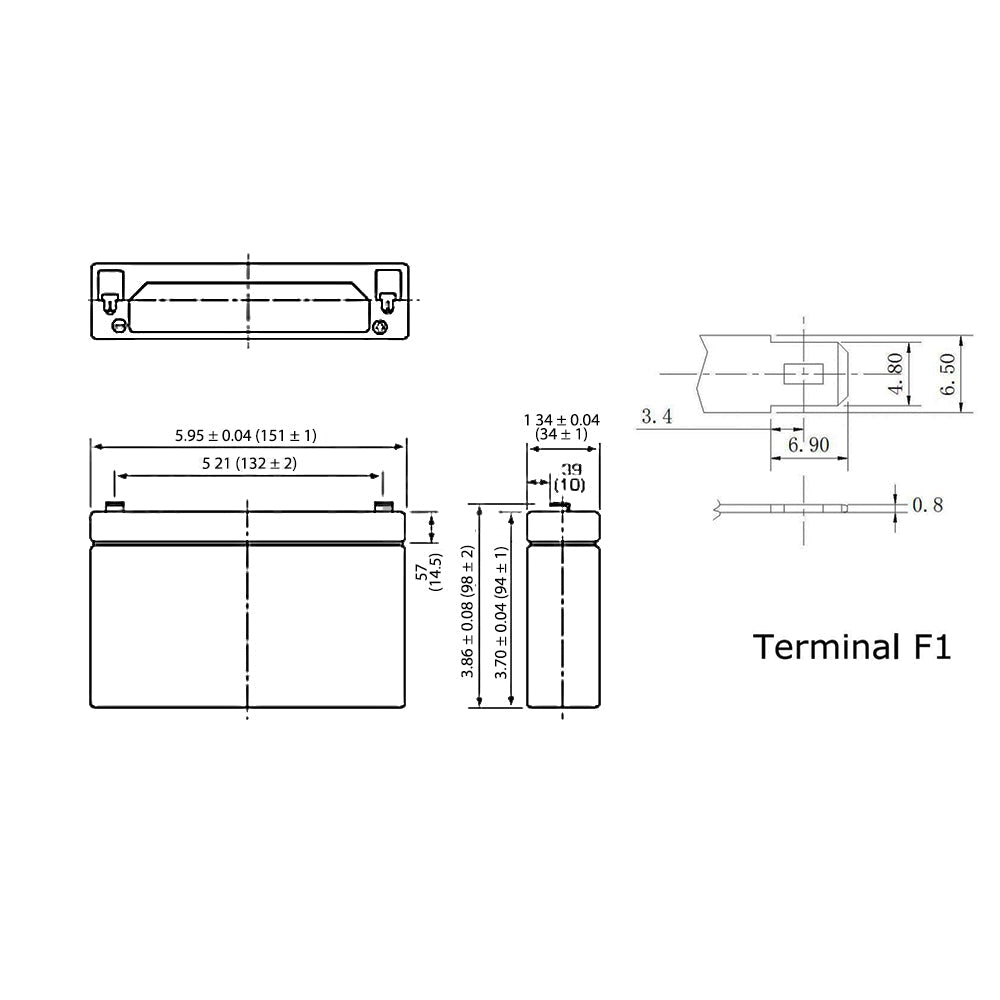

| Terminal Type | F1 |
| Tab Size | 0.1875 inch |
| Container Material | ABS(UL-94HB) |
| Length | 6 inches [151mm] |
| Width | 1.3 inches [34mm] |
| Height | 3.7 inches [94mm] |
| Operating Temperature | 25±3°C (77±5°F ) |
| Performance | |
| Internal Resistance | Approx.15m„¦ |
| Max. Discharge Current | 105A(5S) |
| Rated Capacity | 7.00AH (20hr, 1.75V/cell,25°C/77°F) 6.63AH (10hr, 1.75V/cell,25°C/77°F) 5.95AH (5hr, 1.75V/cell,25°C/77°F) 5.4AH (3hr, 1.75V/cell,25°C/77°F) 4.06AH (1hr, 1.75V/cell,25°C/77°F) |
| Cycle Use | Charge Current Less Than 0.25CA 7.05V~7.35V@25°C(77°F)Temp. Coefficient -30mV/°C |
| Floating Use | No limit on Initial Charging Current Voltage 6.75V~6.9V@25°C(77°F)Temp. Coefficient -20mV/°C |
| Capacity affected by Temperature |
40°C 103% 25°C 100% 0°C 86% -15°C 65% |
| Self-discharge | 3 month Remaining capacity: 91% 6 month Remaining capacity:82% 12 month Remaining capacity:65% |
| Packaging Information | |
| Product Weight | 2.65 lbs [1.2kg] |
| Warranty Information | |
| Warranty | 6 Months |
Spec Sheets
Product Weights
| SKU | Weight | |
| BT-6V-7A | 2.65 lb |
