Sealed Lead Acid Battery 6V 12amp x 3

Sealed Lead Acid BatteriesSKU: BT-6V-12A-3PCS

Price:
Sale price$48.35 USD
Stock:
In stock

Description

This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.

Application

Specifications

Physical Characteristics
Type 3x UPS Replacement
Voltage 6V
Amps 12A

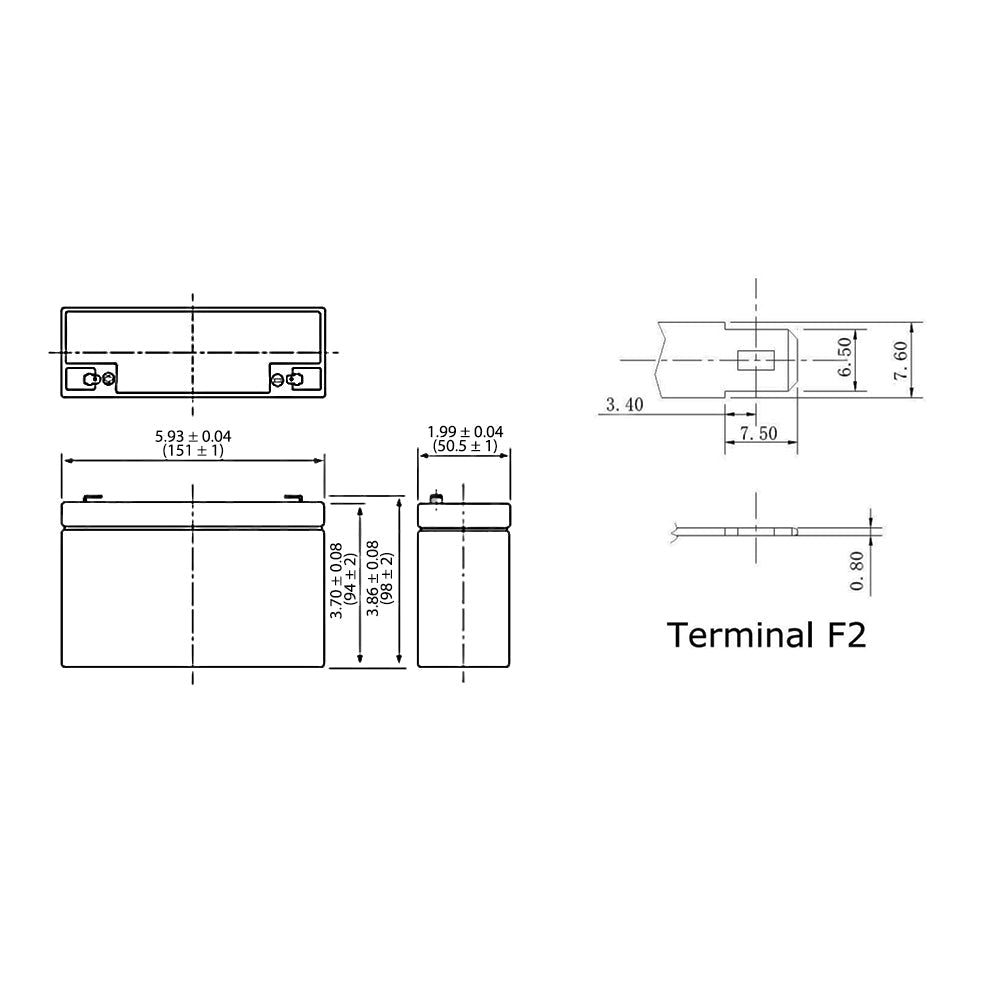

Terminal Type F2
Tab Size 0.25 inch
Container Material ABS(UL-94HB)
Length 6 inches [151mm]
Width 2 inches [50.5mm]
Height 3.7 inches [94mm]
Operating Temperature 25±3℃ (77±5℃F )
Compatible Terminal Adapter
BT-ADT2T1 Battery terminal adapter F2 female (0.25") to F1 male (0.1875")
Performance
Internal Resistance Approx.15m٦
Max. Discharge Current 180A(5S)
Rated Capacity 12.00AH (20hr, 1.75V/cell,25℃/77℃F)
11.31AH (10hr, 1.75V/cell,25℃/77℃F)
10.15AH (5hr, 1.75V/cell,25℃/77℃F)
9.23AH (3hr, 1.75V/cell,25℃/77℃F)
6.92AH (1hr, 1.75V/cell,25℃/77℃F)
Cycle Use Charge Current Less Than 0.25CA
7.05V~7.35V@25℃(77℃F)Temp. Coefficient -30mV/℃
Floating Use No limit on Initial Charging Current Voltage
6.75V~6.9V@25℃(77℃F)Temp. Coefficient -20mV/℃
Capacity affected by
Temperature
40℃ 103%
25℃ 100%
0℃ 86%
-15℃ 65%
Self-discharge 3 month Remaining capacity: 91%
6 month Remaining capacity:82%
12 month Remaining capacity:65%
Packaging Information
Product Weight 12.3 lbs [5.6kg]
Packaging Quantity 3 UPS Battery 6V 12amp
Warranty Information
Warranty 6 Months
Compatibility Information
Model Number APC Smart-UPS AP250
Tripp-Lite Office UPS BC450 LAN
Tripp-Lite Office UPS BC600 LAN
Tripp-Lite Office UPS BC500
