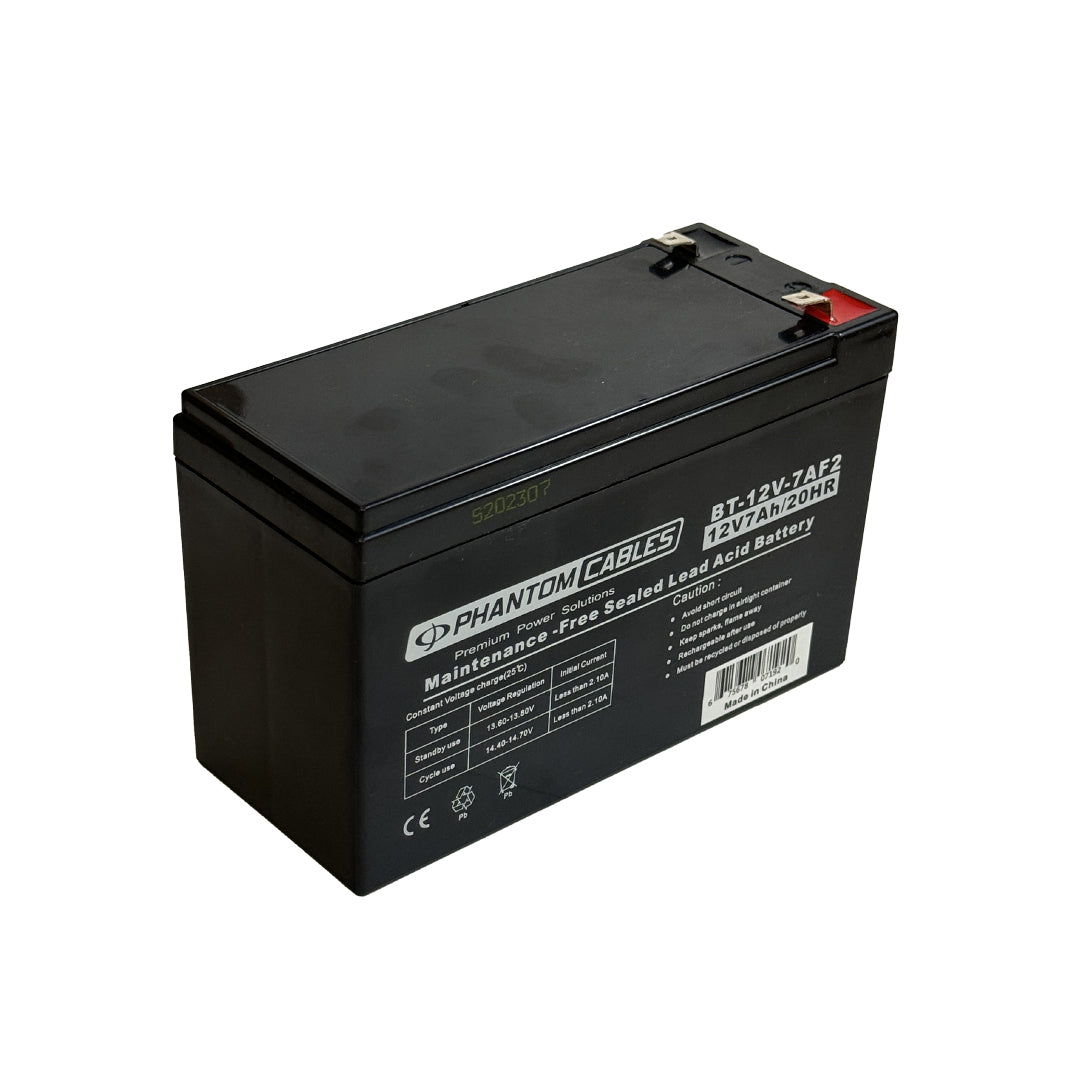

Sealed Lead Acid Battery 12V 7amp x 32

Sealed Lead Acid BatteriesSKU: BT-12V-7A-32PCS

Price:
Sale price$601.84 USD
Stock:
In stock

Description

This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.

Application

Specifications

Physical Characteristics
Type 32x UPS Replacement
Voltage 12V
Amps 7A

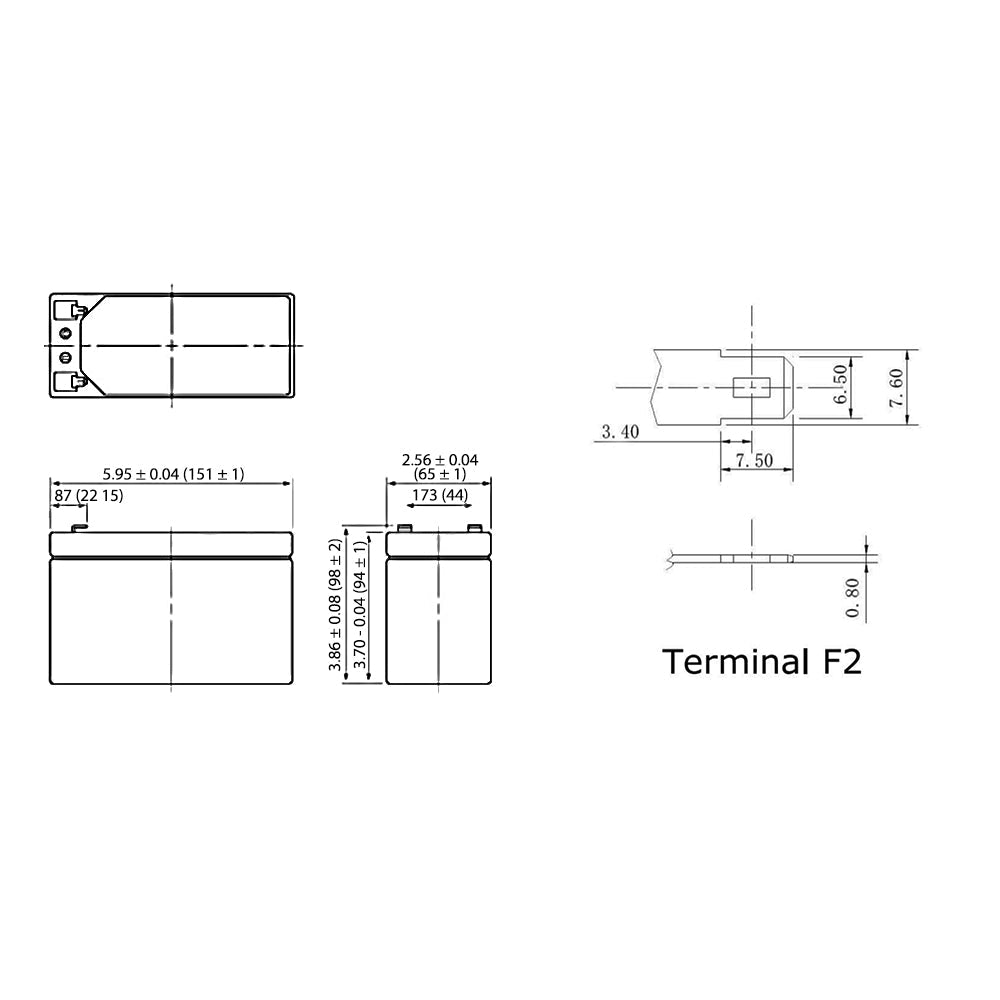

Terminal Type F2
Tab Size 0.25 inch
Container Material ABS(UL-94HB)
Length 5.94 inches [151mm]
Width 2.56 inches [65mm]
Height 3.70 inches [100mm]
Operating Temperature 25±3℃ (77±5℃F )
Compatible Terminal Adapter
BT-ADT2T1 Battery terminal adapter F2 female (0.25") to F1 male (0.1875")
Performance
Internal Resistance Approx.20mΩ
Max. Discharge Current 112.5A(5S)
Rated Capacity 7.00AH (20hr, 1.75V/cell,25℃/77℃F)
6.40AH (10hr, 1.75V/cell,25℃/77℃F)
5.95AH (5hr, 1.75V/cell,25℃/77℃F)
4.55AH (1hr, 1.75V/cell,25℃/77℃F)
Cycle Use Initial Charging Current less than 2.10A
14.1V~14.7V@25℃(77℃F)Temp. Coefficient -30mV/℃
Floating Use No limit on Initial Charging Current Voltage
13.5V~13.8V@25℃(77℃F)Temp. Coefficient -20mV/℃
Capacity affected by
Temperature
40℃ 102%
25℃ 100%
0℃ 85%
-15℃ 64%
Self-discharge 3 month Remaining capacity: 91%
6 month Remaining capacity:82%
12 month Remaining capacity:65%
Packaging Information
Product Weight 174.4 lbs [79.1kg]
Packaging Quantity 32 UPS Battery 12V 7amp
Warranty Information
Warranty 6 Months
Compatibility Information
Model Number Powerware UPS 9155 (Per Battery Module)
