Sealed Lead Acid Battery 12V 5amp x 10

Sealed Lead Acid BatteriesSKU: BT-12V-5A-10PCS

Price:
Sale price$152.69 USD
Stock:
In stock

Description

This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.

Application

Specifications

Physical Characteristics
Type 10x UPS Replacement
Voltage 12V
Amps 5A

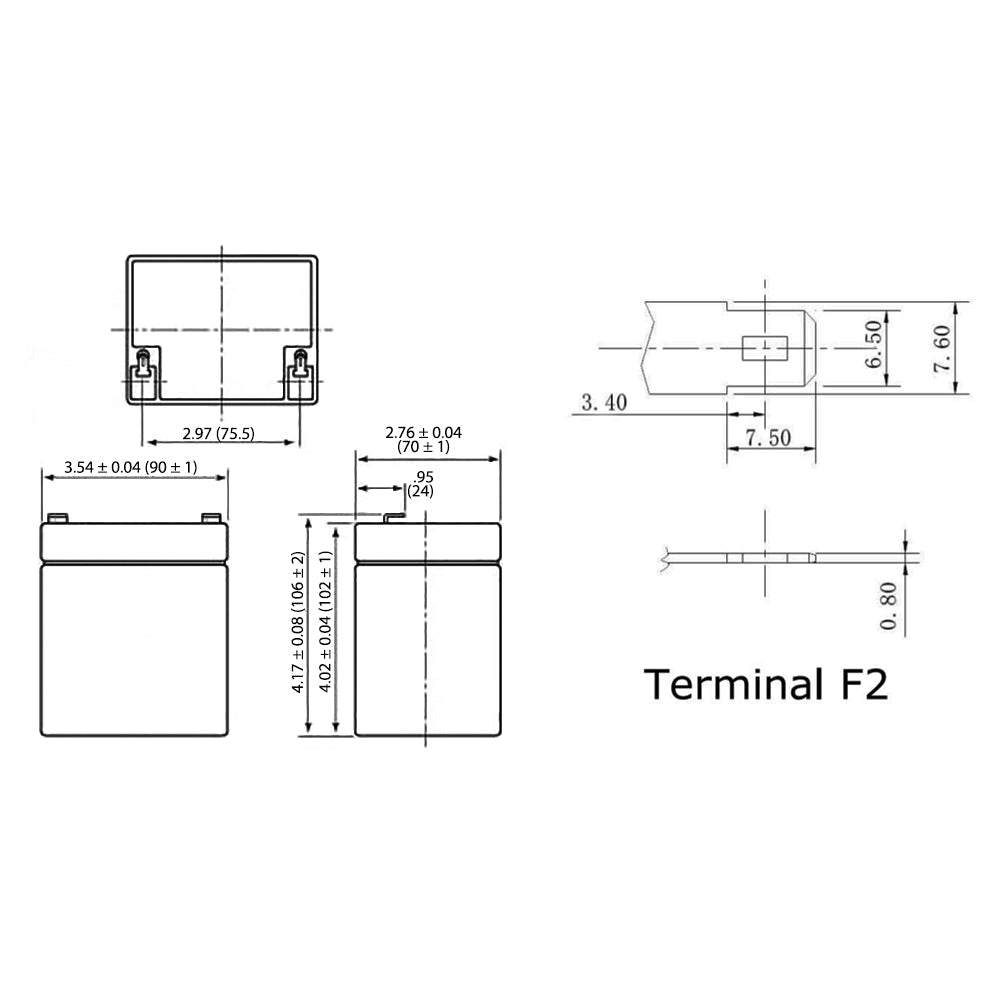

Terminal Type F2
Tab Size 0.25 inch
Container Material ABS(UL-94HB)
Length 3.54 inches [90mm]
Width 2.76 inches [70mm]
Height 3.98 inches [101mm]
Operating Temperature 25±3℃ (77±5℃F )
Compatible Terminal Adapter
BT-ADT2T1 Battery terminal adapter F2 female (0.25") to F1 male (0.1875")
Performance
Internal Resistance Approx.45m٦
Max. Discharge Current 75A(5S)
Rated Capacity 5.00AH (20hr, 1.75V/cell,25℃/77℃F)
Cycle Use Initial Charging Current less than1.80A
14.1V~14.7V@25℃(77℃F)Temp. Coefficient -30mV/℃
Floating Use No limit on Initial Charging Current Voltage
13.5V~13.8V@25℃(77℃F)Temp. Coefficient -20mV/℃
Capacity affected by
Temperature
40℃ 102%
25℃ 100%
0℃ 85%
-15℃ 64%
Self-discharge 3 month Remaining capacity: 91%
6 month Remaining capacity:82%
12 month Remaining capacity:64%
Packaging Information
Product Weight 37.5 lbs [17kg]
Packaging Quantity 10 UPS Battery 12V 5amp
Warranty Information
Warranty 6 Months
Compatibility Information
Model Number Prestige Full Pack
Powerware UPS 5125-2400RM
Powerware UPS 5125-3000RM
Powerware UPS 5125 RM (Rackmount)
Powerware UPS EBM-120RM
