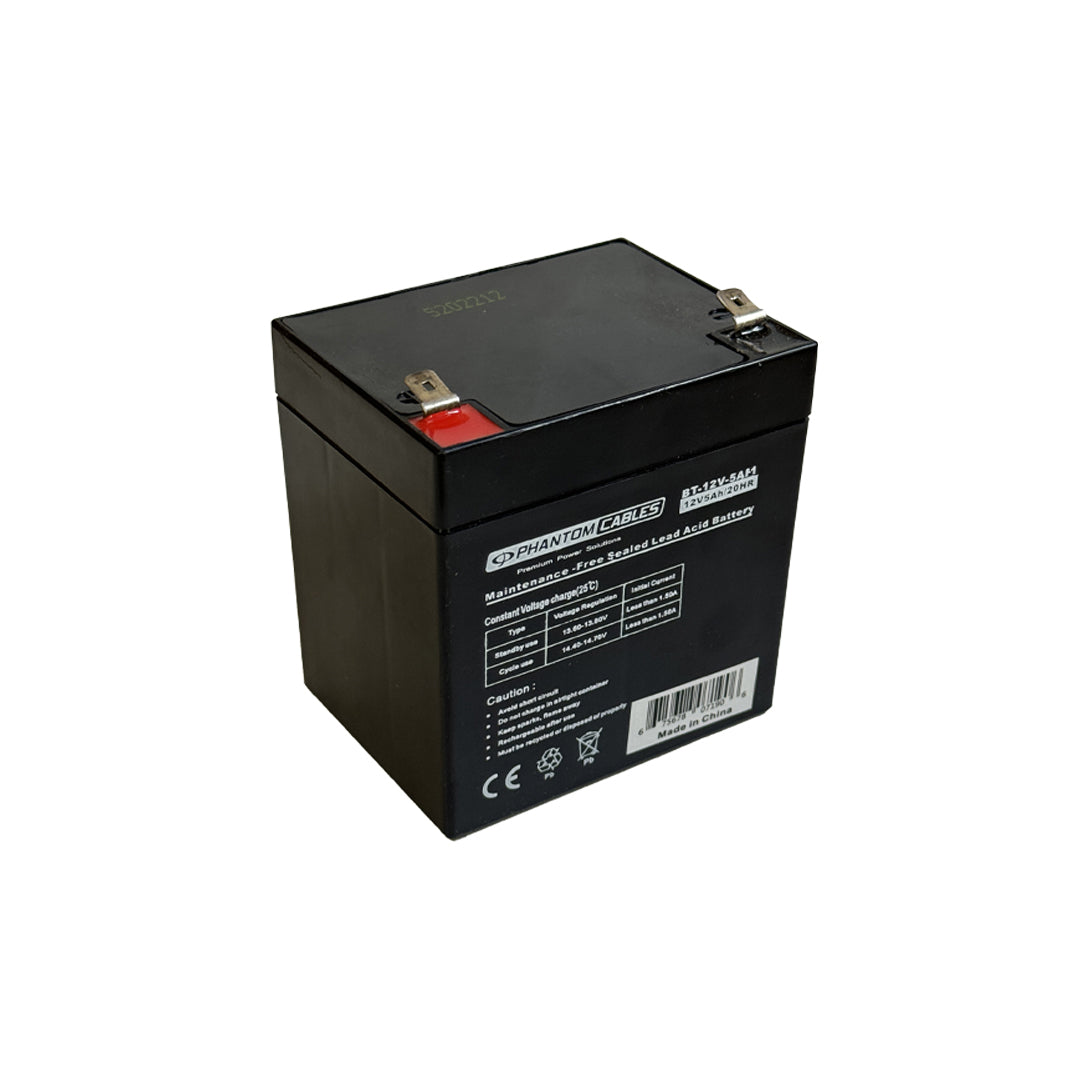

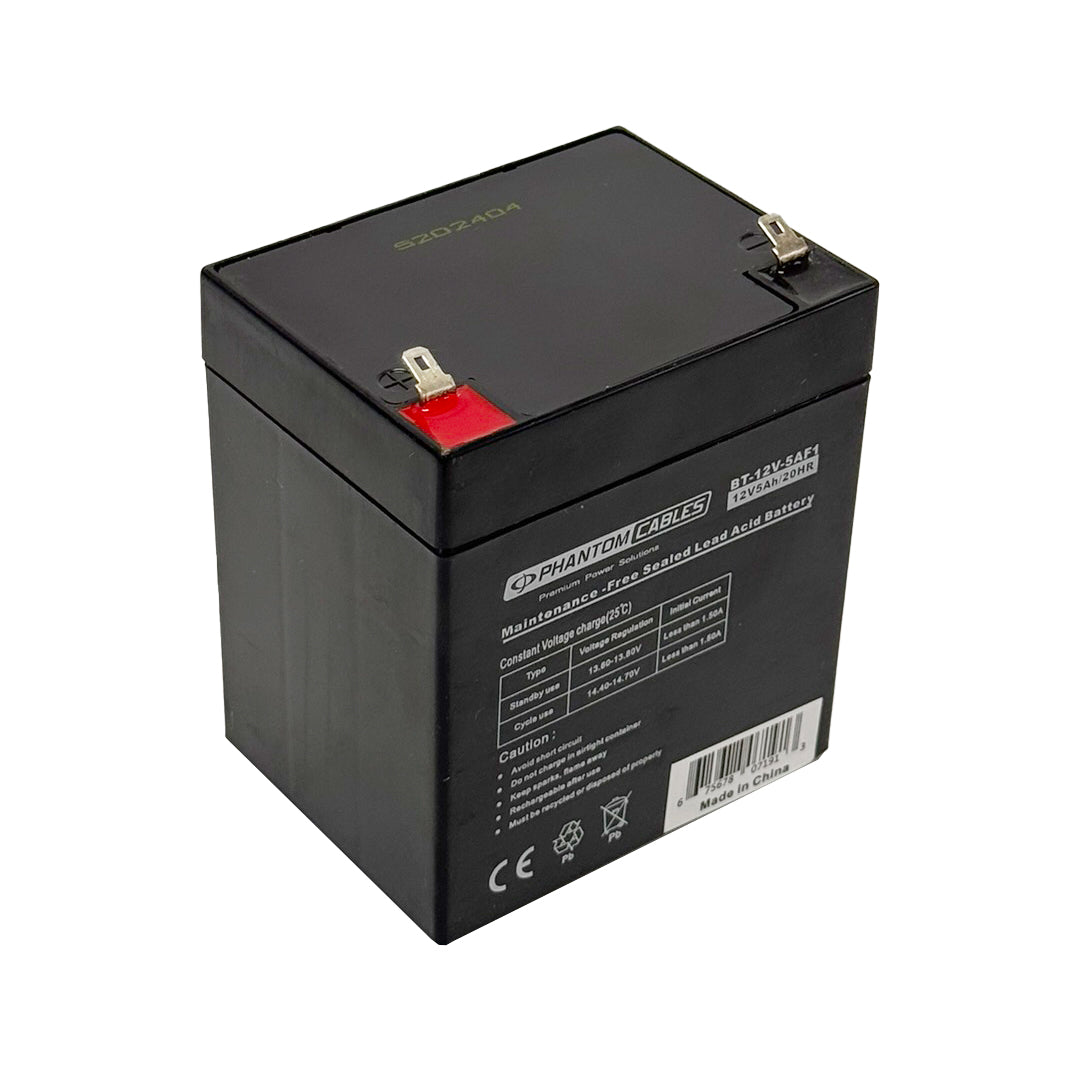

Sealed Lead Acid Battery 12V 5amp - F1 Terminals


Price:
Sale price$15.62 USD
Stock:
In stock

Description

This battery is typically used as a replacement battery in security alarm systems, fire alarm panels or security lighting applications.

Application

Specifications

Physical Characteristics
Type UPS Replacement
Voltage 12V
Amps 5A
Terminal Type F1
Tab Size 0.25 inch
Container Material ABS(UL-94HB)

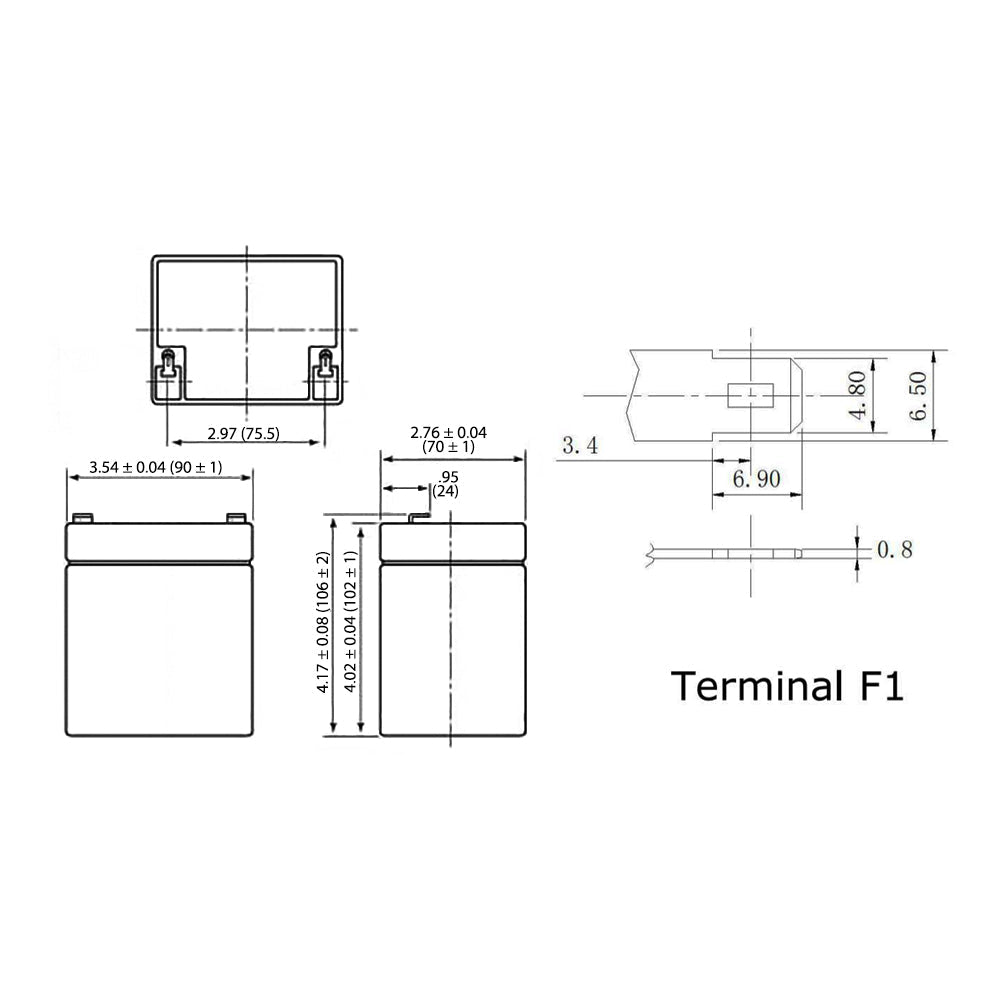

Length 3.54 inches [90mm]
Width 2.76 inches [70mm]
Height 3.98 inches [101mm]
Operating Temperature 25±3℃ (77±5℃F )
Performance
Internal Resistance Approx.45m٦
Max. Discharge Current 75A(5S)
Rated Capacity 5.00AH (20hr, 1.75V/cell,25℃/77℃F)
Cycle Use Initial Charging Current less than1.80A
14.1V~14.7V@25℃(77℃F)Temp. Coefficient -30mV/℃
Floating Use No limit on Initial Charging Current Voltage
13.5V~13.8V@25℃(77℃F)Temp. Coefficient -20mV/℃
Capacity affected by
Temperature
40℃ 102%
25℃ 100%
0℃ 85%
-15℃ 64%
Self-discharge 3 month Remaining capacity: 91%
6 month Remaining capacity:82%
12 month Remaining capacity:64%
Packaging Information
Product Weight 3.75 lbs [1.7kg]
Warranty Information
Warranty 6 Months
