Description

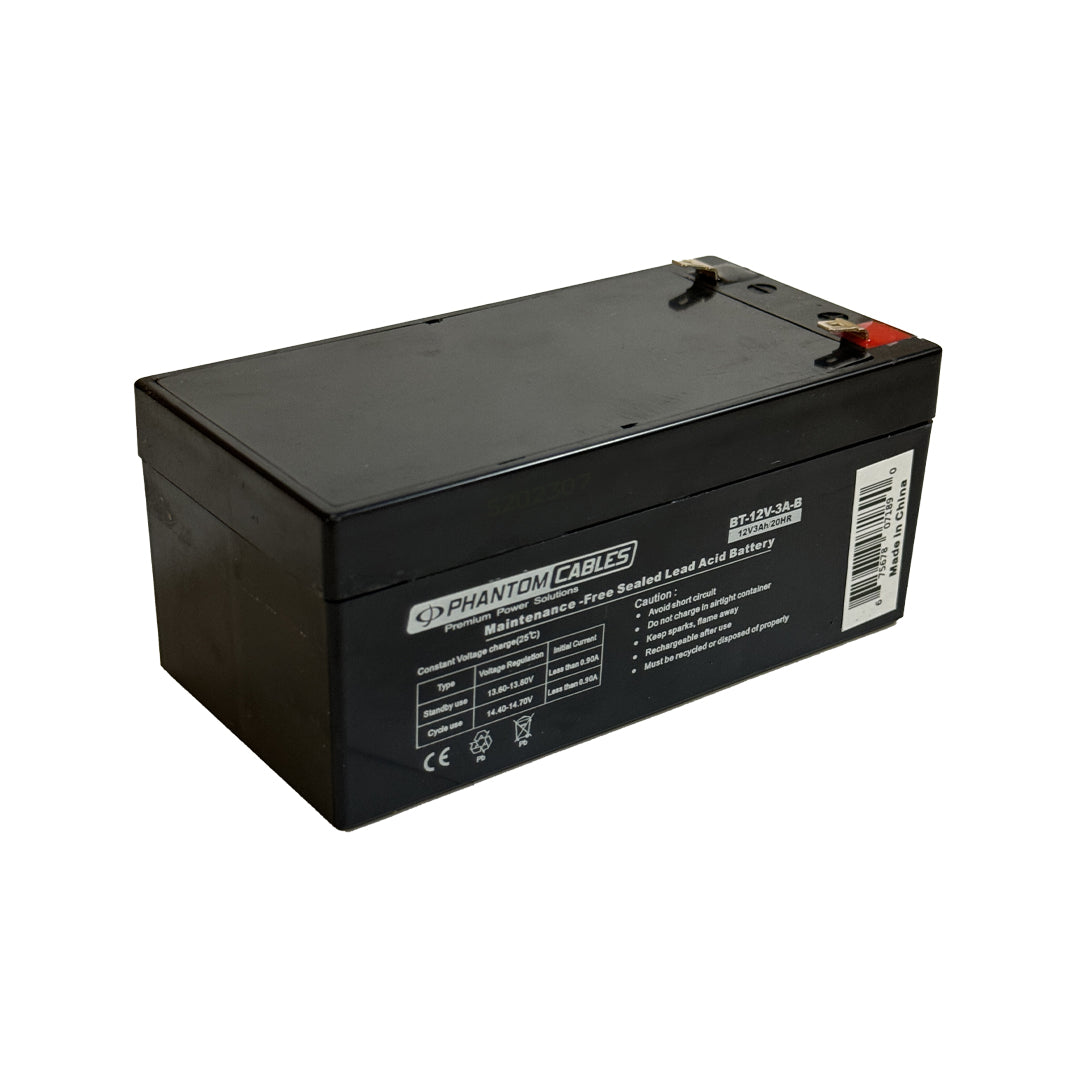

This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications. Note that the positive terminal is located on the left side of the battery.
Application
Specifications
| Physical Characteristics | |
|---|---|
| Type | UPS Replacement |
| Absorbed Glass Mat (AGM) | Yes |
| Voltage | 12V |
| Amps | 3A |
| Terminal Type | F1 |
| Tab Size | 0.1875 inch |
| Container Material | ABS(UL-94HB) |
| Length | 5.2 inches [133mm] |
| Width | 2.6 inches [66mm] |
| Height | 2.4 inches [61mm] |
| Operating Temperature | 25±3℃ (77±5℉ ) |
| Performance | |
| Internal Resistance | Approx.40mΩ |
| Max. Discharge Current | 60A(5S) |
| Rated Capacity | 3.30AH (20hr, 1.75V/cell,25℃/77℉) 3.11AH (10hr, 1.75V/cell,25℃/77℉) 2.79AH (5hr, 1.75V/cell,25℃/77℉) 2.55AH (3hr, 1.75V/cell,25℃/77℉) 1.90AH (1hr, 1.75V/cell,25℃/77℉) |
| Cycle Use | Charge Current Less Than 0.25CA 14.1V~14.7V@25℃(77℉)Temp. Coefficient -30mV/℃ |
| Floating Use | No limit on Initial Charging Current Voltage 13.5V~13.8V@25℃(77℉)Temp. Coefficient -20mV/℃ |
| Capacity affected by Temperature |
40°C 103% 25°C 100% 0°C 86% -15°C 65% |
| Self-discharge | 3 month Remaining capacity: 91% 6 month Remaining capacity:82% 12 month Remaining capacity:65% |
| Packaging Information | |
| Product Weight | 2.7 lbs [1.2kg] |
| Warranty Information | |
| Warranty | 6 Months |
Spec Sheets
Product Weights
| SKU | Weight | |
| BT-12V-3A-B | 2.7 lb |
