Sealed Lead Acid Battery 12V 12amp x 8

Sealed Lead Acid BatteriesSKU: BT-12V-12A-8PCS

Price:
Sale price$261.23 USD
Stock:
In stock

Description

This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.

Application

Specifications

Physical Characteristics
Type 8x UPS Replacement
Voltage 12V
Amps 12A

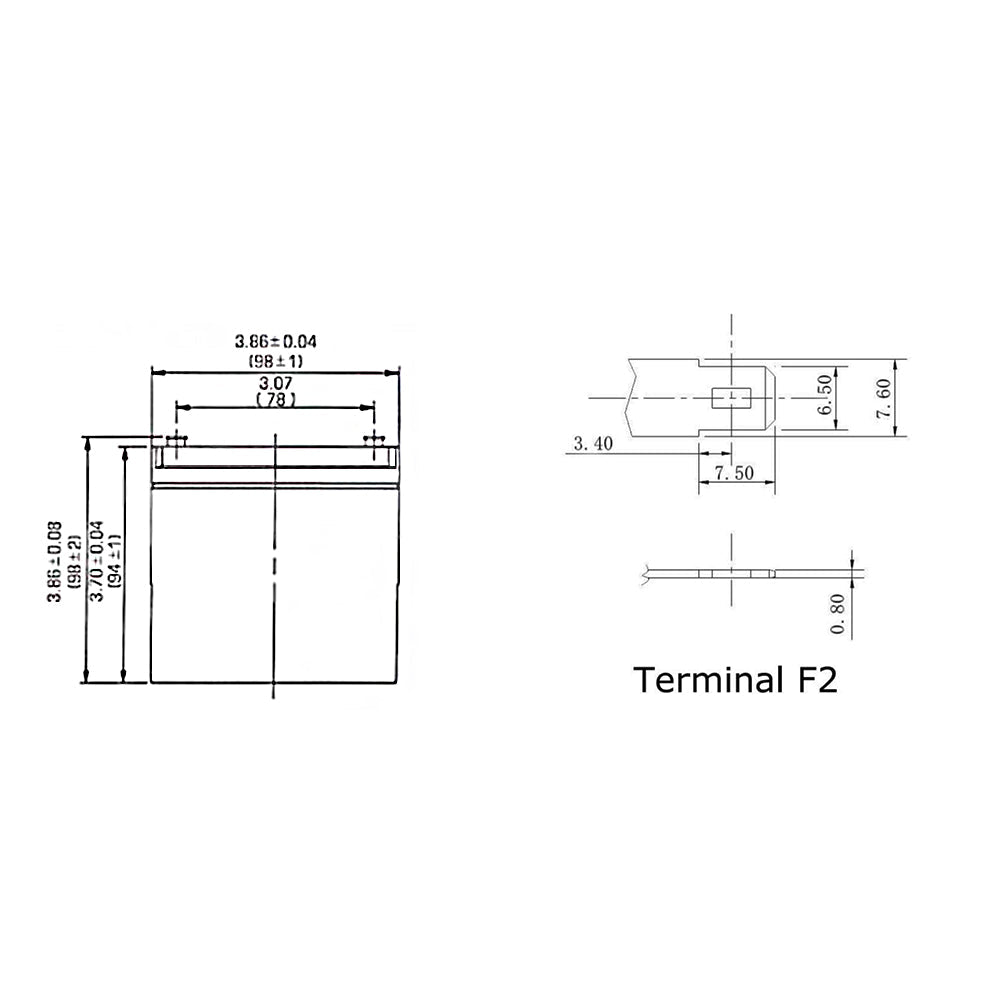

Terminal Type F2
Tab Size 0.25 inch
Container Material ABS(UL-94HB)
Length 3.9 inches [98mm]
Width 6 inches [151mm]
Height 3.7 inches [94mm]
Operating Temperature 25±3℃ (77±5℃F )
Compatible Terminal Adapter
BT-ADT2T1 Battery terminal adapter F2 female (0.25") to F1 male (0.1875")
Performance
Internal Resistance Approx.90m٦
Max. Discharge Current 117A(5S)
Rated Capacity 12.0AH (20hr, 1.75V/cell,25℃/77℃F)
11.5AH (10hr, 1.75V/cell,25℃/77℃F)
11.0AH (5hr, 1.75V/cell,25℃/77℃F)
10.3AH (3hr, 1.75V/cell,25℃/77℃F)
7.75AH (1hr, 1.75V/cell,25℃/77℃F)
Cycle Use Charge Current Less Than 0.25CA
14.1V~14.7V@25℃(77℃F)Temp. Coefficient -30mV/℃
Floating Use No limit on Initial Charging Current Voltage
13.5V~13.8V@25℃(77℃F)Temp. Coefficient -20mV/℃
Capacity affected by
Temperature
40℃ 103%
25℃ 100%
0℃ 86%
-15℃ 65%
Self-discharge 3 month Remaining capacity: 91%
6 month Remaining capacity:82%
12 month Remaining capacity:65%
Packaging Information
Product Weight 65.6 lbs [30kg]
Package Quantity 8 UPS Battery 12V 12amp
Warranty Information
Warranty 6 Months
Compatibility Information
Model Number APC Back-UPS BK1000
APC Back-UPS BP1000
APC Back-UPS SUVS650
APC Back-UPS SUVS1000
APC Smart-UPS SU1000
APC Smart-UPS SU1000 RM
APC Smart-UPS SU1000BX120
APC Smart-UPS SU1000NET
APC Smart-UPS SU1500RMX155
APC Smart-UPS SU1000X127
APC Smart-UPS SU1000X93
APC Smart-UPS SUA1000
APC Smart-UPS SUVS1000
APC Smart-UPS SU1000RM
APC Smart-UPS SU1000RMNET
Belkin UPS F6C100
