Overview

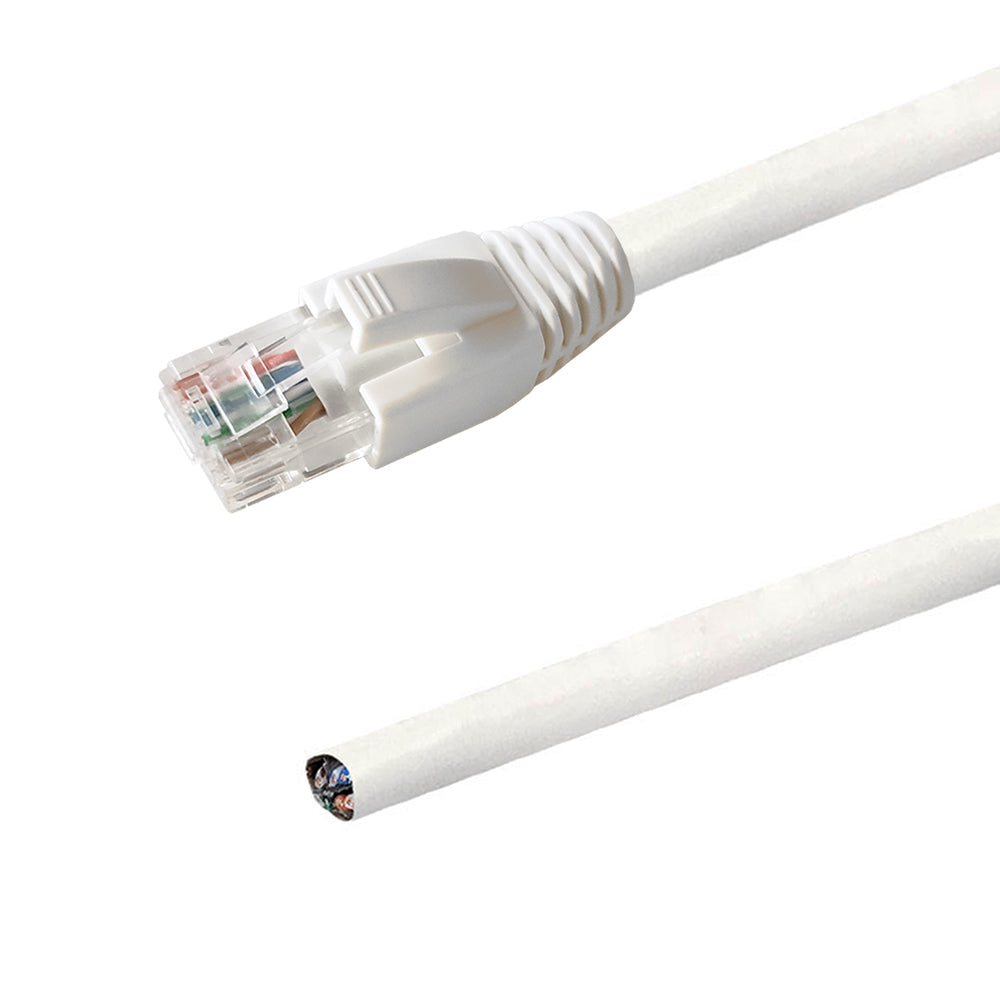

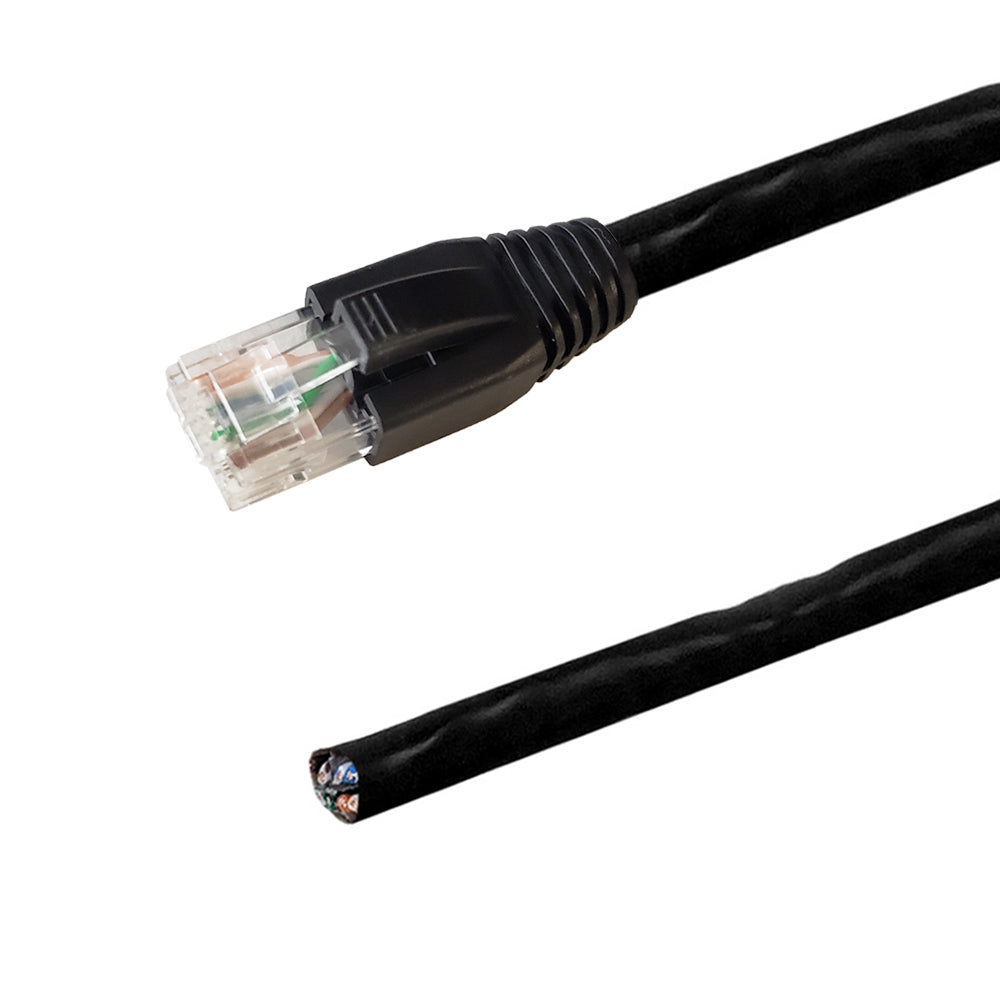

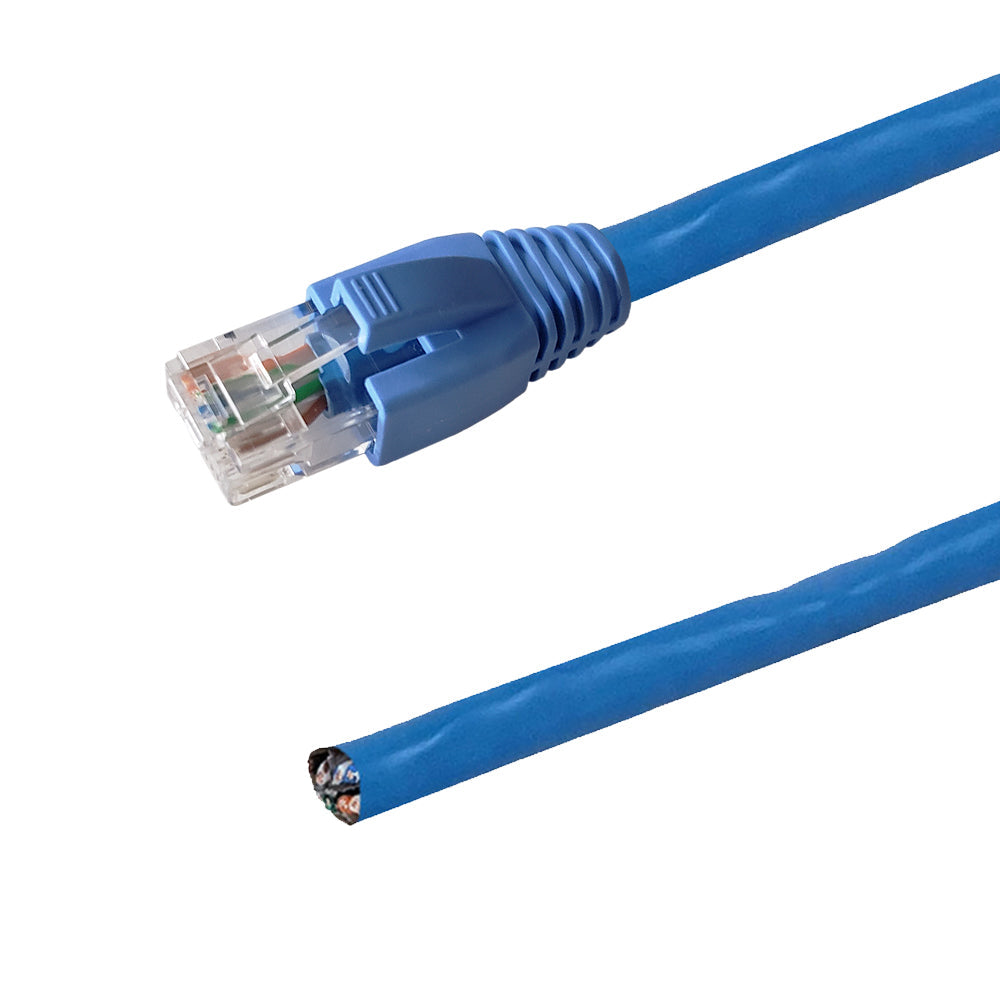

This CAT6A ethernet cable consists of a RJ45 male on one end and has no termination on the other. The un-terminated end is typically used for punching down onto a terminal block and the RJ45 end can be connected to a patch panel or pass-through coupler.
|
|
100% Copper Solid ConductorsThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time.
|
Application
Specifications
| Physical Characteristics | |
|---|---|
| Colors Available | Black/Blue/White |
| Cable Diameter | 7.60mm |
| Wire Gauge | 23AWG Solid |
| Color Code | 568A/568B |
| Shielding | None |
| Pairs | 4 |
| Fire Rating | CMR [Riser Rated] |
| Temperature Rating | -20ºC ~ 75ºC |
| Jacket Type | PVC |
| Connectors | |
| Connector A | RJ45 Long Body Male |
| Connector B | Un-terminated |
| Performance | |
| Frequency | 550 MHz |
| Approvals | |
| c(ETL)us | Compliant |
| ISO/IEC 9001 | Compliant |
| ANSI/TIA-568.C.2 | Compliant |
| Environmental | |
| RoHS | Compliant |
| Conflict Minerals Compliant | Compliant |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 2-4 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
