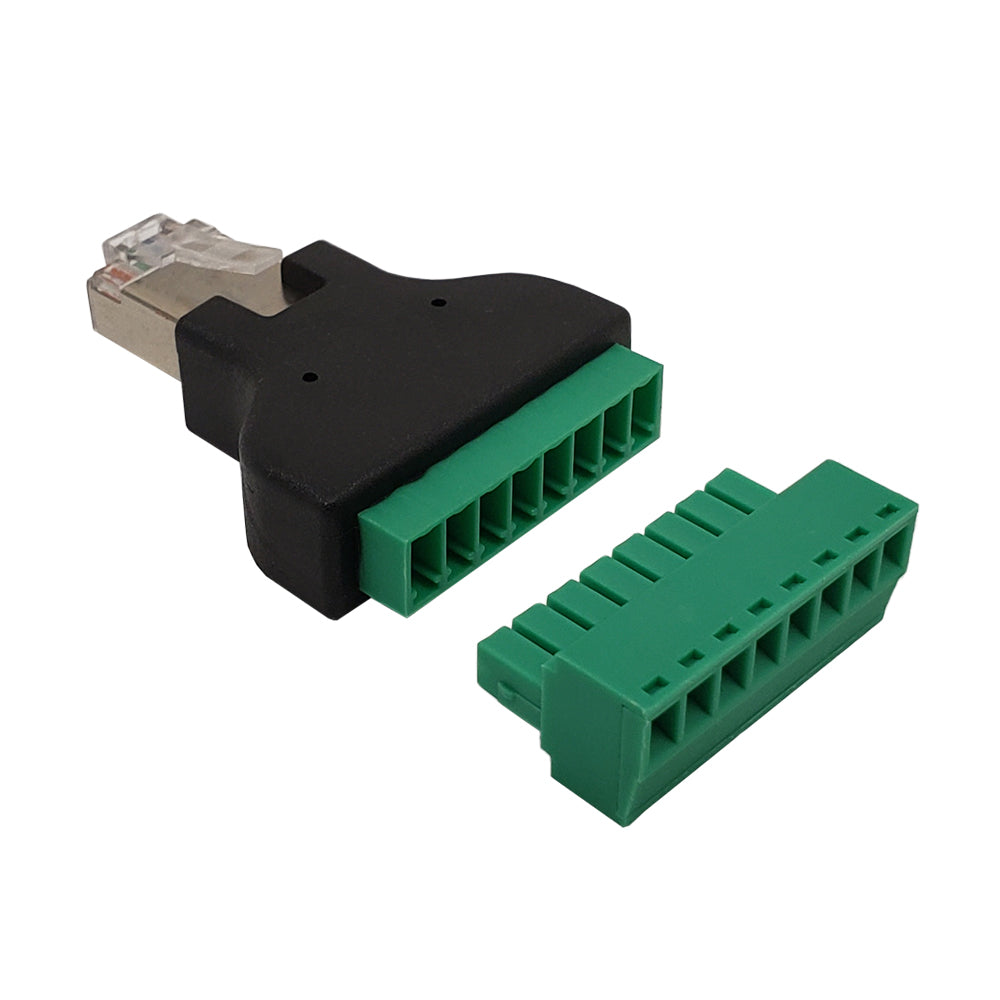

This connector consists of a RJ45 male on one endand eight screw terminals on the other end. It is typically used in a varietyof PoE and CCTV applications. The terminal block is removable for easiertermination.
| Physical Characteristics |
|---|
| Color |
Black |
| Contact Plating |
Gold |
| Attachment Method |
Screw Down |
| Wire Gauge |
28AWG to 16AWG |
| Pinout |
| RJ45 |
Terminal Block |
1
2
3
4
5
6
7
8
|
1 (+)
2 (-)
3 (+)
4 (-)
5 (+)
6 (-)
7 (+)
8 (-)
|
|
| Connector(s) |
|---|
| Connector A |
1 - RJ45 (8P8C) Male |
| Connector B |
8 - Screw Down Terminals |
| Environmental |
|---|
| RoHS |
Yes |
| Packaging Information |
|---|
| Package Quantity |
1 |
| Product Weight |
0.02 lbs [0.01 kg] |
